Five-axis machining center U400 from PRIMINER

Vertical 5-axis CNC machining center U400.

Movements along the XYZ axis700550500 mm
Maximum lengthwidth of the workpiece400400 mm
Idle (rapid) feed along the XYZ axis484848 m/min
Distance from the table surface to the spindle nose120-620 mm
Idle (rapid) feed along the AC axis5060 rpm
Spindle speed12,000 rpm
Spindle power9-22 kW
Spindle taperSK40
Diameter of the working surface of the table400 mm
Table load capacity255 mm
Number of T-slots on the table8
Number of tools40 pcs
Maximum tool diameter80 mm
Maximum length (overhang) of the tool300 mm
Maximum weight of a single tool8 kg
Positioning accuracy XYZ888 µm
Parameters2,600 x 3,200 x 3,150 mm
Weight7,000 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The U400 model from PRIMINER is a high-quality milling machine that is perfectly suited for various tasks in industry and manufacturing. The machine features high precision and reliability, making it an ideal choice for professionals.

One of the most important features of the U400 model is its high productivity. With a powerful motor and advanced technologies, the machine can process a variety of materials such as metal, wood, plastic, and more. This allows for high cutting speeds and increased work efficiency.

Additionally, the U400 model has a simple and user-friendly interface, making it easy to use. The machine is equipped with intuitive controls that allow for quick and easy adjustments to the desired operating mode.

Another advantage of the U400 model is its high accuracy. The machine boasts a high level of precision and allows for the production of high-quality parts with minimal deviations. This is especially important for manufacturing complex and precise products.

Finally, the U400 from PRIMINER features a compact and ergonomic design, allowing it to be used even in small spaces. It is also equipped with various additional options, such as a cooling system that helps reduce temperature during operation and enhance its productivity.

Overall, the U400 model from PRIMINER is an excellent choice for professionals who need a high-quality and reliable milling machine. Its high productivity, precision, and ease of use make it an ideal tool for addressing various tasks in industry and manufacturing.

Movements along the XYZ axis700550500 mm
Maximum lengthwidth of the workpiece400400 mm
Idle (rapid) feed along the XYZ axis484848 m/min
Distance from the table surface to the spindle nose120-620 mm
Idle (rapid) feed along the AC axis5060 rpm
Spindle speed12,000 rpm
Spindle power9-22 kW
Spindle taperSK40
Diameter of the working surface of the table400 mm
Table load capacity255 mm
Number of T-slots on the table8
Number of tools40 pcs
Maximum tool diameter80 mm
Maximum length (overhang) of the tool300 mm
Maximum weight of a single tool8 kg
Positioning accuracy XYZ888 µm
Parameters2,600 x 3,200 x 3,150 mm
Weight7,000 kg
Design Features
Coolant Gun
In this model, a coolant gun is added for chip removal. The gun is pneumatic (air).

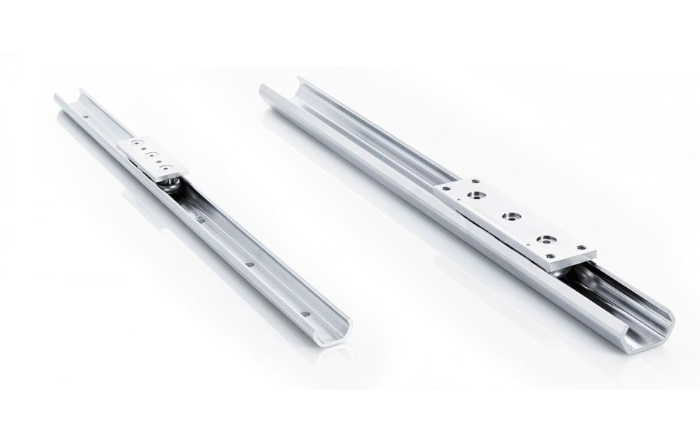

Guides
The guides are presented as roller bearings, which favorably contribute to fast processing of products and less wear of the machine during operation.

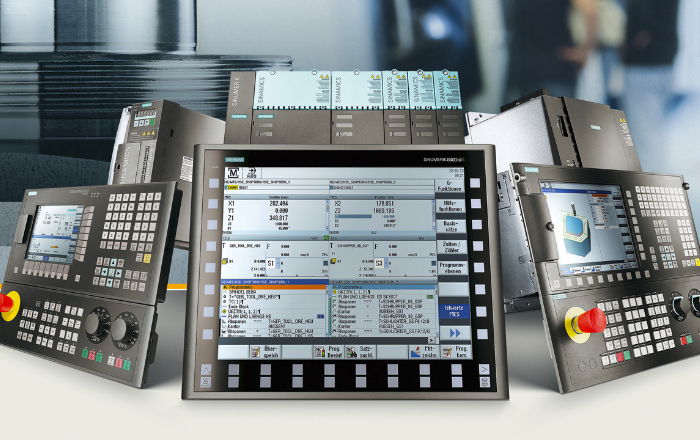

CNC System
In the basic configuration, the CNC system is TNC 620. Optional equipment 1 - TNC 640. Optional equipment 2 - 828D.
Basic equipment
Ethernet interface, USB, RS 232. Direct threading (direct thread cutting with a tap). Remote manual control panel (handwheel). Free M-functions. Safety during emergency power shutdown. Canopy over the machine working area.
Additional options
Tropical package (active cooling unit for the electrical cabinet). Oil separator. Telescopic protection for guides and ball screws. Direct measurement systems for linear (circular) axes X, Y, Z (A, B, C) - optical or magnetic scales. Compressed air supply to measurement systems. Probe for part measurement (setup), for tool referencing (and measurement). Tool breakage monitoring. Separate filter for cutting fluid, paper / non-woven fabric.
