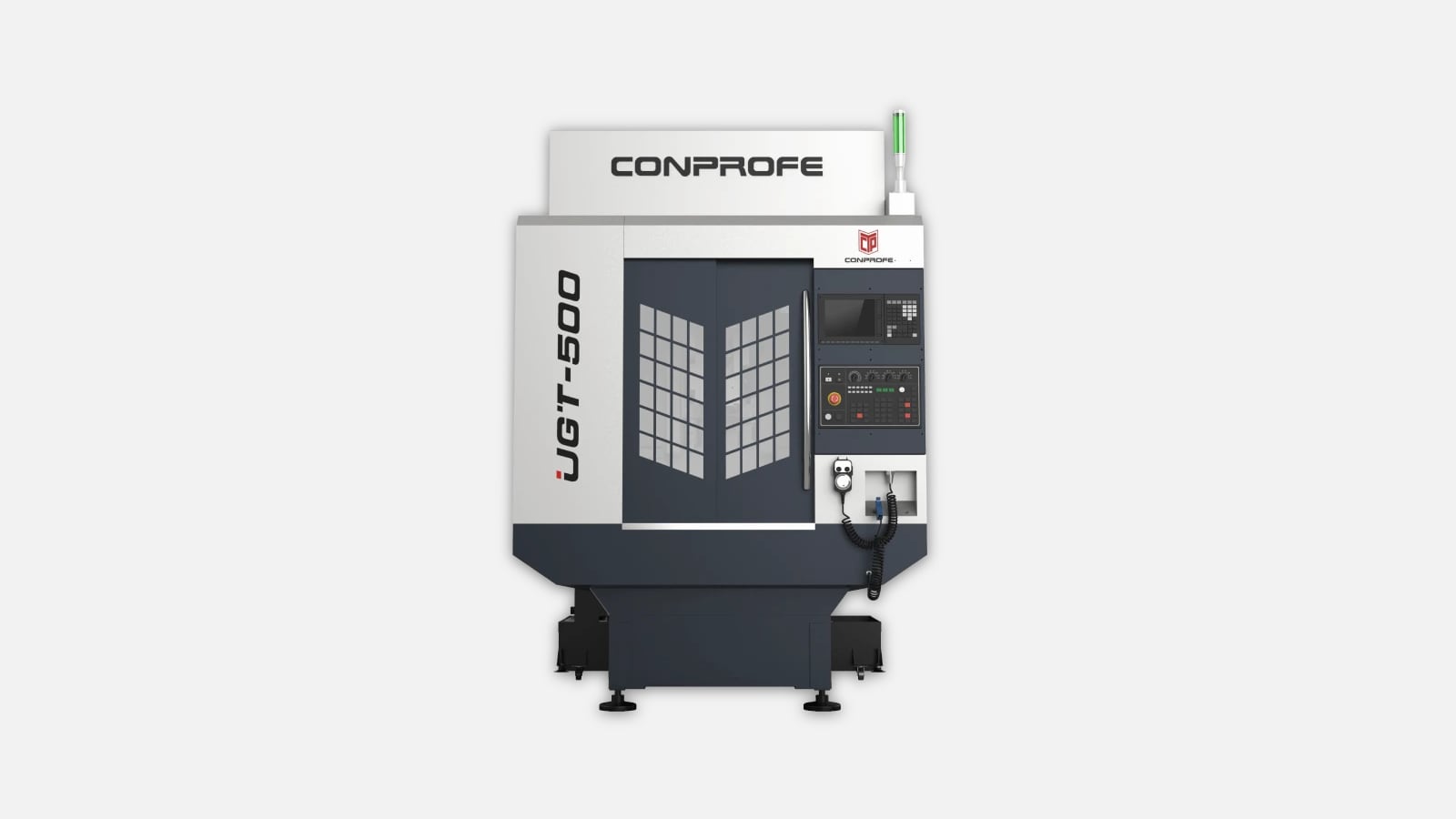

Professional Milling Machine UGT-500

3 Axis CNC Machining Center CONPROFE UGT-500.

Number of axes3
Travel X500 mm
Travel Y400 mm
Travel Z360 mm
Rotation speed24,000 rpm
Powermax. 5.5 kW
Feed rate on X and Y axes48,000 mm/min
Table load capacity250 kg
Positioning accuracy0.005 mm
Repeatability0.003 mm
Weight2,300 kg
Parameters1600x2155x2565 mm
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

UGT-500 is a powerful milling machine from CONPROFE, capable of processing various materials including metal, plastic, and wood. The machine features high processing accuracy and fast movement, making it an ideal choice for industrial production.

This machine is equipped with a sturdy and reliable frame that ensures stability and precision during processing. Thanks to high-quality components and precise design, the UGT-500 delivers high performance and durability.

The UGT-500 is equipped with advanced software that allows the user to easily operate the machine and configure it for processing different materials. The machine also features a large work table, enabling the processing of larger parts.

To ensure operator safety, the machine is equipped with a modern automatic stop system in case of unforeseen situations. Additionally, the UGT-500 has a low noise and vibration level, allowing for comfortable working conditions.

Overall, the UGT-500 is a high-tech and multifunctional milling machine that provides precise and efficient processing of various materials. It is perfectly suited for large-scale industrial production, as well as for those seeking a quality machine for their creative projects.

Number of axes3
Travel X500 mm
Travel Y400 mm
Travel Z360 mm
Rotation speed24,000 rpm
Powermax. 5.5 kW
Feed rate on X and Y axes48,000 mm/min
Table load capacity250 kg
Positioning accuracy0.005 mm
Repeatability0.003 mm
Weight2,300 kg
Parameters1600x2155x2565 mm
Design Features
Structure
Fixed frame structure with movable table.
Spindle Direction
Vertical spindle orientation ensures tool movement for part machining and detailed work.
Front End of Spindle
The front end of the BT 30 spindle - a reliable and high-precision tool holder, ensuring stability and accuracy in material processing.
MQL Function
The milling machine features ultrasonic and through MQL spindle functions as optional capabilities, enhancing its functionality and contributing to more efficient material processing.
Adjustable Part

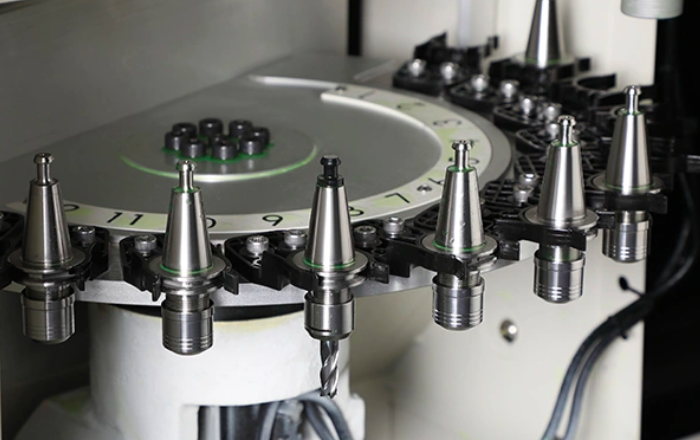

The tool magazine storage capacity can be customized (21/26/30/36 pcs of tools). The distance from the spindle nose to the table can be adjusted (200-560mm/270-630mm/340-700mm).
