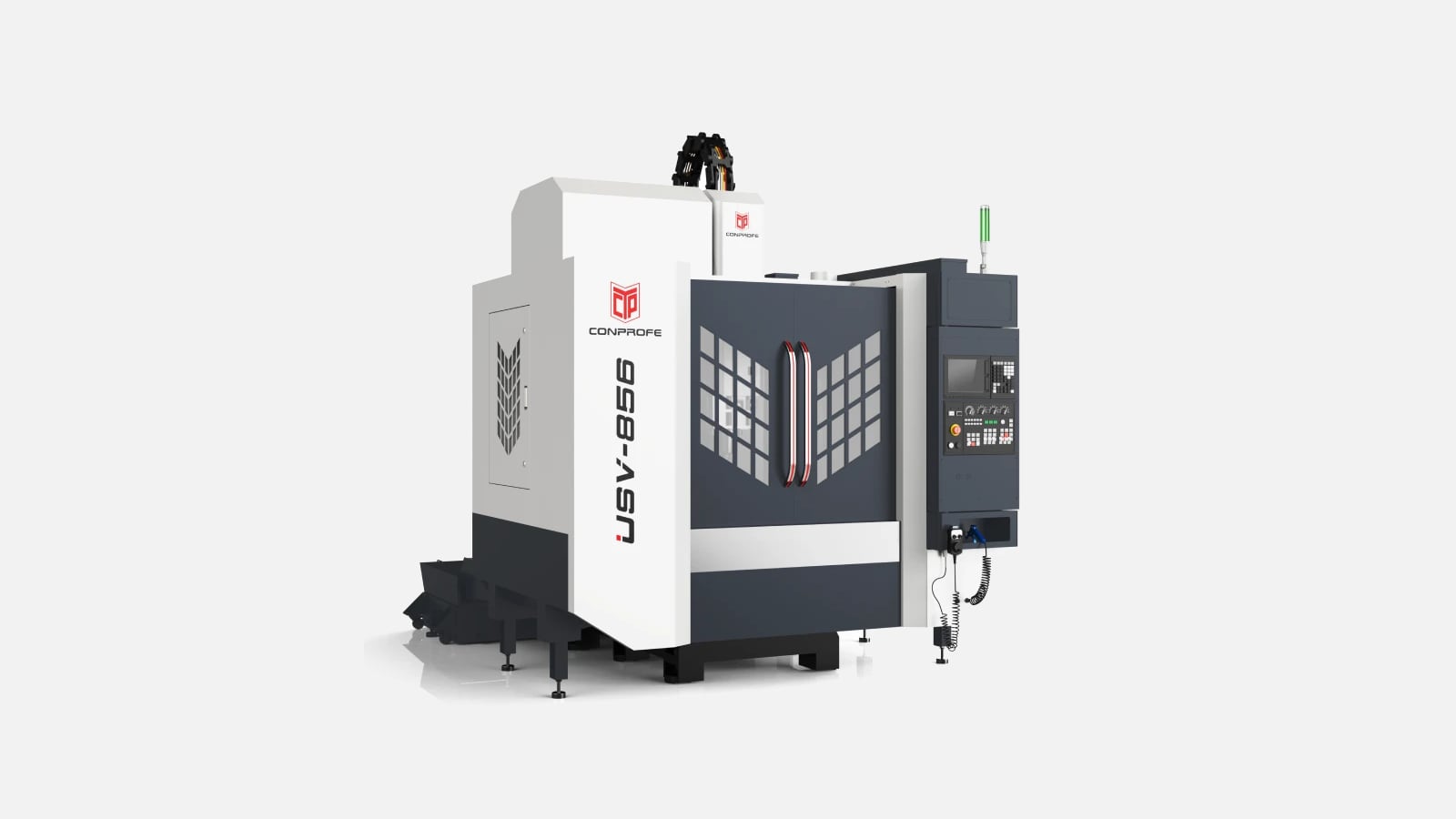

Ultrasonic CNC Machining Center USV-856

Ultrasonic CNC Machining Center with 3 Axes USV-856.

Travel X800 mm
Travel Y550 mm
Travel Z600 mm
Spindle speed12,000 RPM
Power7.5 kW, 11 kW
Feed rate in axes XYZ48,000 mm/min
Table load capacity500 kg
Weight of tools (max)8 kg
Positioning accuracy0.008 mm
Repeatability0.005 mm
Tool change time1.6 s
Mass5,500 kg
Parameters2310x3160x3000 mm
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

CONPROFE USV-856 is an excellent choice for anyone looking for a high-performance milling machine for industrial or manufacturing use. This model features a variety of functions that allow for a wide range of tasks to be performed with high precision and efficiency.

The first advantage of the USV-856 is its high spindle speed. The spindle speed can reach up to 10,000 revolutions per minute, enabling quick and precise machining of various materials, including metal, wood, and plastic. This makes this model an ideal choice for producing high-precision components.

The second advantage of the USV-856 is its high accuracy and reliability. The machine table is designed for high precision, allowing for parts to be machined with great accuracy and repeatability. Additionally, the machine is equipped with a reliable automatic lubrication system that ensures long-lasting and uninterrupted operation.

The third advantage of the USV-856 is its versatility and flexibility. The machine can be used to process a wide variety of materials, including metal, wood, plastic, and others. Furthermore, the machine has the capability to process parts of different sizes and shapes, making it an ideal choice for producing a multitude of different products.

The fourth and final advantage of the USV-856 is its ease of use. The machine comes with an intuitive interface and straightforward controls, allowing operators to quickly master its operation. In addition, the machine is equipped with an automatic tool height adjustment system, which enables quick tool changes and achieves high efficiency.

Overall, the CONPROFE USV-856 is an outstanding choice for anyone seeking a high-performance and reliable machine for material processing. Its high speed and precision, versatility and flexibility, as well as ease of use, make it an ideal option for manufacturing various products.

Travel X800 mm
Travel Y550 mm
Travel Z600 mm
Spindle speed12,000 RPM
Power7.5 kW, 11 kW
Feed rate in axes XYZ48,000 mm/min
Table load capacity500 kg
Weight of tools (max)8 kg
Positioning accuracy0.008 mm
Repeatability0.005 mm
Tool change time1.6 s
Mass5,500 kg
Parameters2310x3160x3000 mm
Design Features
Structure
The ultrasonic machine is equipped with a fixed frame, a movable table, and a stand.
Front spindle end
This model has a front spindle end BT 40, BBT40.

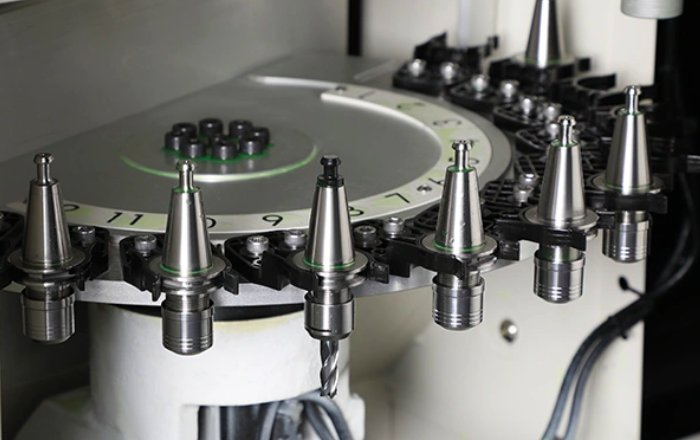

Number of tools
The tool magazine with 24 positions for tools is equipped with a tool lever, and the tool change time is 1.5 seconds.
Chip removal
Inclined design at the bottom of the machine with a built-in automatic flushing device for chip removal; rear water tank design.
Spindle
Front labyrinth design, with a central air blowing device/function, all spindles are equipped with high-speed spindle units with direct connection.
