Milling Machining Center DT800 from US WHEELER

3-axis CNC milling machining center DT800.

Table size1000×500 mm
Max. load on the table300 kg
Distance from spindle to table160 – 490 mm
Distance from spindle to column546 mm
Travel on XYZ axis800/500/330 mm
Maximum feed rate on X / Y / Z axis48000 mm/min
Type of guides on X / Y / Z axisPMI/THK rolling ball guide (35(4) mm)
Spindle speed50 – 20000 rpm
Spindle motor power3.7 (5.5) kW
Spindle taperBT30
Number of tools21 pcs
Maximum tool weight3 kg
Positioning accuracy0.005 mm (ISO standard)
Repeatability accuracy0.003 mm (ISO standard)
Parameters2480×2540×2440 mm
Weight4300 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The DT800 model from US WHEELER is a high-performance milling machine designed for processing various materials, including metal, plastic, wood, and more. It is equipped with a high-precision motor and spindle, ensuring stable operation at high speeds and accuracy in machining.

One of the main advantages of the DT800 model is its large working surface, allowing for the processing of large parts and workpieces. Additionally, the machine is equipped with an automatic tool change system, which simplifies the operator’s job and increases productivity.

The DT800 model also features a high degree of automation and control, thanks to its CNC (computer numerical control) capability. This allows for quick switching between different machining programs and achieving high precision and repeatability in the process.

Finally, the machine has a convenient and ergonomic design, providing comfortable operation for the operator over extended periods. It is also easy to maintain and care for, allowing it to remain in excellent condition for many years of use.

Overall, the DT800 model is a reliable and efficient milling machine that can meet the needs of both small and large manufacturing enterprises.

Table size1000×500 mm
Max. load on the table300 kg
Distance from spindle to table160 – 490 mm
Distance from spindle to column546 mm
Travel on XYZ axis800/500/330 mm
Maximum feed rate on X / Y / Z axis48000 mm/min
Type of guides on X / Y / Z axisPMI/THK rolling ball guide (35(4) mm)
Spindle speed50 – 20000 rpm
Spindle motor power3.7 (5.5) kW
Spindle taperBT30
Number of tools21 pcs
Maximum tool weight3 kg
Positioning accuracy0.005 mm (ISO standard)
Repeatability accuracy0.003 mm (ISO standard)
Parameters2480×2540×2440 mm
Weight4300 kg
Design Features
FANUC Series 0i-MF Features
Inclined working plane. Nano-smoothing. 3-D manual feed. Cutter radius compensation. Threading and small diameter hole drilling cycle. G54-G59 Plus 48 additional workpiece coordinate offsets. 400 pairs of tool removal sets. Spiral interpolation.
Compact Design
The machine combines a sturdy spindle and compact design with a full set of options to meet many manufacturing tasks. The main column has a box structure.
Basic configuration
The vertical milling center US WHEELER DT800 is equipped as standard with a FANUC CNC controller. The machine features a high-speed spindle from Kenturn (Taiwan) with speeds of 50…12000 RPM, with an option for 20000 RPM.
Additional options

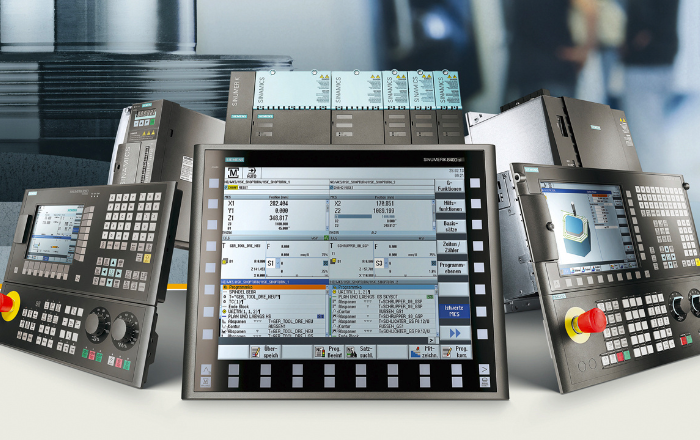

Options include an automatic tool changer for 22 or more tools, as well as a tool magazine loading station, various chip removal options such as a hinged chip conveyor, a filtration tray, and a high-pressure coolant supply system. CNC options include Mitsubishi, GSK, or Siemens.
