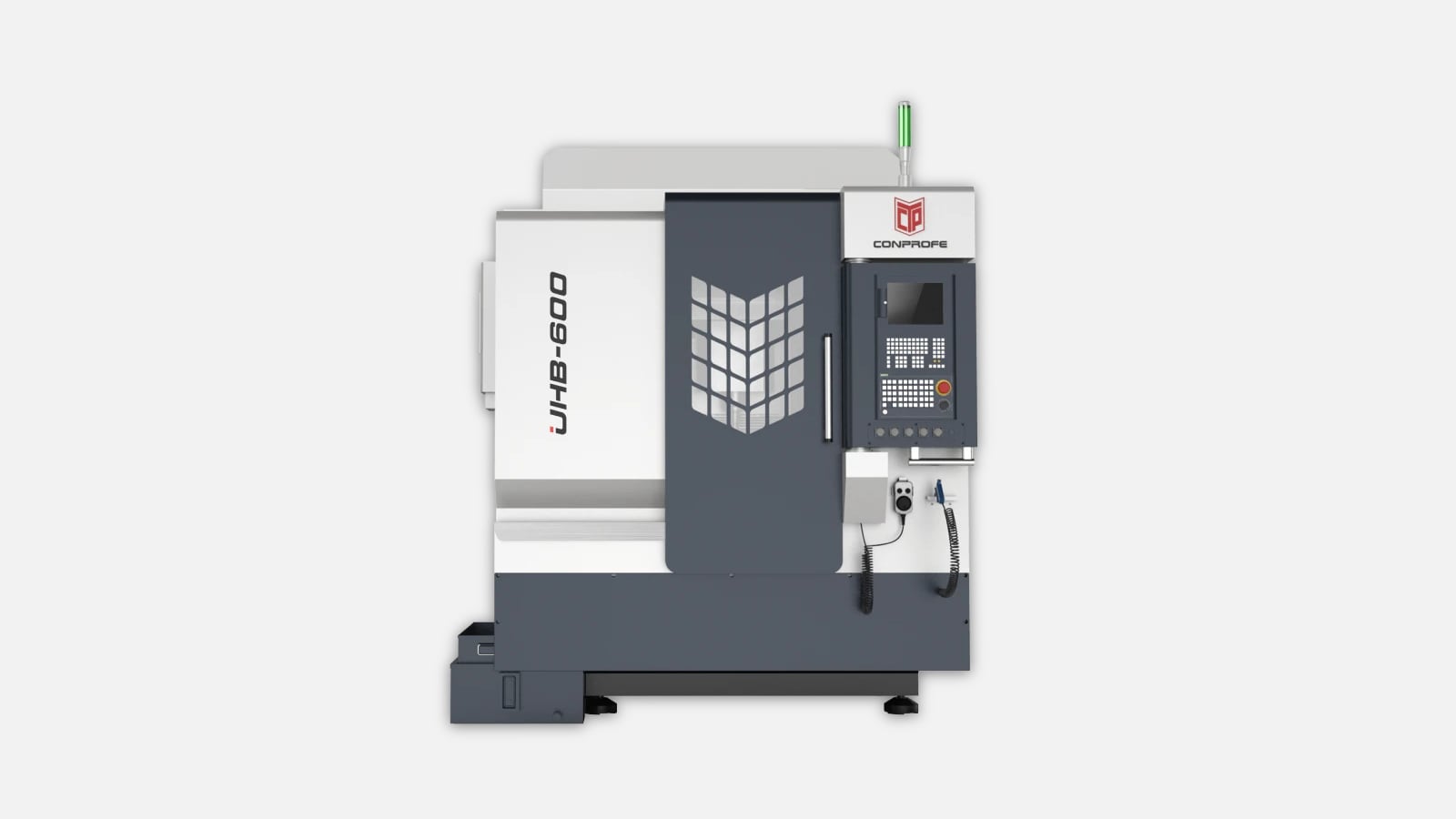

Ultrasonic CNC Machining Center UHB-600 from COMPROFE

Name: Ultrasonic CNC Machining Center UHB-600 from COMPROFE
Rating: 4.9 (1 reviews)

Ultrasound Processing Center COMPROFE with CNC – UHB-600. 3 axes.

Number of axes3
Stroke X600 mm
Stroke Y500 mm
Stroke Z300 mm
Rotational speed30,000 RPM
Power7.5 kW
Feed rate in X and Y axes15,000 mm/min
Table load capacity300 kg
Positioning accuracy0.005 mm
Repeatability0.003 mm
Weight5,000 kg
Parameters2,025 mm (79.7 in) Overall width 2,100 x 2,390 mm (94.1 in)

All Specifications

Get a Consultation

+971 (56) 980-32-49

Get an Offer

Ask a Question

Description
Specifications
FAQ
Video

The CONPROFE UHB-600 Ultrasonic CNC Machining Center is a reliable and powerful tool for processing various materials, including metals, plastics, and wood. This machine is designed for the production of high-precision parts and surfaces while offering high performance.

The UHB-600 is equipped with a powerful spindle and a high-precision control system, ensuring high accuracy and smooth processing. The machine features an automatic clamp that holds the workpiece securely during operation.

With the UHB-600, various types of machining can be performed, including milling, drilling, and threading. Due to its high performance and accuracy, the machine can be used for both mass production and the manufacturing of individual parts.

To enhance operator convenience, the CONPROFE UHB-600 is equipped with an intuitive control interface and an automatic lubrication system that ensures durability and reliability during operation.

Overall, the CONPROFE UHB-600 milling machine is a dependable and powerful tool that allows for high-precision machining of various materials with exceptional performance and accuracy.

Number of axes3
Stroke X600 mm
Stroke Y500 mm
Stroke Z300 mm
Rotational speed30,000 RPM
Power7.5 kW
Feed rate in X and Y axes15,000 mm/min
Table load capacity300 kg
Positioning accuracy0.005 mm
Repeatability0.003 mm
Weight5,000 kg
Parameters2,025 mm (79.7 in) Overall width 2,100 x 2,390 mm (94.1 in)

Design Features

Structure

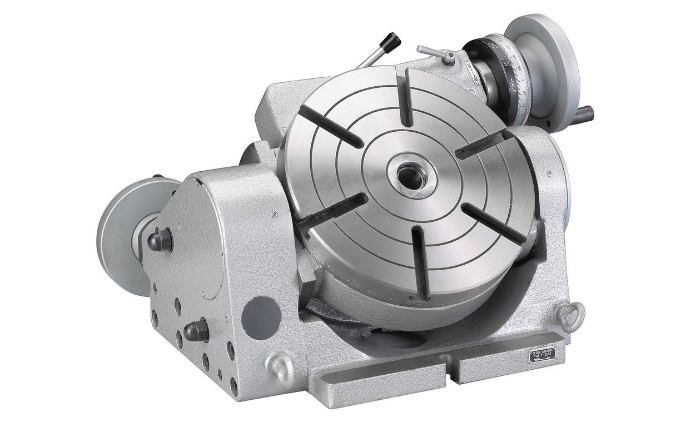

Tilted rotary table and movable stand allow for comfortable and, most importantly, high-quality machining of products of any size.

Number of tools

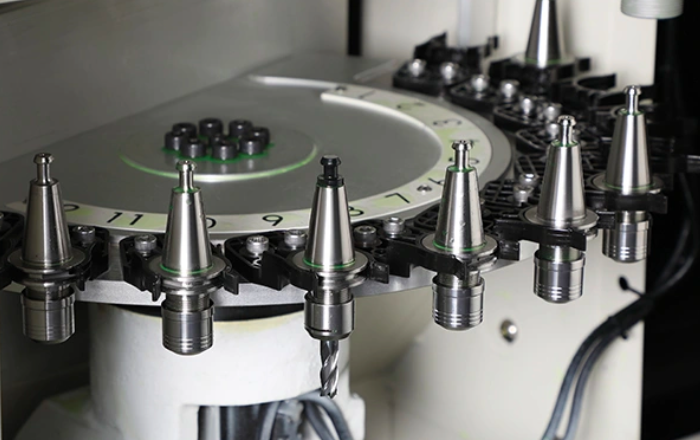

This ultrasonic machining center with CNC has 13 tools weighing no more than 3 kilograms.

Front end of the spindle

HSK-E40 for machining hard and brittle materials due to advantages such as low cutting force, high machining accuracy, and high surface integrity.

Precision Tooling

The machine has an outstanding ability to process small tools and is suitable for machining small metal parts.

Ultrasonic Technology

It can process hard and brittle materials (ceramics, sapphire, glass, etc.) and difficult-to-machine materials to achieve better surface quality, increase tool life, and enhance processing efficiency.
