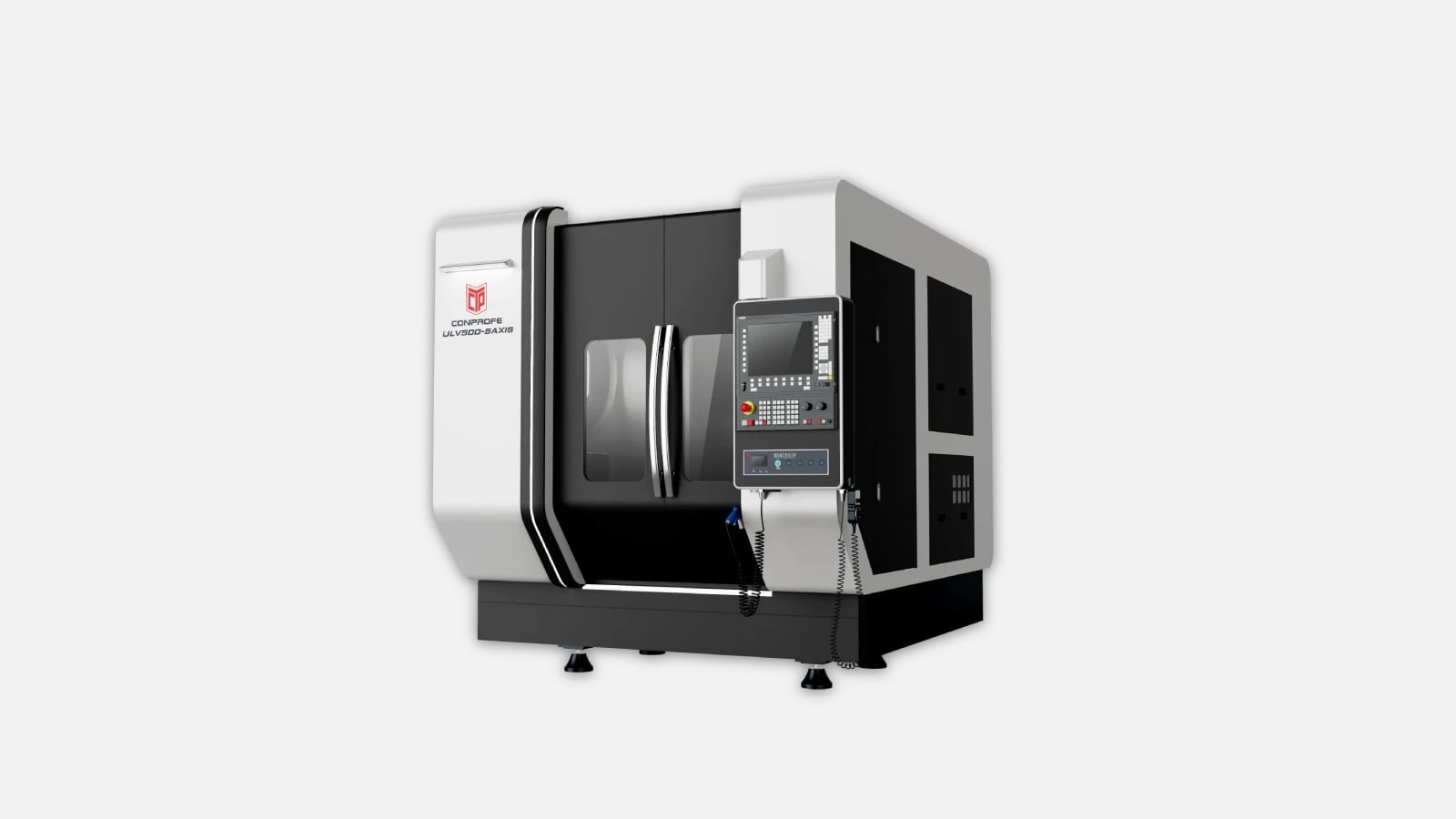

CNC Machining Center ULV-500 by COMPROFE

Vertical machining center CNC ULV-500 with 5 axes.

Stroke X520 mm
Stroke Y520 mm
Stroke Z460 mm
Rotational speed20,000 RPM
Maximum workpiece height520 mm
Table rotation (axis C)360 °
Feed rate in axes XYZ30,000 mm/min
Table load capacity300 kg
Weight of tools (max)6 kg
Positioning accuracy0.005 mm
Repeatability0.004 mm
Mass10,000 kg
Parameters2220x3217x2800 mm
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The CONPROFE ULV-500 CNC machining center is a high-tech model that boasts a multitude of features and advantages. This machine is capable of processing various materials, including metal, wood, and plastic.

The ULV-500 is equipped with a powerful motor and precise mechanism, ensuring high productivity and accuracy in machining. The machine has a large load capacity, allowing it to handle large and heavy parts.

Additionally, this machine features a cooling system that prevents overheating and extends the tool’s lifespan. A dust extraction system is also integrated into the machine, ensuring cleanliness in the work area and improving processing quality.

The ULV-500 offers a wide range of spindle rotation speeds, allowing it to work with different materials and select the optimal operating mode for each task. Furthermore, the machine is equipped with an automatic tool change system, simplifying operations and enhancing efficiency.

Overall, the CONPROFE ULV-500 milling machine is a reliable and multifunctional tool suitable for a wide range of tasks, helping to boost the productivity of your production.

Stroke X520 mm
Stroke Y520 mm
Stroke Z460 mm
Rotational speed20,000 RPM
Maximum workpiece height520 mm
Table rotation (axis C)360 °
Feed rate in axes XYZ30,000 mm/min
Table load capacity300 kg
Weight of tools (max)6 kg
Positioning accuracy0.005 mm
Repeatability0.004 mm
Mass10,000 kg
Parameters2220x3217x2800 mm
Design Features
Spindle direction
Spindle is vertically oriented for convenient and quick operation of the milling machine.

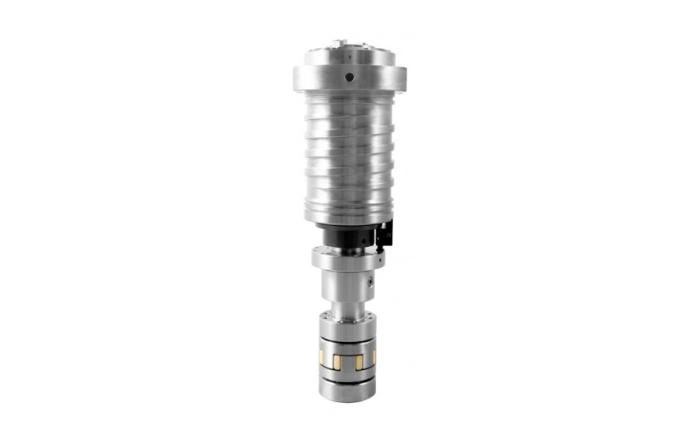

Ultrasonic spindle
Ultrasonic spindle, independently developed by Conprofe, is used to reduce cutting forces, ensuring high efficiency in the machining of hard-to-machine materials.
System
SIEMENS 840Dsl is used for implementing 5-axis simultaneous processing with RTCP functionality.
