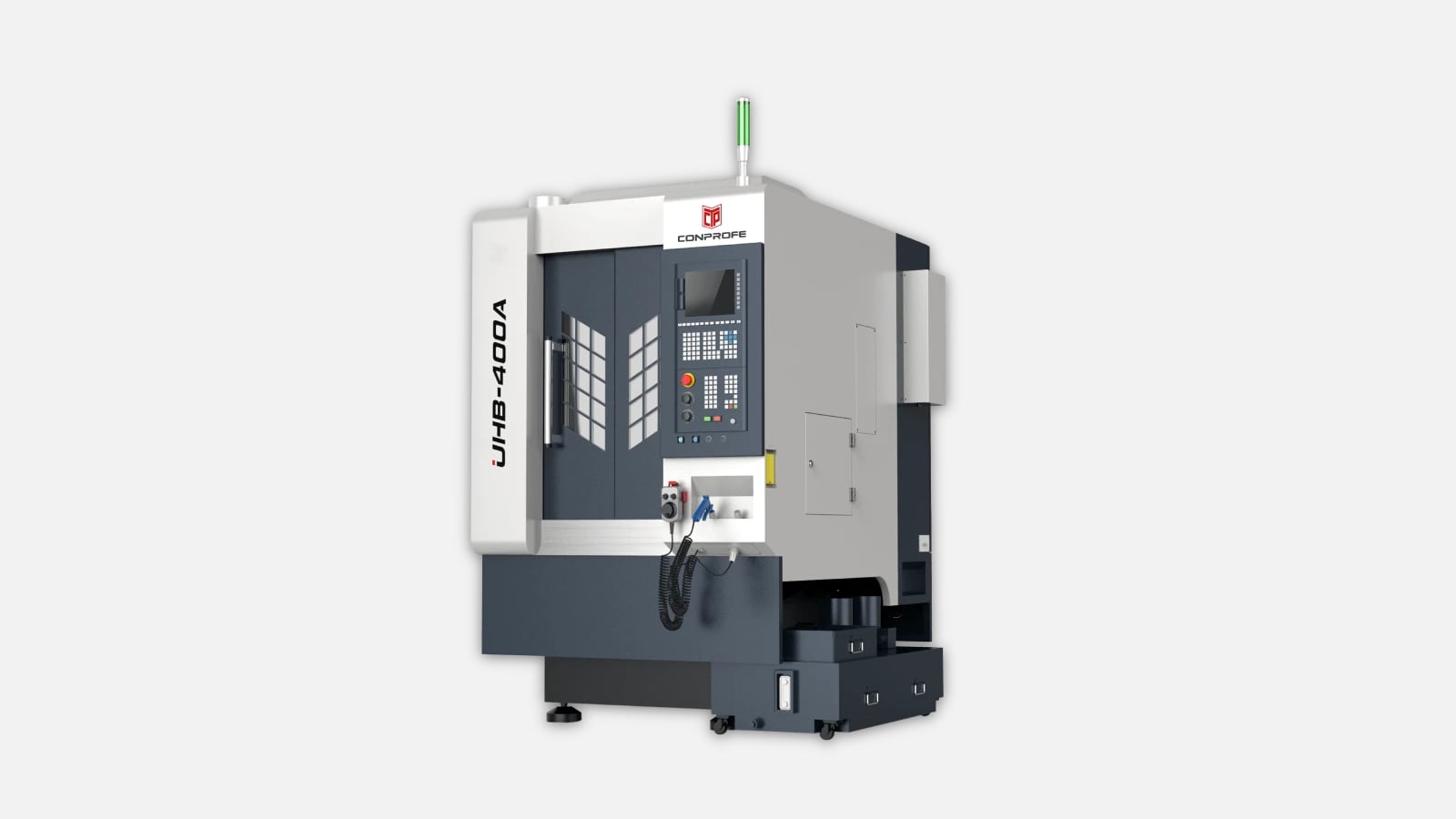

Ultrasonic CNC Machining Center UHB-400A

Ultrasonic Machining Center CNC UHB-400A

Number of axes3
Travel X400 mm
Travel Y400 mm
Travel Z150 mm
Spindle speed40,000 rpm
Power6 kW
Feed rate in X and Y axes10,000 mm/min
Table load capacity100 kg
Positioning accuracy0.006 mm
Repeatability0.004 mm
Weight2,100 kg
Specifications1245x150x2130 mm
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The CONPROFE UHB-400A CNC Ultrasonic Machining Center is high-quality equipment that offers a wide range of capabilities for processing metallic materials. The UHB-400A model features a compact size and convenient design, making it suitable for use in confined spaces.

Features of the CONPROFE UHB-400A Milling Machine
The CONPROFE UHB-400A milling machine is equipped with a sturdy base that ensures high stability and accuracy during material processing. This model features high-quality guides and a spindle, which provide exceptional precision and quality in the machining of products.

The operation of the CONPROFE UHB-400A milling machine is controlled by a modern CNC system, allowing the machine’s functions to be tailored to specific tasks. The UHB-400A model has a high processing speed, significantly reducing the manufacturing time of products.

The CONPROFE UHB-400A milling machine can process various materials such as steel, aluminum, copper, plastics, and more. Thanks to its high precision and processing quality, the finished products exhibit outstanding strength and durability.

Advantages of the CONPROFE UHB-400A Machining Center
The advantages of the CONPROFE UHB-400A milling machine lie in its high precision and processing quality, as well as its high operational speed. The UHB-400A model is characterized by its compact size and user-friendly design, making it convenient for use in production.

The CONPROFE UHB-400A CNC Ultrasonic Machining Center is reliable equipment that enables the production of high-quality products with minimal time and effort. If you are looking for a dependable and efficient machine for processing metallic materials, the CONPROFE UHB-400A milling machine is an excellent choice for you.

Number of axes3
Travel X400 mm
Travel Y400 mm
Travel Z150 mm
Spindle speed40,000 rpm
Power6 kW
Feed rate in X and Y axes10,000 mm/min
Table load capacity100 kg
Positioning accuracy0.006 mm
Repeatability0.004 mm
Weight2,100 kg
Specifications1245x150x2130 mm
Design Features

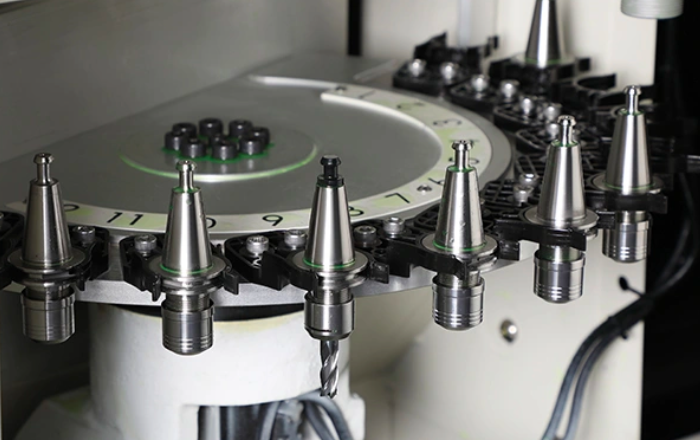

Number of tools
This model has 11 tools.
Front end of spindle
The front end of the spindle HSK-E32, HSK-E25, ISO 20 is a reliable and high-precision tool holder, providing stability and accuracy in material processing.

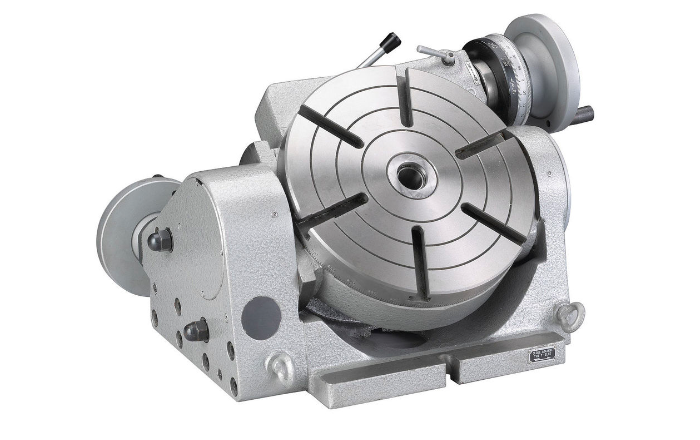

Structure
The machine has a movable column. The rotary table is inclined, which is convenient for operation.
Ultrasonic processing
Ultrasonic processing adds a vibration of 16k~60kHz to the rotating cutting tool, which effectively reduces cutting forces by more than 30%.
Compact design with high rigidity
The machine features increased rigidity and stability due to its portal design, integral construction of the crossbeam and column, as well as CAE optimization.
