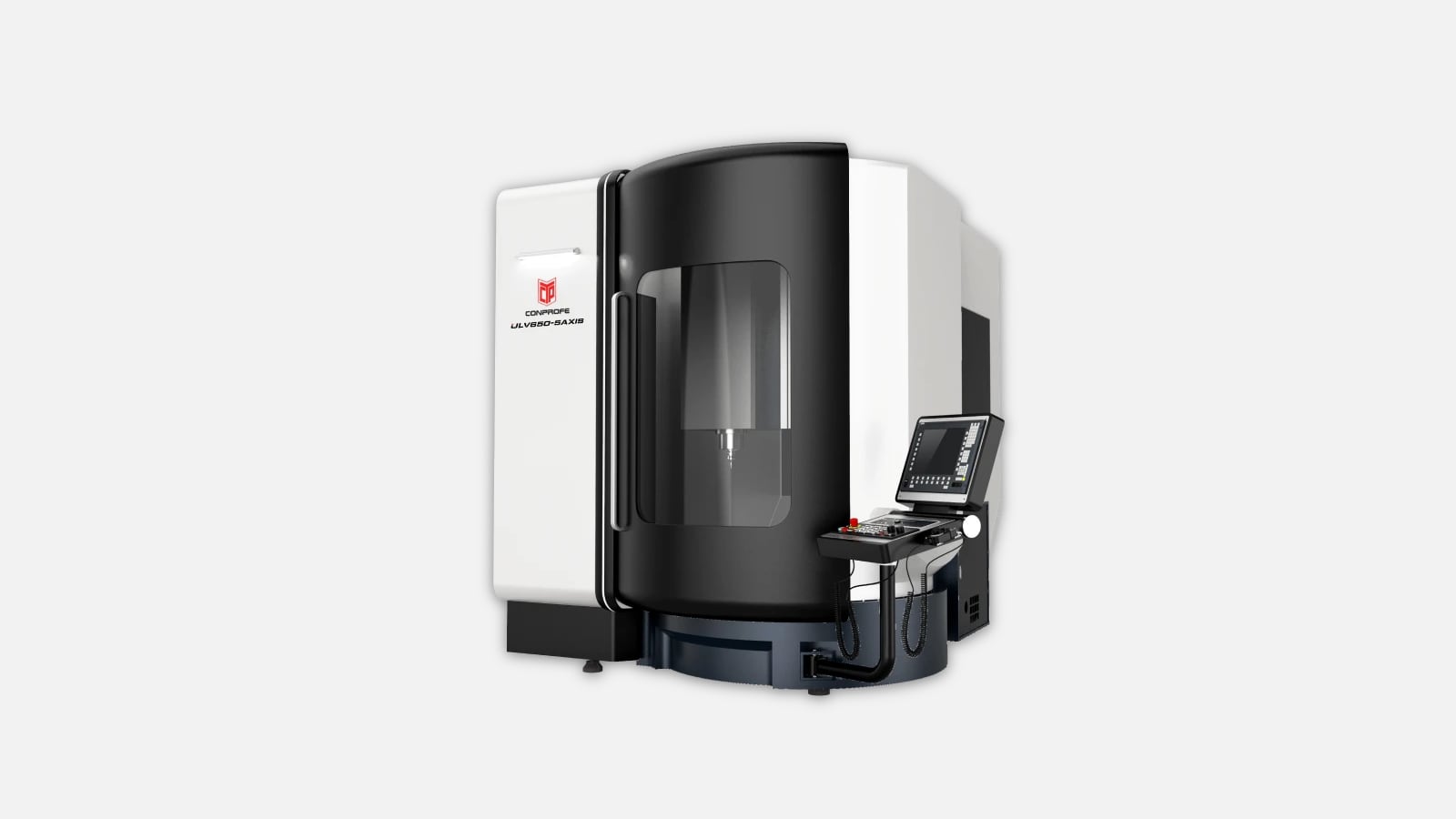

CNC Machining Center ULV-650 from CONPROFE

CNC Machining Center ULV-650 with 5 Axes.

Travel X650 mm
Travel Y620 mm
Travel Z500 mm
Spindle speed20,000 RPM
Maximum workpiece height650 mm
Table rotation (axis C)360 °
Feed rate on axes XYZ30,000 mm/min
Table load capacity400 kg
Weight of tools (max)6 kg
Positional accuracy0.006 mm
Repeatability0.004 mm
Mass11,000 kg
Parameters2478x3600x3050 mm
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The CONPROFE ULV-650 CNC machining center is a high-precision and versatile tool that allows for the processing of materials with varying hardness and complexity. The ULV-650 model is designed to perform a wide range of operations on metal, wood, plastic, and other materials.

The machine is equipped with a high-precision spindle with a maximum rotational speed of 6000 RPM, ensuring high accuracy and quality in processing. The built-in control unit allows for easy adjustment of various machine parameters, such as speed, cutting depth, feed rate, and more.

This model of milling machine boasts high performance and ease of use. It features an automatic lubrication system that ensures reliable operation and extends the machine’s lifespan. Moreover, the machine’s design allows for easy replacement of accessories and tools, simplifying the process of working with different materials.

The CONPROFE ULV-650 is a reliable and efficient tool that enables a multitude of tasks for processing various materials. It is ideally suited for use in small to medium-sized production environments, as well as for work in home settings. If you are looking for a high-quality milling machine, the CONPROFE ULV-650 is an excellent choice for you.

Travel X650 mm
Travel Y620 mm
Travel Z500 mm
Spindle speed20,000 RPM
Maximum workpiece height650 mm
Table rotation (axis C)360 °
Feed rate on axes XYZ30,000 mm/min
Table load capacity400 kg
Weight of tools (max)6 kg
Positional accuracy0.006 mm
Repeatability0.004 mm
Mass11,000 kg
Parameters2478x3600x3050 mm
Design Features
Spindle direction
The spindle has a vertical orientation.
Front end of the spindle
The front end of the spindle in this model of the milling machine is HSK A-63.

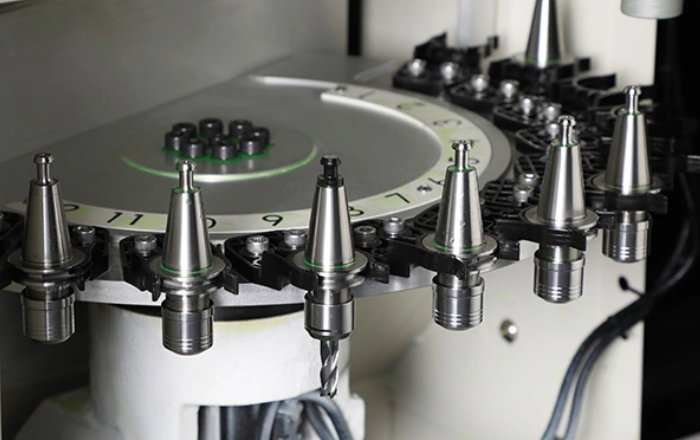

Number of tools
The machining center has 24 tools with a total weight of no more than 6 kilograms.
Ultrasonic spindle
Ultrasonic spindle, independently developed by Conprofe, is used to reduce cutting force, ensuring high efficiency in machining difficult-to-machine materials.
System
SIEMENS 840Dsl is used for implementing 5-axis simultaneous machining with RTCP function.
