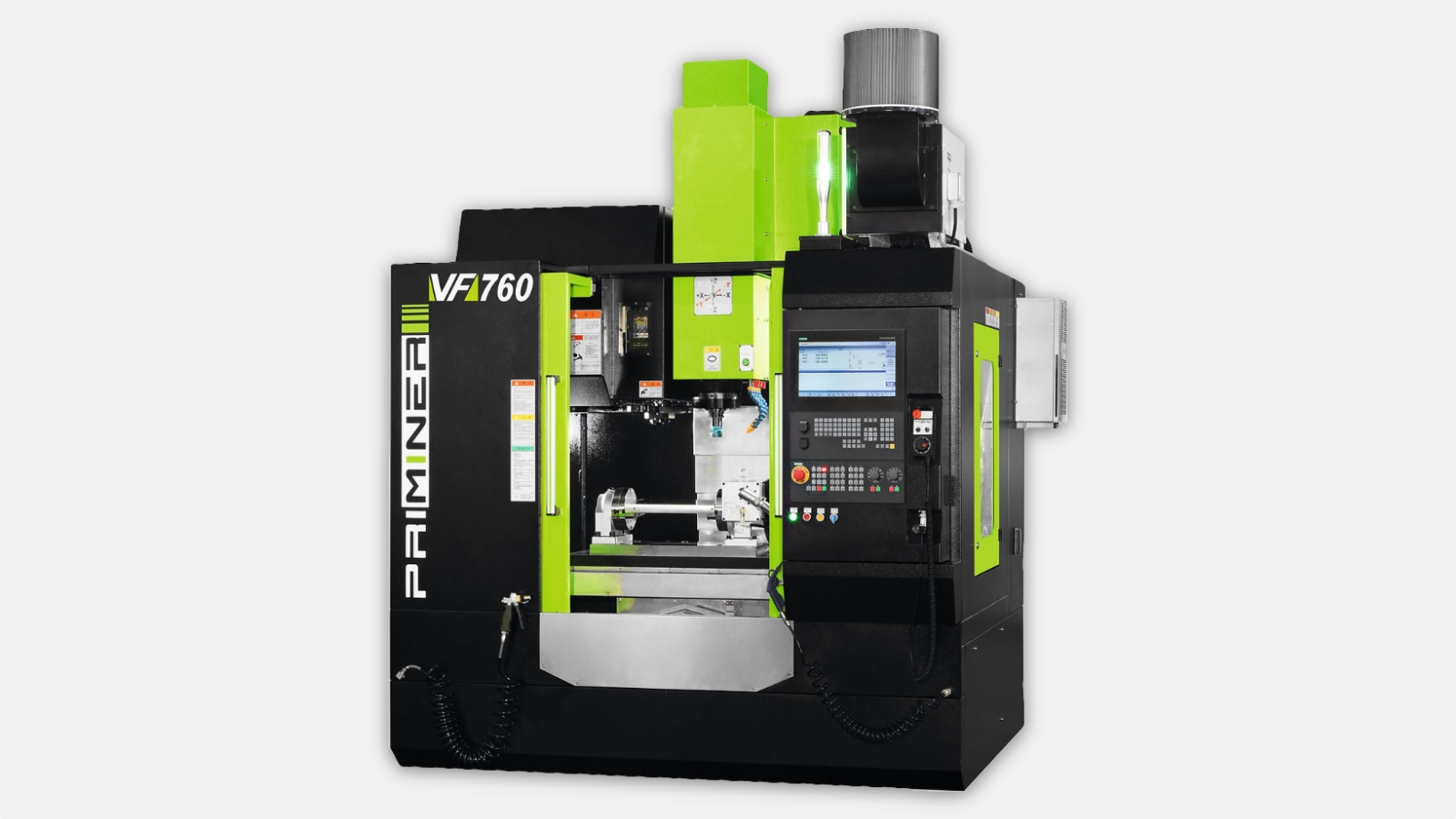

High-Performance Machining Center VF760 by PRIMINER

High-performance machining center VF760 with 3 axes.

Table Size900 x 420 mm
T-slot (width x quantity x distance)14 x 3 x 125 mm
Max. Load500 kg
Movement along X/Y/Z axes720 / 450 / 520 mm
Distance from spindle nose to table surface100 - 620 mm
Distance from spindle axis to column517 mm
Spindle taperSK 40 / BBT 40 / CAT 40
Spindle servo motor9 / 22 Siemens, 11 / 18.5 Fanuc kW
Spindle speed12000 RPM
SpindleHSK A63, 20000 RPM
Power/Torque of motor20/24 kW, 35/42 Nm
Rapid feed along X/Y/Z axes48 (24 option) m/min
Cutting speed1-12000 mm/min
Number of tools24 pcs
Max. tool length300 mm
Max. tool diameterØ78 / Ø125 mm
Max. tool weight8 kg
Positioning accuracy (without optical scales)0.010 mm
Repeatability (without optical scales)0.006 mm
Positioning accuracy (with optical scales)0.006 mm
Repeatability (with optical scales)0.004 mm
Parameters3250 x 2710 x 2900 mm
Weight4500 kg
All Specifications
Get a Consultation
+971 (56) 980-32-49
Get an Offer
  • Description
  • Specifications
  • FAQ
  • Video

The VF760 model is a high-precision CNC milling machine designed for processing various materials, including metal, plastic, wood, and more. The machine is equipped with precision guides, a high-speed spindle, and numerous additional features, enabling it to deliver high accuracy and quality of machining.

The VF760 has a large working area of 760 mm along the X-axis and 400 mm along the Y-axis. This allows for the machining of large parts as well as working with multiple parts simultaneously. The machine also boasts high movement speeds and precise positioning, which accelerates the machining process and reduces setup time.

Equipped with CNC technology, the VF760 allows for programming and automation of the machining process. This results in the production of more precise and high-quality products while minimizing errors and waste. Programming the VF760 is a straightforward and intuitive process, making it accessible even to beginners.

To enhance operator safety, the machine includes an automatic shutdown system that activates upon detecting malfunctions. Additionally, the VF760 features a cooling function that helps reduce temperatures during material processing, increasing their durability.

In conclusion, the VF760 model from PRIMINER is a reliable and high-precision milling machine suitable for processing various materials. It offers a large working area, high accuracy and processing speed, as well as automated software, allowing for the production of quality products.

Table Size900 x 420 mm
T-slot (width x quantity x distance)14 x 3 x 125 mm
Max. Load500 kg
Movement along X/Y/Z axes720 / 450 / 520 mm
Distance from spindle nose to table surface100 - 620 mm
Distance from spindle axis to column517 mm
Spindle taperSK 40 / BBT 40 / CAT 40
Spindle servo motor9 / 22 Siemens, 11 / 18.5 Fanuc kW
Spindle speed12000 RPM
SpindleHSK A63, 20000 RPM
Power/Torque of motor20/24 kW, 35/42 Nm
Rapid feed along X/Y/Z axes48 (24 option) m/min
Cutting speed1-12000 mm/min
Number of tools24 pcs
Max. tool length300 mm
Max. tool diameterØ78 / Ø125 mm
Max. tool weight8 kg
Positioning accuracy (without optical scales)0.010 mm
Repeatability (without optical scales)0.006 mm
Positioning accuracy (with optical scales)0.006 mm
Repeatability (with optical scales)0.004 mm
Parameters3250 x 2710 x 2900 mm
Weight4500 kg
Design Features

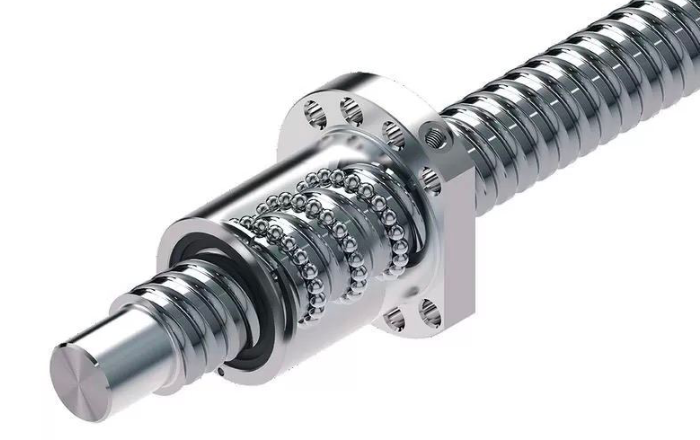

Ball screw
C3 class ball screws provide maximum accuracy and durability.

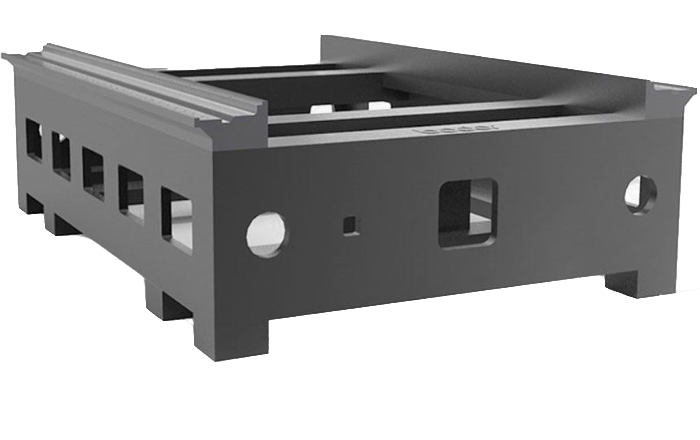

Cast iron base
The use of cast iron, stress-relieved, ensures the stability of the structure without deformations. Pre-tensioning on all axes minimizes thermal deformations.
Basic equipment
Fully enclosed machine workspace protection. Chip conveyor. Spindle cooling system. Electrical cabinet with air conditioning. Rigid tapping. Ethernet, CF card, USB interface
Additional options
Coolant supply system through spindle. Motor-spindle 20000 RPM, HSK A63. Rotary table (4th axis). Tilting rotary table (4th/5th axis). Workpiece setting and alignment sensor. Tool sensor. Optical encoders. Oil separator from coolant.
