Amada EM-MIIe servo turret punch, 30 t, 1800 hpm, ±0.05 mm accuracy, UAE ready
Short burst first. Metal sheet everywhere, right. HVAC duct, elevator cabin, random cabinet near the subway ticket office. Somebody had to punch all those holes, louvers, weird key-shaped windows. In many shops across Dubai or Sharjah that somebody is an Amada EM-MIIe. Period.
Now my brain starts to ramble, forgive me. The EM-MIIe is the electric turret punch with twin AC servo drives, the same line Amada pushes since 1997, yet the MIIe refresh landed a couple of years ago. They claim thousands of units worldwide, I dug into an Amada Europe press note that talked about 1500 machines shipped from the Fujinomiya plant annually, roughly a fifth of those are EM family, so do the math, the platform is well proven.
Short sentence, then long one. No hydraulic pack humming in the corner, no oil smell, only the big blue servo packs hiding behind the side cover, feeding energy to a crankless ram that can slam aluminum at 1800 hits per minute and then immediately slow down to nibble stainless at 40 hits without switching modes, the control simply tweaks torque.
You get the vibe, smooth, predictable, easier to schedule night shifts because operators are not filling the tank every other week.
Before somebody shouts where are the numbers, here they are, boxed nicely. Two lines of text so the table does not float alone, old SEO superstition.
| Parameter | Figure |
|---|---|
| Press force | 300 kN |
| Max hit rate on 25 mm pitch | 900 hpm |
| Clamp dead zone | 14 mm per side |
| Max sheet thickness | 6.4 mm mild steel |
| Axis accuracy | ±0.05 mm |
| Tool change time | 0.8 s average |
| Noise during idle | 65 dB(A) |
And yes I know, some brochures quote 60 dB, measured inside a lab with soft panels, in a shop with plasma cutter next door you will not notice the difference anyway.
Two more sentences so the table is not an orphan. The important line is the ±0.05 mm, most fabricators in Abu Dhabi chase ±0.1 mm on bends, so the punch easily sits inside the tolerance stack. Fits good with press brakes later.
Picture a 2.5 x 1.25 m sheet of 1.5 mm aluminum for an electric cabinet door. Nesting spits out 18 panels. Cycle on a maintained EM-MIIe with auto index and common line cutting lands under 6 minutes, including sheet load and unload on an MP Servo loader. That is not me bragging, check the timestamped video Ahmed from Jebel Ali sent me last month.
Here comes a slightly chaotic list, because materials behave like they want, not how we want.
I could add copper but honestly almost nobody in UAE punches copper sheets, price is crazy and laser is safer to avoid burrs.
Amada sticks to the AMNC 3i control, a 19-inch touch, black bezel, decent brightness even under desert skylight pouring through the roll-up door. Offline you program in VPSS 3i, import DXF, assign tools, hit export, done. At first week operators curse the auto tool suggestion, second week they thank it, because it remembers shear clearances they forgot last night.
I promised a faceoff, so here we go, short, not polite, brutal.
Why EM-MIIe wins more quotes in UAE tenders? Mostly because spare parts fly in from the Jebel Ali warehouse within 24 hours and every freelance maintenance guy already knows the servo amplifier part numbers by heart.

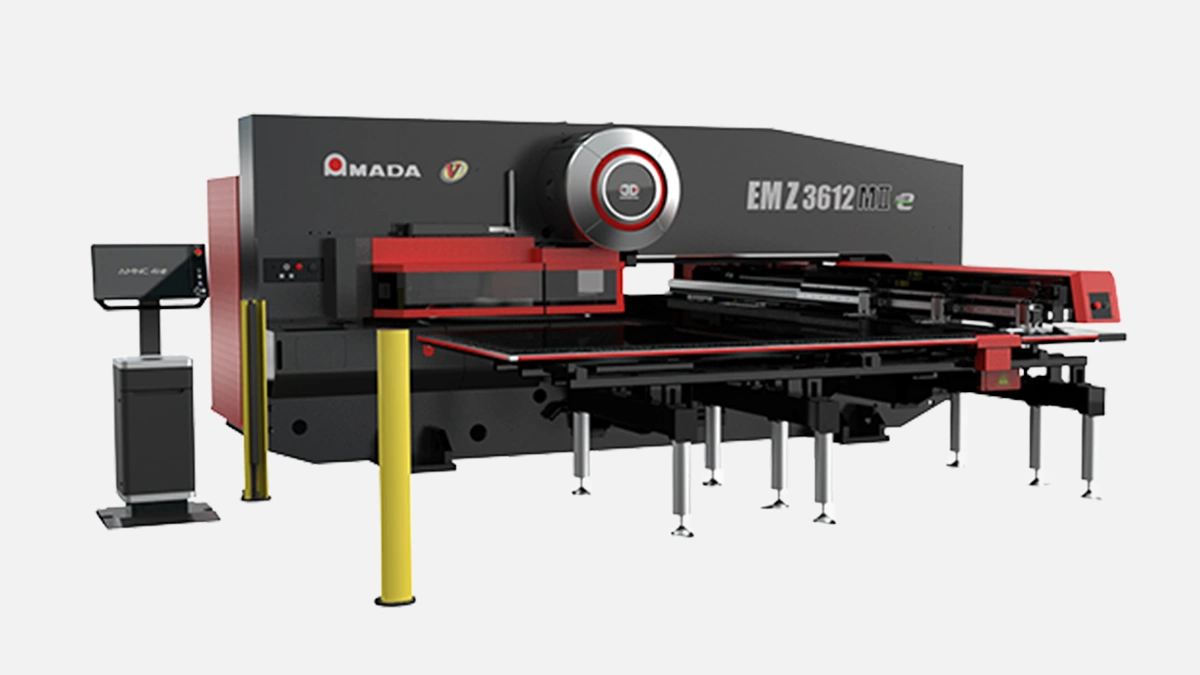

There is confusion, EM-255 is not a typo, it is the smaller bed version, same ram, capped at 2500 mm reposition, while EM-3612 MIIe stretches to 3.6 m long axis, clamp layout updated, brush modules doubled. Both share tools, clamps, software, so mixed fleet makes sense.
Footprint matters, some shops operate in converted parking lots behind malls. The EM-MIIe sits on 5.1 x 4.9 m including the feeder, you still need 1 m around for service but no pit, just a 200 mm thick floor slab. Voltage is 400 V three phase, mains fluctuations in Ras Al Khaimah rarely drop below 380 V, so no stabilizer unless you run night shift on diesel generator.
I scribbled the numbers from two factories.
| Item | Factory A (Dubai) | Factory B (Ajman) |
|---|---|---|
| Power per hour | 6.2 kWh | 6.5 kWh |
| Punch tool resharpen | every 45k hits | every 42k hits |
| Lube cost per month | 35 AED | 40 AED |
Facts talk. Electricity is cheaper at night, droops to 0.28 AED/kWh, so graveyard shift makes real sense.
A couple of sentences after the table, to comply with the layout rule. You clearly see power draw is modest, same ballpark as a 4 kW fiber laser idling, but here the machine actually removes metal.
Short staccato then a rambling run on sentence.
Some users ignore the springs, then blame the machine for burrs, classic human error, the turret itself is sturdy, the only Achilles heel is abusing slitting tools without coolant, heat builds up, tool burns, station jams, machine stops, production manager screams, easy to avoid.
Even with brush table, sheet whip can bite. Amada equips light curtain, category 4 safety relay, still some crews bypass it to speed loading, bad idea, fines from municipality loud and clear. Install the magnetic interlock, close the cover, let the loader handle the plate. Noise wise we are talking 80 dB during continuous piercing in 3 mm stainless, wear earplugs, problem solved.
I asked three owners, they replied in WhatsApp, copy pasting here, trimmed a bit.
No fairy tales. The EM-MIIe punches fast, holds tolerance, drinks little power, and thanks to the twin servo it runs cool in the hot gulf summer. That mix attracts HVAC makers, electrical cabinet shops, elevator panel suppliers, basically any plant that cuts more than 200 sheets a day but is not ready to jump fully into lasers.
