CNC turret punch press 300 kN, 58-station, full 360° index, ideal for UAE HVAC and panel shops.

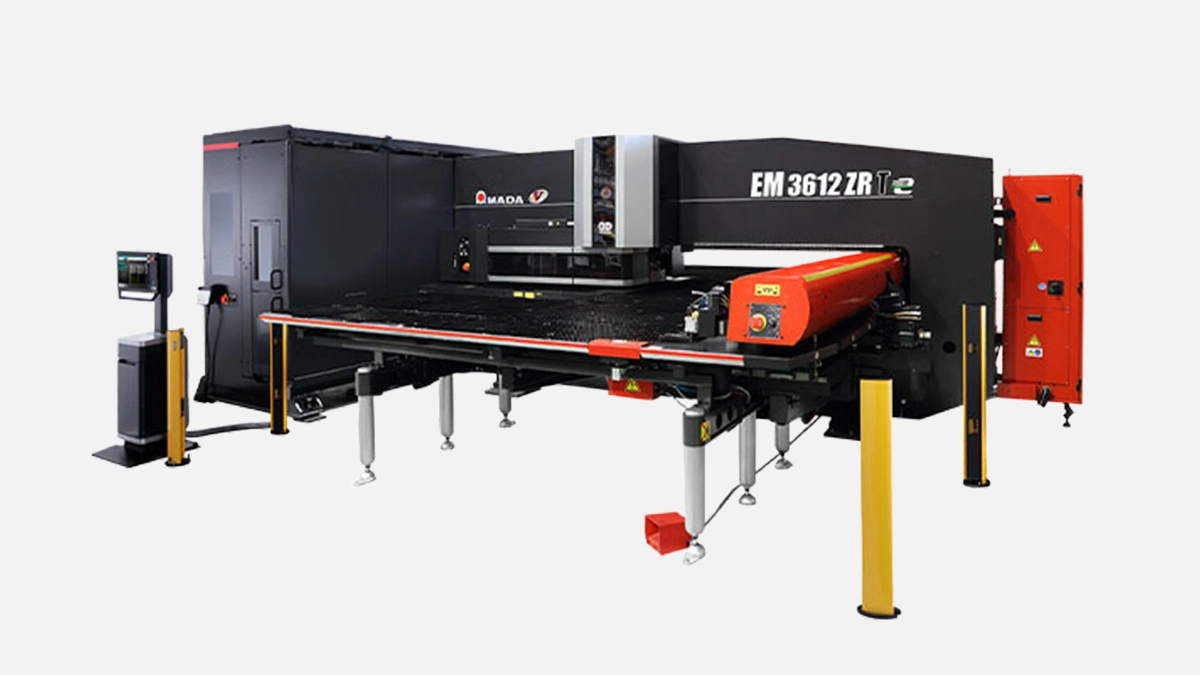

Right, straight to the point. Amada has been pushing sheet metal since 1946, they roll out roughly 2500 CNC punch presses a year, give or take, and the EM family has seen four big revisions. The EM-ZRe is the third one in that line, launched around 2019. It sits between the smaller EM-K and the bigger EM-MR, so not too huge, not too light, fits mid-size UAE job shops that punch day and night.
But wait, before numbers, a tiny rant. Everyone keeps shouting fiber lasers are the future. Cool, lasers are shiny, but a turret punch still beats them for louvers, embossing, tapping, forms that need a real hit. So, if your workshop cuts 1 mm alu one minute and then wants a vent-pattern in 2 mm mild the next, you grab a press like this. End of story.
So, 300 kN drive. That is 30 metric tons in old money. Enough to pierce 6.35 mm stainless without flinching. X travel 1270 mm, Y 2540 mm if you rotate the sheet once. Accuracy sits at ±0.1 mm repeat, which is plenty for switchgear or HVAC panels. Hit rate, headline number, 1500 strokes per minute on a 1 mm index, though real world, with tool changes and clamp moves, you hover nearer 400-500. Still snappy.
Below is a quick table because staring at paragraphs is boring.
| Axis | Travel | Max speed |
|---|---|---|
| X | 1270 mm | 100 m/min |
| Y | 2540 mm | 80 m/min |
| C | 360° | 60 rpm |
A word on that C axis. It is full, not the old index at 90° only stuff. So wheel tools draw radii, hexes, logos, whatever, without stopping every few degrees. Operators in Sharjah loved that because ornamental grills for hotels need swirling paths. Less reposition means less marks, less rework, more coffee breaks.
Fifty-eight stations, of which two are Auto-Index. Clamp dead zone is roughly 13 mm each side, clever software hops around it. Tooling height is standard Amada 32 mm, so your existing EM or Vipros punches drop right in. Nice when the finance guy blocks new tooling budget. For forming ops you get up to 22 mm draw, that covers most louvers and extrusions used in A/C cabinets roaming Dubai rooftops.
Climate matters. Machines that sweat and corrode under desert humidity break. The EM-ZRe frame is powder coated, yes everyone claims that, but here it is paired with stainless covers on the die area. I saw one running in Abu Dhabi, 41 °C outside, internal chiller fixed oil temp at 29 °C all shift. No warped valves, no overshoot. Compressed air quality though, watch it, sand sneaks in.
Small checklist operators pass between themselves:
Sounds basic but saves nights.
Before we drown in tech, three quotes I heard last month:
Real talk matters more than brochure words.
Within the EM clan you have EM-K, EM-ZRe, EM-MR. Quick rundown in numbers:
| Model | Force | Sheet size | Turret | Footprint |
|---|---|---|---|---|
| EM-K | 200 kN | 1250×2500 mm | 45 | 4.2×3.9 m |
| EM-ZRe | 300 kN | 1270×2540 mm | 58 | 5.0×4.1 m |
| EM-MR | 350 kN | 1525×3050 mm | 66 | 5.6×4.5 m |
K is lighter, cheaper, but limited forms. MR is beefy, needs bigger air and floor, not every shop in Ajman has space. ZRe sits sweet in the middle, covers 80 % of HVAC, switchgear and signage parts produced locally.
People cross-shop with Trumpf TruPunch 3000 and Muratec M2048TS. My messy notes:
So, if you chase speed for perforated panels, EM-ZRe wins by that 25-30 % stroke edge. If you prefer servo motors over AC, Trumpf shouts about it, though I rarely saw it making difference.
Let me throw a list, again not starting with it, because rhythm matters:
Ignoring those three points, I promise, ends with shaky accuracy and re-cutting.
Amada AMNC-R control, a spin on Fanuc hardware. Screen is 19 inch touch, but you can still jab physical buttons when fingers are oily. UAE shops typically run Dr.ABE Punch for nesting, pipe the NC via Ethernet. A part nesting of 1000 vents with 2 tools took 11 seconds on a Core i5 PC. Brisk enough.
Edge note, OPC-UA gateway is now built in, sensible if you plan fancy dashboards later. Not everyone in Sharjah cares, but corporate in Dubai sure will ask for production KPIs sooner or later.
Power draw peaks at 23 kVA, idles at 5-6 kVA. In Dubai Electricity and Water Authority rate card terms, that is about 0.28 AED per kWh for industrial slabs. Rough maths, punching 1 ton of mild sheet per day costs 21-23 AED in electricity. Factor that when quoting.
Machine weight 18 t, two flatbed trucks, five anchor bolts, no pit. Floor load 4 t/m². I watched install crew from Jebel Ali free zone drop one in 14 working hours using just a 25 t crane and a Versa-lift.
Small batch fabricators in Dubai Investments Park, HVAC panel makers in Ras Al Khaimah, signage shops doing perforated mesh for hotels on the Palm, they all lean toward the EM-ZRe because it hits fast yet slips into a city unit with 6 m headroom. The bigger EM-MR usually needs suburban plots.
Not perfect, no such thing. The brush table scratches mirror SS if you forget to clean slurry, and the control UI feels 2010. Still, the speed bump over previous EM-ZR and the all-axis AC drives make daily life easier. For a Gulf workshop juggling short runs and emboss forms, it simply works, does not moan, and leaves headspace to chase bigger issues like material cost.
That sums it, messy yet honest.
