Steady 13.1 m³/min at 7.5 bar, GA 75+ feeds multiple CNC cells without noise.
Atlas Copco has been hammering away at compressed-air tech since 1873, crazy long run, right. More than 4 000 screw compressors a year roll out of their Belgian plant, the GA line alone counts over 30 sibling models and revisions, the GA 75+ sits somewhere in the middle weight class. UAE shops, fabrication yards along Jebel Ali, even small CNC corners in Sharjah keep bumping into the same bottleneck, air supply fluctuates, tools stall, spindle alarms pop. A beefy but still compact package seemed the logical fix, so GA 75+ became kind of a go-to.
Short sentence, pause. Then a stretchy one, because the mix of VSD, Elektronikon Touch and the in-house asymmetric rotor profile lets the unit pump a stable flow while shaving a chunk off the power bill, at least according to three guys I know at an Abu Dhabi machining cluster who swapped from an aging GA 90 back in 2018.

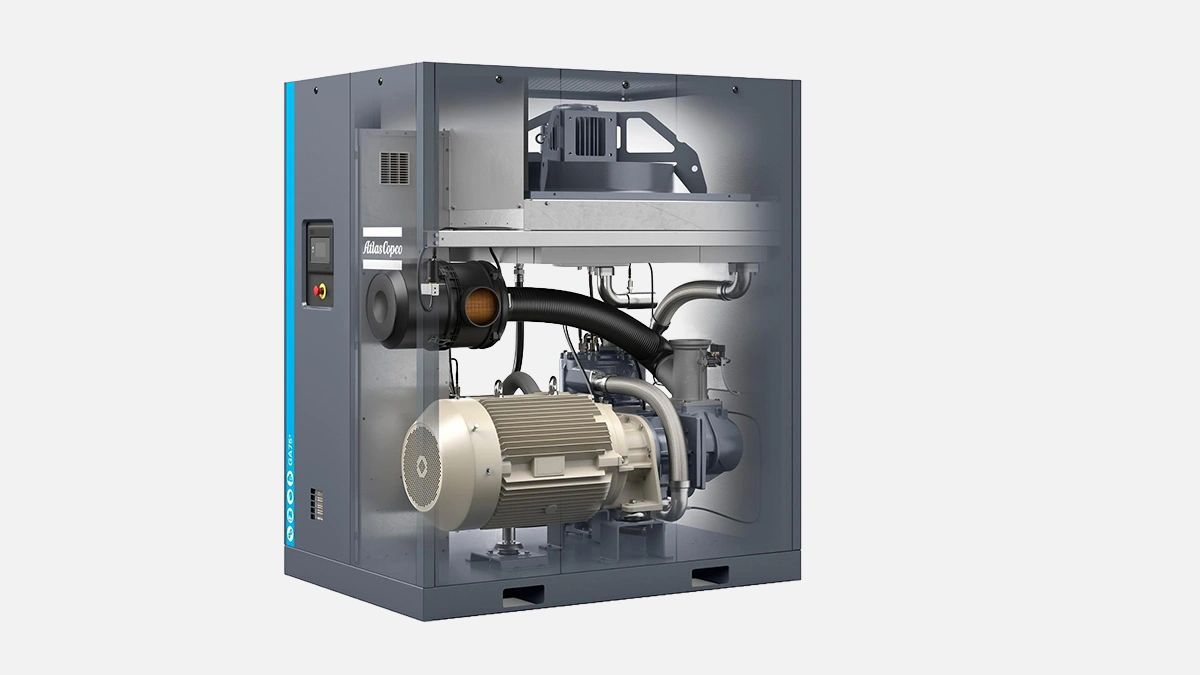

The air end matters more than the glossy cover. Atlas Copco machines the rotors inhouse to microns, pairs them with low friction bearings, sticks the whole thing on an over-sized drive side to slow down wear. Vibration, sure, any compressor shakes, but a smart elastomer coupling and a dense base frame keep the GA 75+ quiet enough to chat right next to it.
Before diving deeper here is a small pressure versus flow snapshot so numbers do not hang in the air.
| Pressure, bar | FAD, m³/min | Power draw, kW |
|---|---|---|
| 7.5 | 13.1 | 75 |
| 10 | 12.2 | 75 |
| 13 | 10.4 | 75 |
A table is fine but context helps. The curve stays almost flat up to 10 bar, a perk if your plant flips between plasma cutting at 7 bar and CNC tool change bursts at 10 bar. After 13 bar flow drops fast, common story with fixed-speed units.
First the drive, then the brain. An IE4 efficiency class motor, star-delta start, no soft starter needed unless your grid is super touchy. Belt tension, forget it, the GA line moved to direct gear coupling a couple iterations ago. That cuts slip and slashes maintenance intervals.
Two sentences down, the Elektronikon Touch control pops up on a seven-inch panel, swipe not tap, operators with oily gloves grumble yet still love the data. You get pressure band setup, weekly timers, warning logs, plus SmartLink cloud if the IT guy ever whitelists the IP.
Bullet list done, breathe. Real life comment, the menu tree is three layers deep so a newcomer needs ten minutes tops to feel at home.
Heat is enemy number one in Dubai summers. GA 75+ ships air cooled by default, oversized axial fan, aluminium cooler matrix. Water cooled exists, but hardly anyone orders it, makes sense only when chiller loops already run for EDM machines.
Here comes another list because field guys keep asking what daily checks look like.
Two lines to close the loop. None of these tasks takes more than five minutes, but skipping them halves element life, personal experience after a messy shutdown in Ruwais.
Service kits arrive in brown boxes, code 2903 1318 00 for the 4 000 hour set, includes oil, filters, O-rings, belt for fan drive even though the compression end is gear coupled. Swap front panel, hinge exposes everything shoulder height, no yoga needed. Mean time to service sits around 45 minutes with a two man crew.
The 75+ sits between GA 55+ and GA 90+. Same frame as the 90, smaller motor pulley, so you literally can uprate later by changing element and Elektronikon firmware, no need to rebuild air piping. GA 55+, meanwhile, runs a shorter element, lighter fan, saves roughly 300 kg shipping weight, nice if your mezzanine floor has load limits.
Now a quick sprint through rival models, not a deep dive, but enough to anchor decisions.
| Model | Motor kW | FAD 7.5 bar m³/min | Noise dB(A) |
|---|---|---|---|
| Atlas Copco GA 75+ | 75 | 13.1 | 69 |
| Kaeser ASD 75 | 75 | 12.4 | 70 |
| Ingersoll Rand R75n | 75 | 12.1 | 71 |
| Gardner Denver ESM 75 | 75 | 12.7 | 68 |
Atlas Copco nips ahead on flow, slightly lower sound than IR, though Kaeser fans argue the SIGMA profile lasts longer. I have seen both stripped down after 40 000 hours, rotor wear felt comparable.
I could praise numbers all day, but here is the street talk. If you run multiple CNC lathes, two laser cutters, maybe a sandblast booth, GA 75+ keeps pressure flat, cuts panic calls, and the local service hub in Dubai stocks parts on shelf, so downtime rarely stretches past a day. Sure, upfront cost bites, spare oil is not cheap either, yet the machine keeps its resale value, buyers hunt them on Dubizzle within hours.
Still not perfect, Elektronikon spare screen price feels brutal, and the fan can howl when ambient creeps over 50 °C. But weigh that against steady FAD and decent efficiency, most shops shrug and sign the PO.
Atlas Copco has over 150 years heritage, offers 5 year element warranty if you stay on genuine oil, and builds every GA 75+ in Antwerp, no outsourcing. Metalworking outfits with mixed shift patterns, auto lines in Dubai Industrial City, even desalination plants on the coast pick this model because they hate surprises. Clean, predictable air, minimal babysitting, done.
