Closed-cab 4–30 kW Bodor P Series fiber cutter, 1.5 G accel, 15 s exchange, 3000×1500 mm bed.

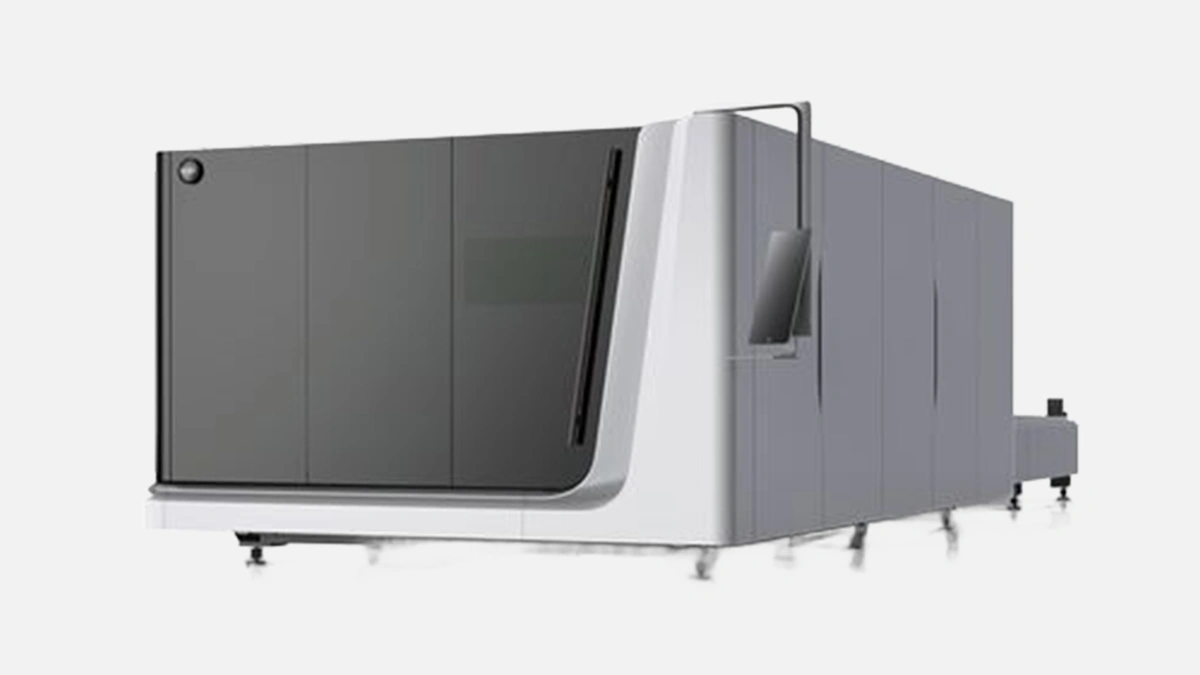

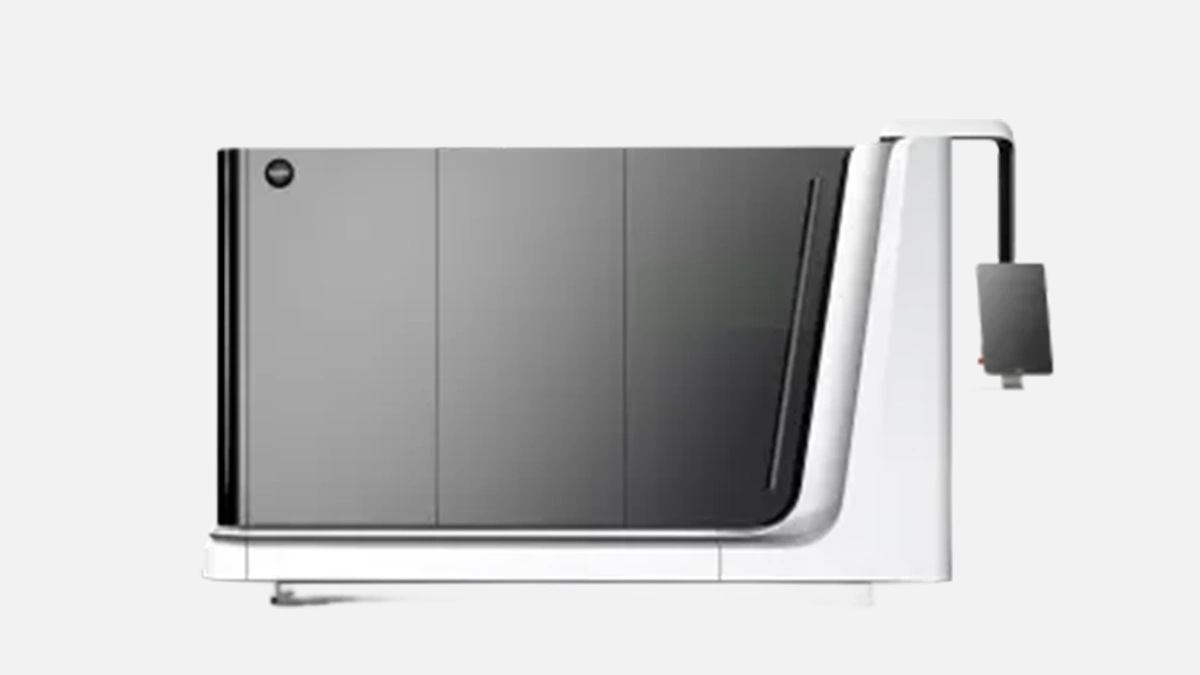

Bodor P Series, closed cabin, double pallet, you look at it and think – looks like a silver freight container with windows, only way cleaner.
Now a long winding thought, because every shop floor manager I know keeps chasing the same trio of demons – downtime, scrap, and that one impossible deadline that shows up on Thursday evening when half the team already booked desert camping for the weekend – and the weird part, this rectangular beast from Jinan actually calms the demons down, not with magic, just raw watts and decent software.
You run a fab shop in Sharjah or Abu Dhabi, sheet piles everywhere, stainless fingerprints on every wall, air smells like ozone after each nitrogen burst, you need a cutter that survives 24/7 shifts without drama. P Series is exactly that, or close. I will rant about what is nice, what stings, and how it stacks against the usual suspects – BySmart, TruLaser 3000, Mazak Optiplex.
First list incoming, but chill, two lines first. The chassis uses welded plate, stress relieved twice, they claim vibration mode below 4.5 µm amplitude during max acceleration, machinists on Reddit measure roughly the same.
Three bullets done, breathe. Notice anything, no hyperbole, just boring metal bits.
After the list, small reminder, the second generation frame (since 2021) swapped out the corner gussets for thicker ribs, crashes above 20 kN still leave the thing squarish, maintenance guys in Al Quoz approved.
Short. IPG or in-house Bodor modules up to 30 kW. Bodor didn’t reinvent diodes, they simply bundle them in a neat rack. Cutting head? BodorGenius, auto focus range ±20 mm, nozzle changer with 4 slots, I dropped a tip once, picker picked it up, life goes on.
“We switched from 6 kW to 12 kW P3015, stainless 10 mm now flies at 3 m/min on nitrogen, edge looks icy.” – Workshop manager, Ras Al Khaimah, interview May 2023.
Exhaust. Dual-zone downdraft pushes smoke sideways into a common duct, standard Ø300 mm outlet. Works okay until you cut galvanized for two hours straight, then you still smell the metal, keep the scrubber on.
Big touch, 21.5″. Interface feels like an Android phone from 2019 – not snappy, not lagging, just there. Five widgets on home: material library, queue, camera view, consumables, log. You can dump DXF over Ethernet or pop a USB. Post-processor inside the BodorNest software accepts Arabic filenames, hooray.
Before the table, let me say, numbers below are from Bodor brochure v3.1 cross-checked with two local owners, average of their logs.
| Material | Thickness | Gas | Speed @ 12 kW |
|---|---|---|---|
| Mild steel | 25 mm | O₂ | 0.8 m/min |
| Stainless 304 | 10 mm | N₂ | 3.1 m/min |
| Aluminum 5083 | 8 mm | Air | 4.7 m/min |
| Brass | 6 mm | N₂ | 2.9 m/min |
After the table, important caveat. Swap power to 6 kW and you basically cut those speeds by half, still serviceable if your lot size is low.
Another sentence, then bullets. Series offers three beds – P3015, P4020, P6025. Same gantry, longer rails.
List ended. Funny part, Bodor keeps firmware one for all, so your G-code moves scale fine, no need to edit lead-in macros.
I promise objectivity, then I contradict myself, typical.
| Feature | Bodor P | Bystronic BySmart | Trumpf TruLaser 3000 | Mazak Optiplex Nexus |
|---|---|---|---|---|
| Max power | 30 kW | 12 kW | 10 kW | 15 kW |
| Exchange table | 15 s | 18 s | 20 s | 25 s |
| UI language Arabic | Yes | Yes | No | Yes |
| Door light curtain | Standard | Option | Option | Option |
| Average kWh @ 10 mm SS | 14 | 16 | 15 | 17 |
Sentences again. Bodor scores on raw wattage and slightly quicker shuttle, Trumpf wins on resale value, Bystronic on service depth in GCC. If your crew relies on factory training videos with Urdu subtitles, Bodor literally ships them on a flash drive. Small but nice.
Consumables, yes. Nozzle around 4 AED, life 1200 pierces with 12 kW on 10 mm mild steel. Filter cartridges each quarter, 1100 AED a pair. IPG diodes MTBF 100 000 h, nobody reached it yet, but first gen P units bought in 2018 still run fine in Ajman.
Bullet list time because tired of commas. But first a line: three areas eat money.
After the bullets, conclusion, nothing exotic here, same story as any high power fiber cutter, at least Bodor spares come from local JAFZA stock not from China airport each time.
Enclosed cabin, CE, FDA, even AUS/NZ certificates, does that matter in Dubai, who cares, municipality inspectors tick the box and leave. The camera feed inside the cabin lets you brag on Instagram, more serious use, you peek kerf quality without opening doors.
Space, you always underestimate it. P3015 demands 9800 × 3800 mm including maintenance aisles. Height 2300 mm, fits in most sheds unless you stacked ducts on the ceiling. Floor load, 3.5 t/m², concrete slab loves it, mezzanine hates it.
Quick history burst, I promise no corporate fluff. Founded 2008, now 2000 employees, yearly output 3000 cutters across 4 series (A, C, P, T). P Series itself on 3rd revision, firmware r5.2 patched December 2023 fixed the lens calibration drift, previous owners know the pain.
Small to medium job shops, HVAC panel makers, elevator cabin fabricators, decorative metal screen guys, add a few oil-field skid builders. They value cycle time more than absolute microns. If you cut satellite parts, skip, go buy a micro-machining laser.
I will even number them, kid style.
Balance, right. Cooling fan noise high, 78 dB at one meter, earplugs mandatory. BodorNest nesting engine ok-ish, still produces extra micro-tabs you later grind off. Not show stoppers, just daily friction.
No moral lesson. If your backlog is mostly mild steel up to 25 mm, mixed with occasional 8 mm aluminum decorative panels, P Series does the job fast, while leaving some budget for that fancy powder coating booth you keep postponing.
In the end, the three main takeaways: all-enclosed for GCC safety rules, exchange table quicker than most, power ceiling at 30 kW future-proofs thick plate work. That’s why many job shops between Jebel Ali and Musaffah quietly switch green color lasers to this grey rectangle.
