DNM 750 II offers 1626 × 762 × 650 mm travel and 22 kW spindle, ideal for heavy UAE machining jobs.

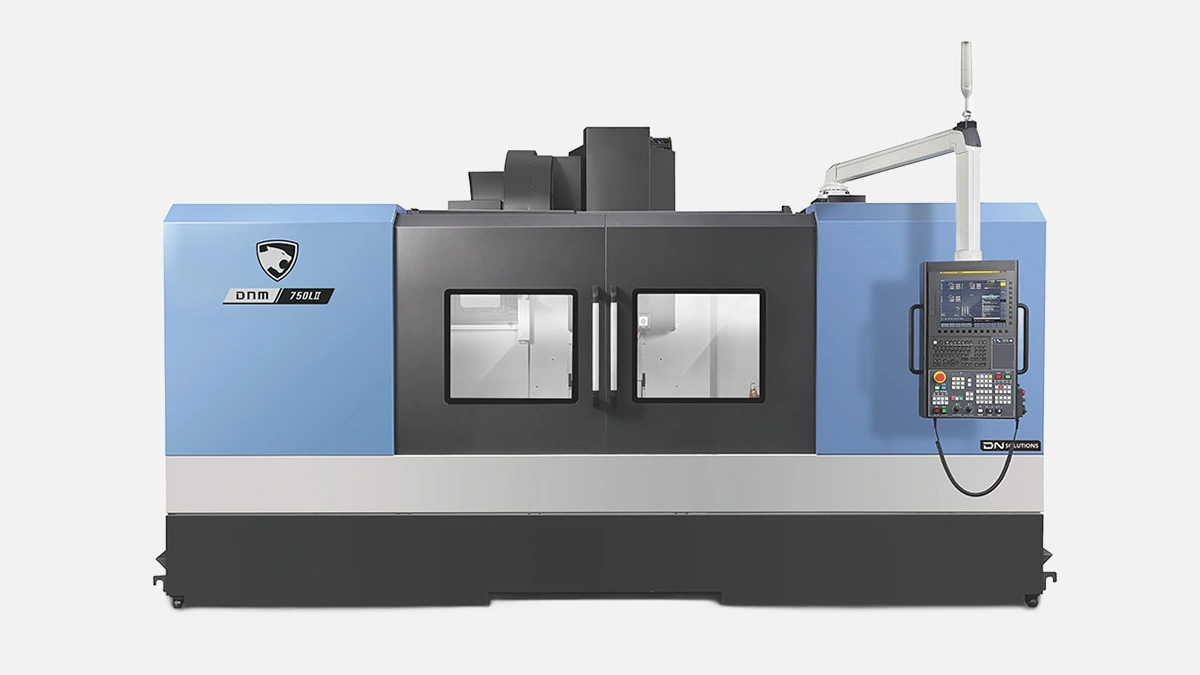

Short burst. Metal smell, coolant haze. The DNM 750 II stands in the corner, looking calm yet ready. I walk around it. Sheet-metal panels feel thick, doors slide with a solid thunk, no rattle.
Then the brain kicks in, one long sentence, wondering how a vertical center with 1626 mm X travel even fits through an average workshop gate in Sharjah, why the designers allowed almost truck-bed sized capacity yet kept the footprint within a single container width, and how the weight distribution is sorted so riggers do not curse all day.
Two steps back. Deep breath.
I keep repeating the numbers, like a mantra. 1626 on X, 762 on Y, 650 on Z. Most mid-range VMCs top out at 1100 or so on X, this one stretches the scale. The cast iron base is ribbed, coolant passages are wide, chips will not clog easily, that was my first relief.
Before we go further, peek at the dry specs in plain sight.
| Item | DNM 750 II figure | Why it matters |
|---|---|---|
| X travel | 1626 mm | Long aerospace brackets one-set-up |
| Y travel | 762 mm | Gearbox housings stay inside sweep |
| Z travel | 650 mm | Deep molds without double setup |
| Rapid X/Y | 30 m-min | Tool in cut faster, idle shorter |
| Table load | 1300 kg | Big fixtures, still safe |
| Power | 22 kW | Rips through Ti-6Al-4V |
Those digits do not tell the whole tale, sure, yet they draw a frame around the possible.
The machine runs roller linear guides on all three axes. Some folks in Ajman prefer box ways for heavy hogging yet the rails here are wide, preload is high, and the head casting anchors a double-nut ballscrew with 45 mm diameter, so chatter stays low unless the operator gets greedy.
Eight thousand? Sounds modest. Option pops it to 12000, different motor, same cartridge. Torque curve sits flat till roughly 4000 rpm, good for stainless. A coolant-through-spindle line rated to 30 bar comes factory ready, no retrofit gymnastics.
What I like most: the big front labyrinth seal, chips rarely reach the bearings.
What bugs me: the drawbar grippers hide behind a proprietary spring stack, swapping takes patience.
Control side, most UAE shops tick FANUC 0iMF Plus, a few aviation outfits in Abu Dhabi pick Heidenhain TNC 640 for probing macros. Either way, the ladder logic is open, no distributor lock, so your local tech can tweak M-code mapping.
Climb on the pallet, yes literally, there is room. 1700 × 760 mm surface, 5 T-slots, pitch 125 mm, extra coolant gutters near the back keep flood from splashing the doors. If you mount a 4-axis rotary, the remaining flat area still holds a vise pair, handy for mixed batches.
Long parts mean long chips. The twin augers underneath feed an external hinge-belt conveyor. Speed is variable, default 3 m-min, crank it down when cutting brass or you will snow the shop in yellow curls.
Words done, mind jumps.
DN Solutions keeps a neat ladder. DNM 4500, DNM 5700, DNM 6700, then our 750 II. Travels climb, but control cabinet, operator door, ATC arm stay same, so programming habits survive when you upgrade. Compared to the smaller 6700 you get about 400 mm extra on X and 150 kg extra table load, yet footprint grows only 250 mm in width. Swapping between them feels natural, even the tool pots accept the same BT40 pull studs.
I lined three names on a whiteboard, Haas VF-7-40, Mazak VTC-800/30, and DNM 750 II. Numbers tell a piece of story. The Haas gives 1626 mm X too, cool, but rapid tops at 16.5 m-min, that is half the Korean figure, cycle time suffers. Mazak pushes 1800 mm X, nice, yet price skyrockets and delivery stretches past 24 weeks nowadays. The DNM lands middle ground, lead time roughly 12 weeks to Jebel Ali port.
Bullet reminder:
VF-7: slower rapids, cheaper upfront, higher spindle rebuild frequency
VTC-800: travelling column grants longer parts, but floor space doubles
* DNM 750 II: decent rapids, moderate price, compact footprint
Choose your poison, as old machinists say.
Nobody in Dubai orders the thermal-growth pack, the ambient swings there are small indoors. What they do take:
– 40-tool magazine upgrade, saves mid-shift reloads
– High-pressure CTS 70 bar pump for Inconel drilling
– Renishaw OMP60 probe, because dial indicators are slow
– Oil skimmer, coolant lasts longer, less smell end of week
Every extra bolt adds weight, machine still stays under 15 tons, fits a standard low-bed trailer.
The spindle cartridge pulls in under 90 minutes if a lift table is ready. Way covers detach with four cap screws, I timed it, 6 minutes flat. Grease ports are grouped, no awkward ladders. Control backup via USB, firmware reset is DIY friendly.
Energy draw around 35 kVA cutter-in, air demand 6 bar loops only when tool change fires. Coolant sump 400 L, fill it once a month if you skim right.
Aerospace tier-two shops in Al Ain, oilfield component makers along Mussafah, jobbing outfits that keep three VMCs spinning 24/7. They like that the machine does both aluminium framing and 17-4 heat-treated parts without swapping the entire tooling library.
The DNM 750 II is not a miracle box, it will not machine by itself, but it hands you space, horsepower, and predictable behavior. Pair that with a control your crew already trusts, and downtime anxiety drops.
And that, frankly, is why so many firms sign the PO even before the demo piece cools down.
