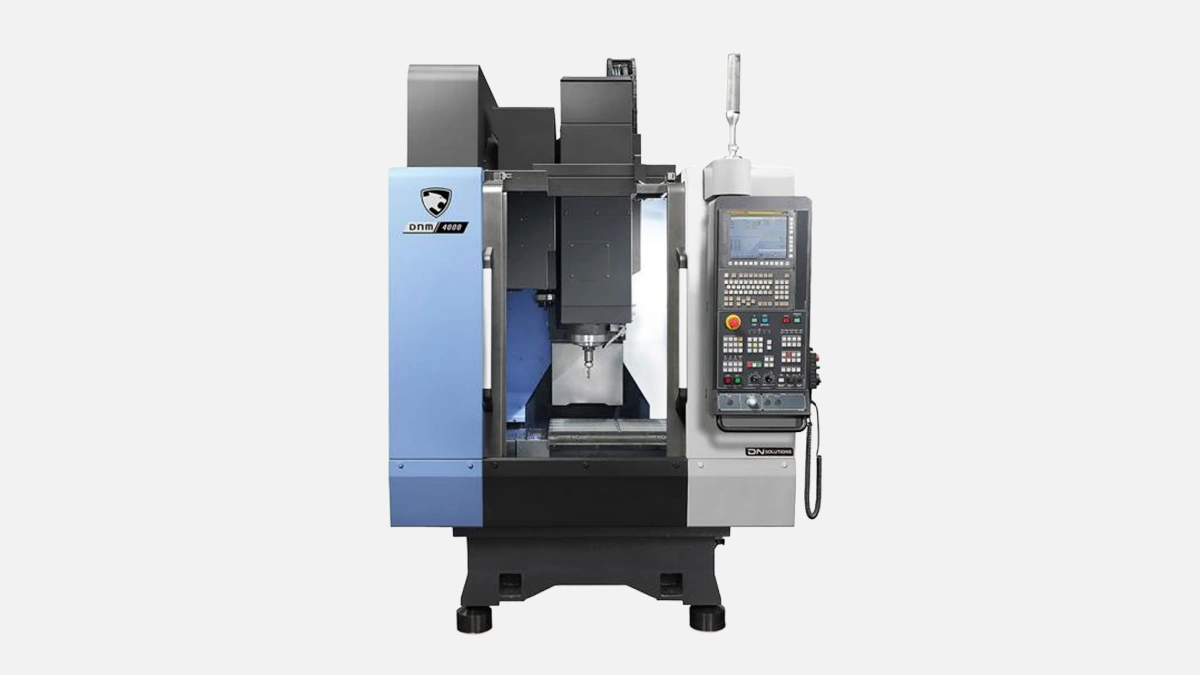

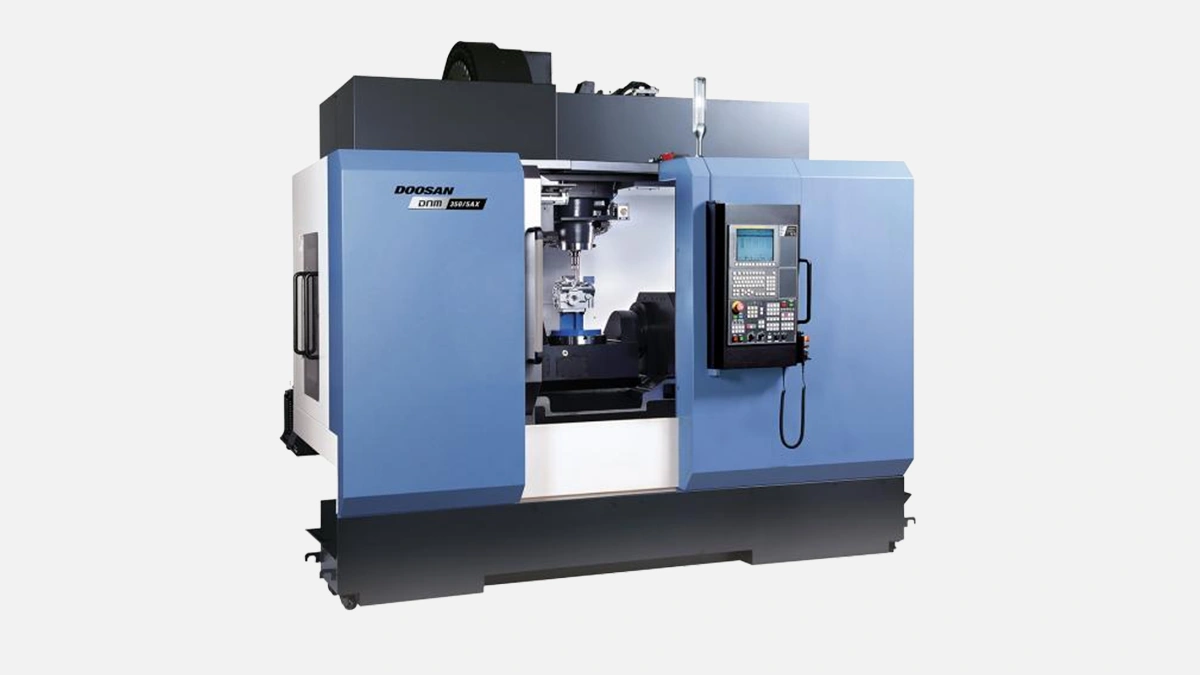

Doosan – DNM series

Fast talk, right from the shop floor. UAE job shops chase delivery times. Tight lead times, hotter weather, mixed batches. Doosan has been around since 1976, pumping out more than 120 000 CNCs so far. The DNM line, the bread-and-butter VMC range, went through 4 design cycles already. Cast-iron frame stayed, controls, drives, coolant plumbing all moved ahead.

Now a longer thought, it drags a bit, because every production manager I met in Sharjah keeps juggling subcontract work for oil and gas one day then mild-steel brackets for local construction the next and they need a mill that just eats whatever program lands in the queue, no drama, no begging for service.

Core build

Short list first, tastes better that way.

• One-piece Meehanite casting, wide saddle, keeps the head rigid, even when Z is poked out to full 510 mm.
• Double-anchored ballscrews, chilled through the nut, boring but critical in desert climate.

Longer unpacking. The thermal drift between dawn and late afternoon in Abu Dhabi can be way above 20 °C. On some lighter VMCs that means chasing offsets every two hours. The DNM block, all 8.7 t of iron in the 5700 variant, dampens that swing, you dial once at setup and pretty much forget it. Cool, literally.

Cutting performance

Big words. Better skip them. Let numbers talk.

The table shows the spread. Notice how the 6700 dials spindle speed down to 8000 rpm yet lets you slap a 1300 kg fixture. That mix sits well with valve-body machining where hogging cuts trump surface speed.

Two extra sentences, just to wrap the table. Operators switching from 4500 to 5700 do not need to relearn offsets, the control macros stay identical. Swap part numbers, press cycle start, done.

Automation options

Short again.

• Plug-and-play pallet changer, factory wired, arrives in the crate, bolts on under 3 h.
• Top-mount shuttle conveyor, fits under 2.4 m ceiling, handy for retrofit lines in Ajman where floor height is stingy.
• 4th-axis rotary, 220 mm dia, same drive on all three frame sizes, keeps spares simple.

Long stringy thought. I have seen one DNM 5700 in Dubai paired with a cobot feeder, they cut 7075-T6 wheel hubs nonstop, the only downtime being prayer breaks and tool probes. The spindle encoder spits positional data straight to the robot through Fanuc FOCAS, no middleware box, less stuff to fry in heat.

Series comparison

Inside the family, the jump from 4500 to 5700 brings 62 % bigger table, not a typo, that is what Doosan staff swears by at every expo. The 6700 then stretches X by another 250 mm but you pay in footprint. Floor plan grows to 3600 × 2900 mm, measure your bay before you fall in love.

Competitive landscape

Readers keep asking, why not Haas VF-2 or DMG CMX 600. Quick shootout.

• Cast iron mass: DNM 5700 sits around 8700 kg, Haas VF-2 about 3500 kg, CMX 4000 kg. Mass is free stiffness, no jokes.
• Coolant pressure: stock 20 bar through spindle on DNM against 13 bar on VF-2 unless you pay for a booster.
• Service hubs: Doosan holds a direct spare depot in Jebel Ali since 2014, parts land next morning across UAE.

Two sentences more. That depot story matters because air freight delays kill production quicker than power cuts. Users who jumped ship from Haas quote that one reason over and over.

Buying rationale

Here is where it gets emotional. Folks with 10–15 CNCs often want identical control across the fleet. Doosan slaps Fanuc 0i-MF Plus on every DNM, no option drama. You can dump files across ethernet, drip feeding big molds, and the operator does not scratch his head switching alphabets.

Another bullet burst.

• Patrolia steel fabricator in Ras Al Khaimah trimmed cycle time on jack-up rig plates by 38 % after swapping from a knee-mill to DNM 4500, same cutters, same code.
• A jewellery die shop in Deira runs DNM 4500 with a 15000 rpm upgrade spindle, they milk mirror finishes in brass, no bench polish later.

Longer, winding line. Yes, there are cheaper Taiwanese frames on the market, but when the spindle tears a Ø63 mm face mill into duplex stainless and coolant is more steam than liquid, you want bearings rated for it, not hope and prayers.

Operation costs

Tooling you know, but electricity sneaks in. Average draw at 60 % load is around 14 kW on the 5700, measured, not brochure gloss. In Sharjah, with a tariff of about 0.30 AED kWh, that is under 4.2 AED an hour, peanuts next to labor.

Chip handling, small note. Standard auger presses aluminium fines pretty tight, you dump a 200 L bin maybe once a shift. Good for sweaty summers, less walking with trolleys.

Practical lists

First one, things I like.

• Box-in-box column keeps the Z motor close to spindle center, less whipping on reversal.
• Grease lubrication, no messy way-oil puddles, floor stays cleaner.
• Macro-B enabled from factory, you do subroutines without license drama.

Second list, caveats I usually whisper.

• Sheet-metal enclosure needs extra sealant if you blast 25 bar coolant all day.
• Renishaw probe costs extra, not bundled.
• Ladder logic locked, you cannot hack extra M-codes easily.

Maintenance window

Doosan claims 2000 h between mandatory checks. Reality, you pop covers every 1000 h anyway because chips migrate. The Cougar coolant pump O-rings survive roughly 18 months in salty Gulf air, budget for that. Spindle cartridge swap takes under 5 h, done one last Ramadan, two techs, no overtime pay.

Conclusion

Nearly done. The DNM series sits in a comfy middle tier, not boutique, not bargain bin. Cast iron guts, decent horsepower, fast rapids. Companies machining oilfield flanges, medical blocks, auto aftermarket bits, all pick it because it behaves predictably and holds resale value. Put bluntly, it is the mill you buy when you just want parts out the door.

Those are the advantages, and that is why medium-sized plants across Dubai Investment Park keep lining them up back to back. Simple story, predictable outcome.
