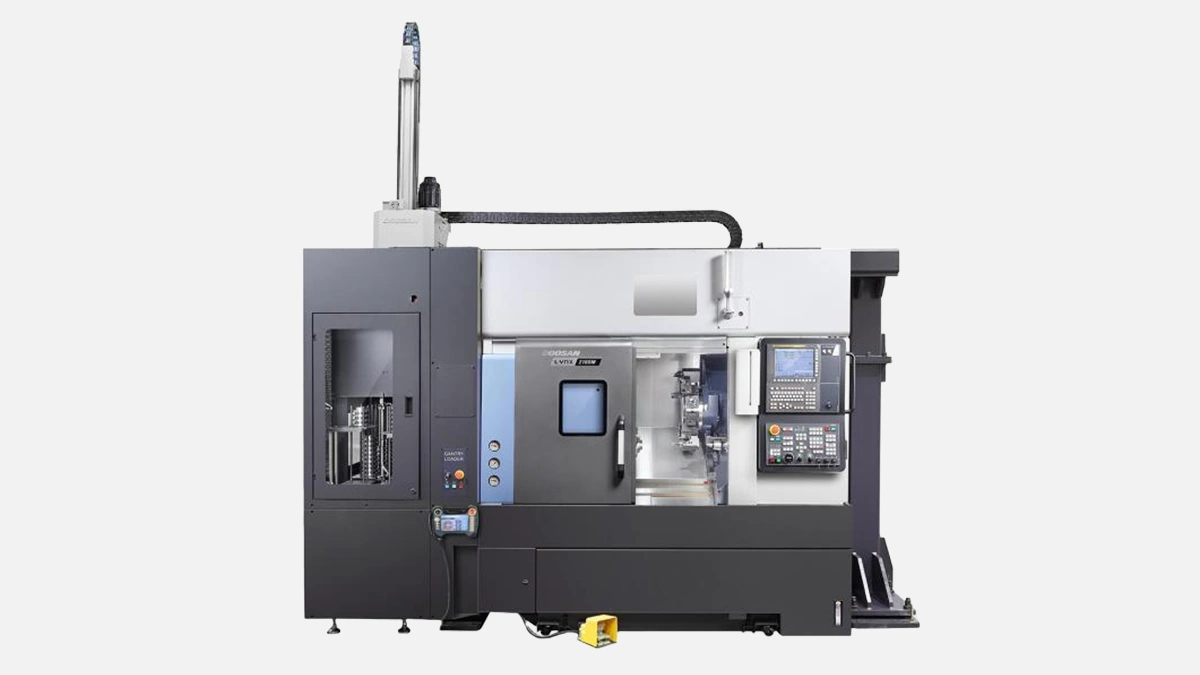

Compact Doosan Lynx 2100 lathe, 6000 rpm spindle, built for Gulf heat
Short intro first. Doosan then DN Solutions, they have been pouring metal and ideas into lathes since 1976. Roughly 12000 machines every year, that is the ballpark, and the Lynx family alone counts over 15000 units running worldwide. Numbers buzz, sure, but in Sharjah or Abu Dhabi the only question is, will the thing cut reliably in the heat. Spoiler, yes, more on that below.
Cast iron bed, one piece, meaty. No gaps, no weird inserts. A rib network so dense it looks like someone dropped spaghetti into the mold and let it freeze. The spindle is belt driven yet balanced, vibration stays low even when the operator gets greedy with feed. Thermal drift, tested by users on practicalmachinist, shows under 30 micron on eight hour cycle, not lab fantasy, shop floor oil mist and yelling included.
Even after the list, one more thought. The control panel sits on a swing arm, you can pull it close, avoid that crane operator neck. Fanuc 0i-TF Plus by default, Siemens possible, but few pick it in the Gulf, habit rules.
Another short burst. Rapid on X hits 30 m per min, Z climbs a bit higher, 36. Not a record, not slow either, sweet spot where slides do not scream. Ball screws are class C3 ground, preload you feel when hand jogging, slight resistance that tells you backlash is strangled.
Before digging deeper let us drop a table, humans love tables, numbers line up, brain relaxes.
| Variant | Y axis | Sub-spindle | Max length | Bar capacity |
|---|---|---|---|---|
| Lynx 2100A | No | No | 350 mm | 51 mm |
| Lynx 2100B | No | Yes | 400 mm | 65 mm |
| Lynx 2100LY | Yes (105 mm travel) | Yes | 510 mm | 65 mm |
The letters look random, they are not. “L” brings Y axis, “Y” is the obvious clue, “B” signals the bigger bore and a slightly longer bed, so a 2100B feels like the beefy cousin that eats two shawarmas for breakfast.
A short pause. Table digested. Moving on.
Coolant tank holds 240 l. In UAE summers that liquid turns sauna hot, operators often swap the standard radiator for an external chiller. The good news, pump pressure tops 8 bar out of the box, enough for solid carbide grooves on stainless without steam explosions. Conveyor comes in three flavors, hinge, scraper, or magnetic. Most job shops in Dubai pick hinge, stainless hinge if budget allows, sand dust is brutal, cast chips mix with silica and grind regular mild steel chain to dust.
Scratching head, jumping topic.
Fanuc macros leave room for custom probing. Many shops set a Renishaw arm right inside the door, the macro turns as simple as G65 P9810. The lathe does not ship with the probe, yet the wiring harness is already tucked behind the sheet metal. Less downtime when you finally order it.
After the bullets let us breathe. The CNC world is full of arcane numbers, this machine at least lets you hide most of them under User Softkey 2, rename it “coffee” if you want, nobody will stop you.
Real story. A shop in Jebel Ali cranked out 4140 shafts, 75 mm diameter, depth of cut 3 mm per side, feed 0.25 mm per rev, 120 m/min surface speed. They logged 950 parts before swapping the primary insert edge. That beats their former Mori SL 150 tally by roughly 18 percent, not earth shattering yet enough to pay for operator snacks every shift.
Power draw idle is roughly 3.8 kW, full cut near 24 depending on load. Dubai rates hover around 0.30 AED per kWh for industry. Do the math, night shift stays cheap. Also, the spindle fan only kicks above 2500 rpm, so bar work at slow grunt does not waste juice.
Lynx 2100 is middle child. Under it lives 2100 A, short, nimble, over it sits the 2600 which swings 400 mm. Pick the 2100 when footprint matters, width stays at 1700 mm. The LY variant adds +400 mm depth though, mind the space behind the machine, walls in old Sharjah sheds are closer than you remember.
Time for some straight comparison, no sugarcoat.
Doosan sits in the comfortable middle, price moderate, support broad, and most important, spare parts ship from the Dubai logistics hub, not from Seoul directly, wait time usually under 48 h.
List time again, but first a phrase. The 2100 is not a trophy, it is a mule. People buy it to run dirty parts that still pay the bills. Now the promised bullets.
Notice the pattern, moderate diameter, medium length, lots of material variety. The spindle liner swap takes under 4 min once you practice, so shifting from 42 mm bar to 65 does not wreck your takt time.
Two sentences to wrap that. Those jobs keep lights on, and the 2100 series does them while the operator is busy arguing about football.
You access the hydraulics from the rear, two bolts, cover off, simple. Filters under the coolant tank reachable without removing the conveyor, thanks. Grease cartridges last about 1000 cutting hours, the control pops an alarm when the counter hits 950, no guesswork.
Most machinists in UAE already touched Fanuc, so the hands on time shrinks to hours. The manual is thick, 840 pages, but you skim chapter 9 for tool offsets and you are already making chips. Doosan added QR codes on the door stickers last revision, scan with phone, jump to a YouTube playlist, the one with the Korean engineer speaking perfect English. Helpful, a bit awkward, yet works.
A lathe is not just torque numbers. It is that gut feel at 2 AM when something starts to howl. Users report the 2100 keeps noise down, spindle in low gear emits a steady hum instead of a wail. Vibration sensor from Omron built in, you can hook it to the control but most shops never bother, they just listen, old school.
Heat tolerance, part availability, mid level price. That trio beats sexy brochures every time. Water evaporates fast in the desert, coolant concentration drifts, yet the Lynx keeps the pump seal alive because it uses a mechanical seal rated up to 85 C. Small detail, big peace of mind.
I could ramble longer, but the summary is clear. If you need a compact, sturdy, predictable lathe that does not fuss about triple shift schedules, Lynx 2100 ticks the box. Not perfect, no machine is, yet it bites through steel and aluminium without drama. That is why so many fab shops from Ajman to Ras Al Khaimah keep buying the same blue box.
Wrapping up with a quick list then done.
And that, my friend, often decides who wins the quote.
