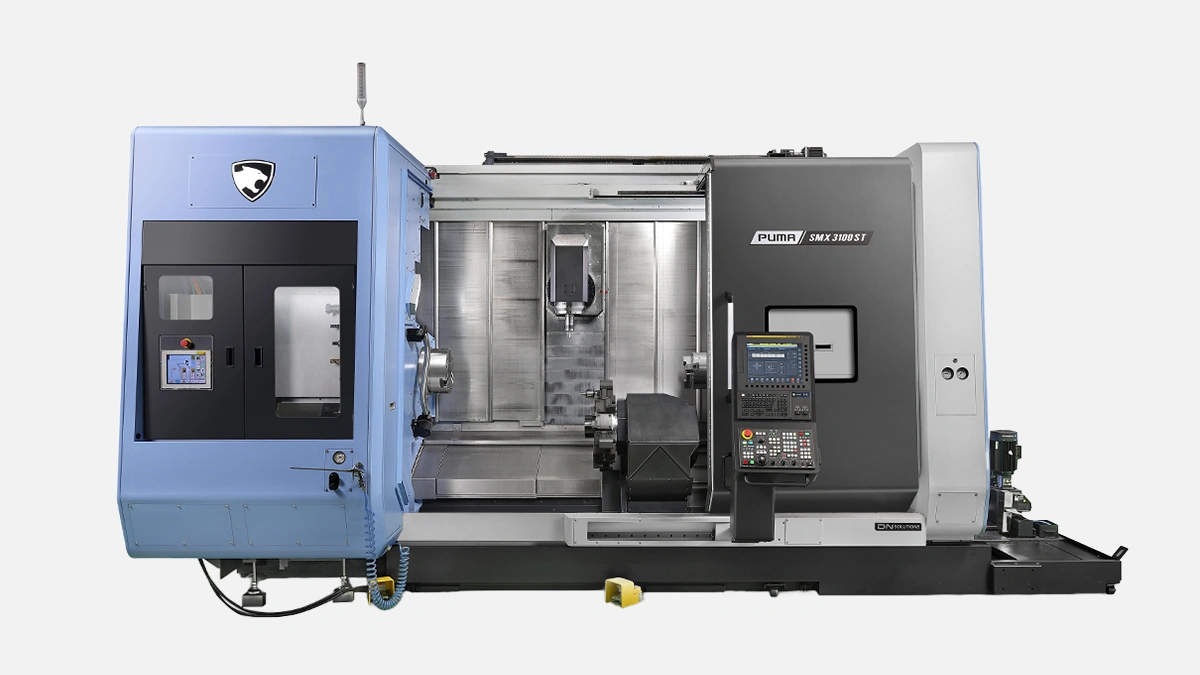

Doosan SMX 2100/3100: mill-turn center with 240° B-axis, 12000 rpm head, bar up to 102 mm.
Short line, no drama.
Then a longer ramble drops in, about how you walk through a noisy shop in Sharjah, coolant smell, chips everywhere, and there it is, shiny Doosan SMX, humming like a chilled camel in the evening breeze, ready to chew through 4340 steel without breaking a sweat, or at least that is what the operator claims, half shouting over the extractor fans.
It is a mill-turn center, right, but not a plain vanilla one, it packs both a turning spindle and a full-blown 12000 rpm milling head, parked on a swiveling B-axis. You rough on main spindle, hand the part to the sub, mill, drill, tap, back-cut, and out comes a finished valve body for a desal plant. One hit, done, operator scrolls TikTok while the turret does the dance.
Before we dive, a quick reminder, Doosan Machine Tools has been pumping out equipment for over 40 years, portfolio sits around 150 models, and this SMX line is already at generation 3, so no beta-tester vibes.
Two sentences first, because rules are rules, and readers need context. The 2100 targets parts under 8″ bar, the 3100 stretches things for up to 12″ billets, everything else feels like cousins sharing the same toolbox.
| Feature | SMX 2100 | SMX 3100 |
|---|---|---|
| Max swing | 660 mm | 800 mm |
| Max turn length | 1585 mm | 2180 mm |
| Bar through spindle | 76 mm | 102 mm |
| Main spindle power | 22 kW | 26 kW |
| Milling spindle | 12000 rpm, 22 kW | 12000 rpm, 22 kW |
| Tool magazine | 40 or 80 | 40 or 80 |
Notice how the cutting envelope scales while keeping the same head, smart choice, spare parts stay common, stocking becomes easier for Gulf shops that run both sizes side by side. After the table you probably expect a polite wrap-up, so here it is, bigger machine eats larger stock, everything else feels identical, end of story.
Metal shops in Abu Dhabi love repeatability, because downtime in a 45 °C yard is ugly. SMX machines come with tandem roller-type linear guides, those things survive the heat cycles better than cheap rails, less stick-slip when the AC fails. Another bit, the lubrication unit is factory-preset for ISO VG-68 oil, exactly what most local suppliers truck in, no fiddling with exotic greases.
Two bullets in, I stop. Enough.
Fanuc 31i-B5 comes as default, but plenty of buyers tick the Siemens 840D because their older Puma lathes already speak that flavor. Either path, you get a touchscreen, 15″ diagonal, yes, the glass holds fingerprints, live with it. The real candy lives inside: Doosan’s Custom Macro package is unlocked, so your programmer can sling probing cycles without paying extra, thanks, that saves roughly 2 kUSD per seat.
Operator Joe (actual guy from Ajman, drinks karak by the litre) swears the tailstock foot-pedal is positioned weird, he had to bolt a wooden spacer to reach comfortably, tiny gripe but tells you the machine is built by tall Koreans. On the plus side, Joe changed the milling spindle belt at 3500 cutting hours, job done under 40 minutes, so maintenance is not nightmare fuel.
Now a contrasting dash, what they moan about:
– Door interlock delay, around 1.2 seconds, feels sluggish during setup.
– Chip conveyor motor draws 0.8 kW, not crazy but adds to DEWA bill.
If you eyeball only catalog pages, 2100 and 3100 look copy-paste, but the frame casting on 3100 is beefier at 12 t bare, that extra mass helps kill vibration when you hog stainless. Also, optional 80 tool chain makes sense only on 3100, because the part normally stays longer in the cut, more stations, more fun. So ask yourself, are you mostly cutting flanges under 300 mm, go 2100, else pay for the bigger sibling.
Quick bounce, no elaborate violin strings. Compared to Mazak Integrex i-200, the SMX 2100 gives you a slightly longer Z stroke (1585 mm vs 1500 mm), yet footprint stays narrower by roughly 200 mm, handy for tight shops in Al Quoz. On the Haas DS-30Y with milling head kit, you lose the full B-axis, so compound angles become a headache, need extra ops. DMG MORI NTX 2000 does have the toys, but wait times in the Gulf sit at 14 months, Doosan lists 6 to 8, that difference alone closes many deals.
Three phase 415 V, 80 A breaker for 2100, add another 10 A for 3100 due to bigger servo amps. Foundation, concrete 300 mm thick, 3500 kg/m² loading, nothing exotic, most shops already exceed that, still worth the reminder. Rigging, low center of gravity helps, but you need a crane rated 20 t just to be safe, do not cheap out.
Doosan keeps a regional part hub in Jebel Ali, forward stocked with belts, filters, spindle cartridges. Average lead for critical assemblies sits around 3 days, not week-plus like some European competitors. Local techs finish training program in Changwon every 12 months, speak English plus a pinch of Arabic slang, you will survive.
Everyone asks about power numbers, here they are bolded and plain. Standby draw 3.2 kW, cutting peaks 48 kVA when both spindles hammer at once. Compressed air 6 bar dry, 300 L/min, your existing Kaeser screw should cope. Consumables per 1000 spindle hours: oil 12 L, filters 2, belts 0.4 on average, translation, about one belt every 2500 hours.
Before signing P-O, tick these boxes, trust me,
* verify pallet height at your roller door, machine arrives on 150 mm skids.
* book coolant that matches Doosan’s approved list, sodium nitrite level under 0.1 %.
* ask for second chuck pressure regulator, live parts want lower clamp.
Okay, list closed, breathe.
Job shops feeding the ADNOC supply chain, aerospace fastener houses in Ras Al Khaimah, even a university lab in Al Ain. Common thread, mid to high mix, small batches, need flexibility without juggling fixtures. The B-axis and sub spindle deliver that.
No sugar coating, machine is heavy, a tad thirsty on electricity, and the door delay will annoy setup crew, yet the cut-to-chip performance plus short lead time sway many. If your parts jump between turned OD and funky angled features, the SMX series stays attractive. That is why so many Gulf outfits sign repeat orders after the first one proves itself.
And that is basically it, bolts tightened, spindle warmed, chips fly.
