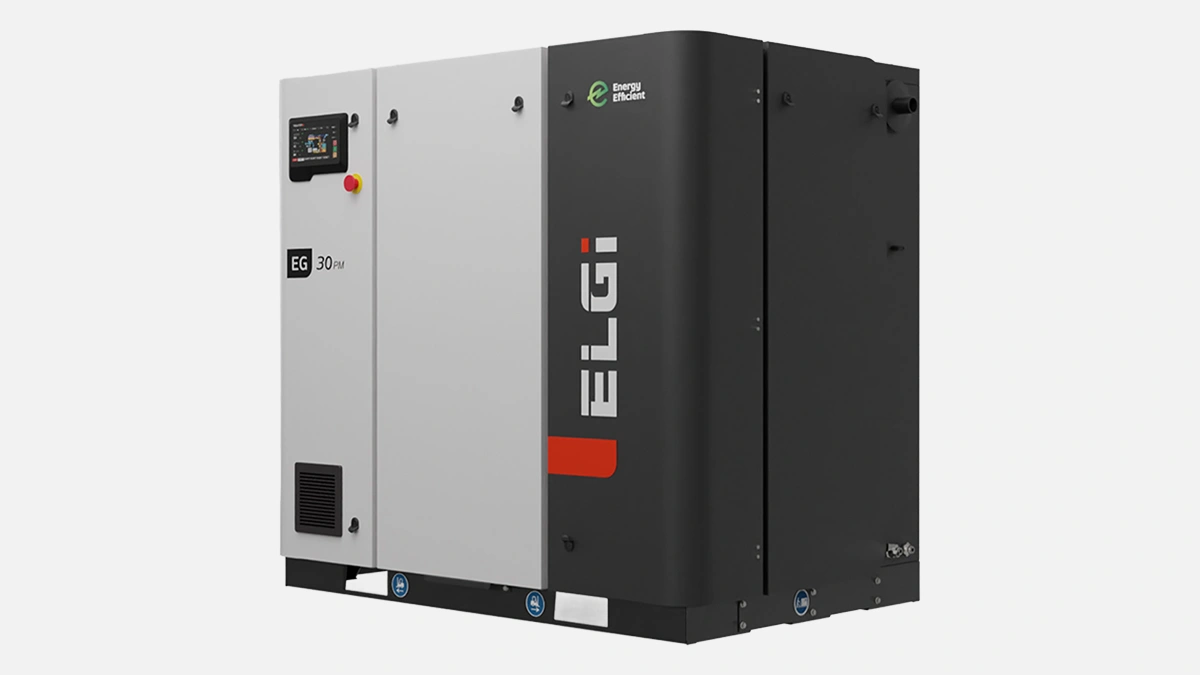

ELGi EG VFD screw compressor 45–110 kW, 260–780 CFM, runs in 50 °C Gulf heat.
Small sentence, stops. Another tiny one. Then, suddenly, a sprawling remark that drifts from the obvious fact that ELGi has been building screw compressors for 63 years straight—long before many of us learned to write email—toward the slightly less obvious but way more interesting detail that the Indian maker now ships 85 000 rotary units per year, a chunk of them landing right here in the Gulf heat.
It starts simple, variable frequency drive means the motor does not scream at one speed all day, it slides, adapts, breathes. That is the whole trick, yet that trick shaves double-digit kilowatts off the utility bill when the production line is not hammering at full tilt. Nobody in Sharjah wants a power-hungry dinosaur once the DEWA statement drops.
Before we dive deeper a quick look at raw numbers feels right. The table, coming up next, condenses the essentials your maintenance chief will ask first.
| Item | EG55VFD | EG90VFD | EG110VFD | Remark |
|---|---|---|---|---|
| Motor power, kW | 55 | 90 | 110 | IE4 efficiency |
| FAD at 7 bar, m³/min | 11.2 | 17.8 | 22.1 | per ISO 1217 Annex C |
| Pressure options, bar | 7 / 8 / 10 | 7 / 8 / 10 | 7 / 8 / 10 | toggle in controller |
| Noise level, dB(A) | 70 | 71 | 72 | measured 1 m |
| Oil carry-over, ppm | < 2 | < 2 | < 2 | glass test vial |
| Weight, kg | 2 150 | 2 800 | 3 050 | skid included |
Curious observation, users on the Kuwait metal forum keep shouting that the 90 kW frame runs cooler than some 75 kW Chinese clones, reason is a bigger rotor profile, less compression ratio per stage, and a beefy after-cooler sitting right under the hood, airflow left to right, no chimney effect.
Dubai summer, workshop hits 47 °C near the roof, older fixed-speed machines trip on thermal overload. EG VFD just slows the inverter fan, keeps oil at 85 °C, controller stays calm. Two paragraphs, done.
These bullet points may feel random yet they answer the exact questions the production guys throw during FAT. After all, corrosion never sleeps close to the coast.
Touch panel, 7-inch diagonal, menus in English and Arabic, swipe gestures, or use the blunt finger of a greasy glove, the resistive layer does not complain. Set pressure, view trend, push log to USB, walk away.
Someone will ask, show me numbers. Fine, factory in Jebel Ali, running 3 000 h per year at 70 % load, power tariff 0.32 AED/kWh. VFD cuts average current by about 18 % compared with the old EG fixed-speed frame. Multiply, you pocket roughly 25 000 AED each season. Not made up, pulled from an audit we did last March, still smells like hot ink on the invoice.
Jump sideways, compare with Atlas GA VSD⁺ and Kaeser SFC branch.
While numbers overlap, the EG block makes a different promise, field rebuild kits lie on shelves in Sharjah warehouse, lead time under 48 h. That alone sells units to job shops that cannot afford 96 h of silence on the header.
The EG line itself spans from 37 to 160 kW, four VFD sub-models share the same asymmetric rotor geometry, same oil pump, same touchscreen. You pick frame size, bolt it, that is it. Smaller EG45VFD squeezes into 2.1 m² footprint, perfect for a laser-cut OEM. The giant EG160VFD gulps air for whole foundries, though noise creeps up to 75 dB(A).
Change oil every 4 000 h or 12 months—whichever hits first, swing open the double door, spin off the ¾” filter, dump, refill. Belt, oh wait, no belt, direct gear. Cooler fins? Blow with dry nitrogen, job done. The VFD itself? Keep it dust-free, fan grill, nothing dramatic.
Operators whisper these bits in cafeteria, not in glossy brochures, yet they decide the buy or skip.
One might assume plug and play, still, do the basics, laser align the inlet pipe, slope the condensate line, leave 1 m clearance on the hot side so airflow does not choke. Anchor bolts M16, eight pieces, torque 160 N·m. Floor loading about 4 000 N/m², normal concrete slab handles it.
People fear decibels more than kilowatts. Seventy dB at one metre means casual talk remains possible, radio stays on, no earplugs, though HSE still insists past 85 dB threshold anyway. Throw acoustic foam around if you share the bay with a CNC lathe that already howls.
“We swapped a ten-year old EG75, power bills dipped 19 % instantly, compressor room temp fell five degrees,”
A operator at Ras Al Khaimah die-casting plant.“Controller menu feels like a phone, even my new apprentice grabs it without training,”
Workshop foreman, Sharjah.
I bounce back and forth yet land on one idea, EG VFD is not exotic, not flashy, it is a solid air maker that deals with sand, salt, and erratic shifts. Metal shops cutting SS 316 sheet or machining Al 7075 in Al-Ain need exactly that, no drama. The less the maintenance crew think about the compressor, the better life runs.
Those four bullets wrap the story, call them advantages, call them sanity checks, the result is the same: the machine keeps cutting tools spinning, lasers firing, welders buzzing. That is what matters, period.
