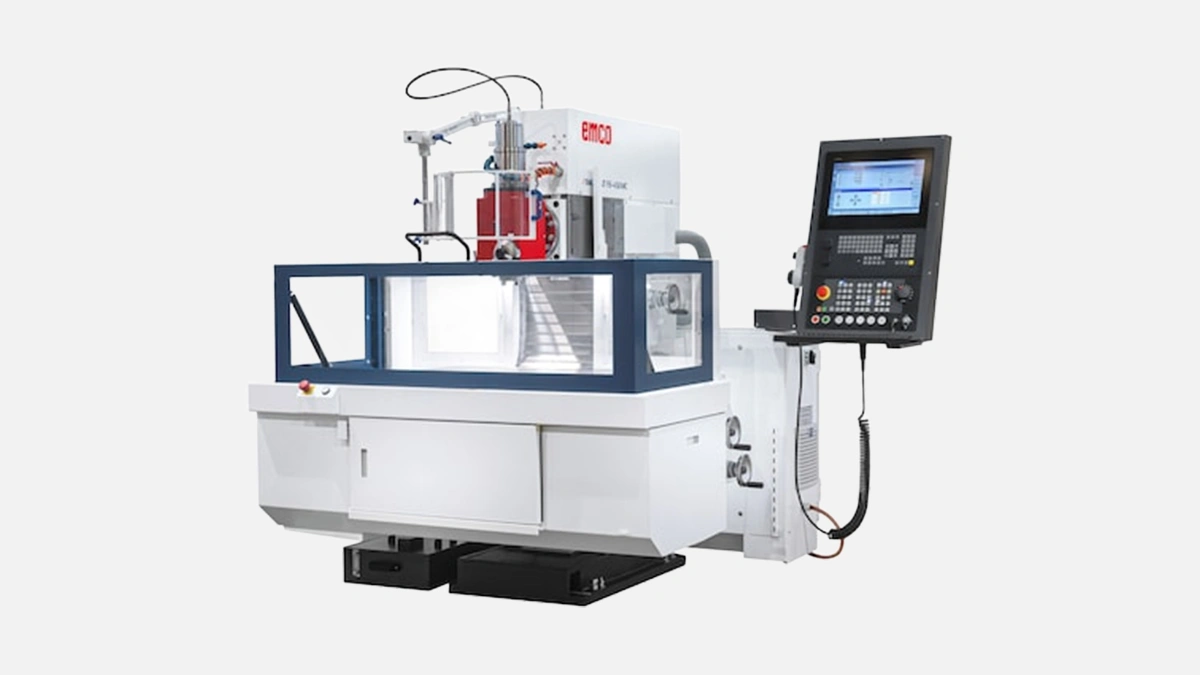

FB-450 MC handles steel milling in one setup, 6300 rpm spindle, 700 mm X-travel, compact footprint for UAE subcontractors
Small shop vibe, loud floor, that metal smell, you unlock the spindle guard and the EMCO badge pops right in the eye, red on grey, looks confident. 50 years on the market, give or take, and the Austrians still stamp every casting in Hallein, they say about 2000 machines roll out yearly, not all of them FB of course, but the legacy sits heavy.
I was told the FB-450 line went through 4 iterations, MC being the last to grab a full-blown ATC and a C-axis upgrade. Sounds neat, but let us peel it layer by layer.
Nothing fancy here, yet numbers speak louder than marketing. Before the inevitable bullet storm, feast on a small table. Two columns, straight facts, no fluff.
| Item | FB-450 MC | Prev gen FB-450 |
|---|---|---|
| X travel | 700 mm | 600 mm |
| Spindle top speed | 6300 rpm | 4000 rpm |
| Tool pockets | 20 | 12 |
| Rapid feed | 24 m/min | 15 m/min |
| Position repeatability | ±0.003 mm | ±0.005 mm |
You see the jump, nothing jaw-dropping, but exactly the gap that turns an evening overtime into a decent bedtime.
Two sentences then bullets, promise. So, talking to a guy in Sharjah who cuts stainless valve bodies all day, he grumbles about heat, sand, voltage swings. Yet the FB-450 MC keeps its cool, mostly because the spindle motor sits on a liquid circuit and the control cabinet packs a separate chiller. Now the list.
Back to prose, the through-spindle coolant is a low-key savior, you push deep pockets in duplex steel and the blue mist keeps the edge happy.
Softer stuff first, 6082 aluminum goes like butter, 4 mm doc, 12 000 mm/min, done. On the harsh side, Inconel 718 still bites, so cut it wet, short bursts, 0.15 mm/rev, chatter settles.
EMCO stuck a Sinumerik 828D on Gulf shipments, while European clients often pick Heidenhain. Menu is dry, icons look 2009, but conversational cycles shave days when the operator is more lathe guy than G-code geek. My own note, plunge retract distance defaults to 5 mm, change it or waste air-cut seconds.
You open the sliding doors, look under the table cover, and a simple felt wiper stares back, zero labyrinth gimmick. Spares hit Dubai Free Zone in 3-4 days, EMCO Middle East warehouse claims 92 % fill rate, I cannot verify but DHL boxes do appear quick.
Climate, small batches, power tariff – that trio shapes purchasing. The FB-450 MC scores because
Again, no miracle, just ticks in the right columns.
FB-350, FB-450, FB-600. The baby 350 mm X-axis cannot swallow gear housings, the 600 version eats them whole but stretches budget and crane capacity. Middle child FB-450 balances, easy like that.
Take a Haas VF-2SS, roughly similar travels, price aside. Haas spins 12 000 rpm, yes, sweet on aluminum, yet table load tops 300 kg while EMCO offers 450 kg. Brother Speedio S700? Lightning rapids at 50 m/min, still limited to 30 tools in BIG-plus format, and the casting is lighter, some users report vibration over 8 000 mm/min feed in AISI 1045. FB-450 MC, slower in rapids, sturdier in cut, simple.
Operator time per job often beats cycle time in Gulf job shops. Swing the pivoting control pendant, clamp the part, zero it, run warm-up macros, all without walking circles. Three jobs per shift, each saves 4 minutes setup over the old manual mill, you free 12 minutes, that is 60 extra parts a month on light components. Not huge, still money.
I will not sugarcoat, tool change whack is audible, about 78 dB, night shifts hate it. Also the chip conveyor is optional, penny-pinching buyers regret it on day two when pockets flood.
Sure, you can chase faster spindles, bigger tables, but the EMCO EMCOMAT FB-450 MC lives in that practical middle. Casting mass, travels, service reach, all match the day-to-day metal tasks circulating in UAE subcontract markets – manifolds, hydraulic blocks, mold inserts. Owners like it because downtime stays rare and the Siemens control talks same post as their turning center next door.
Key take-home: match the spec sheet to the actual bill of materials, and the FB-450 MC will quietly grind profit without screaming headlines.
