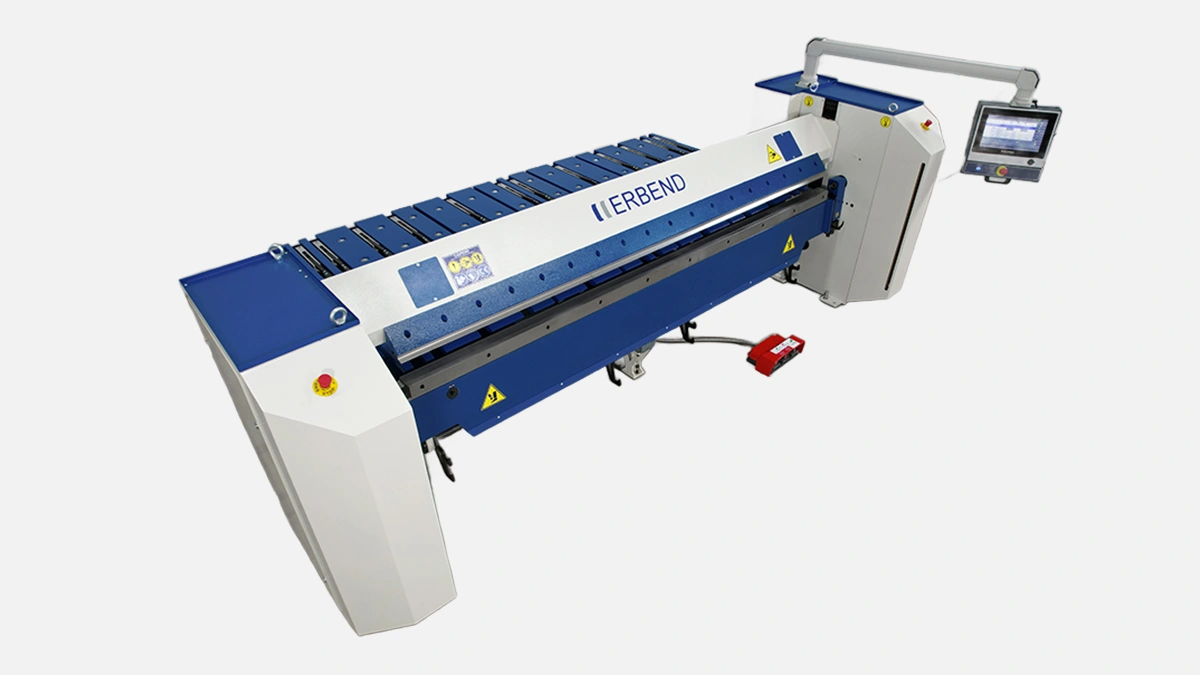

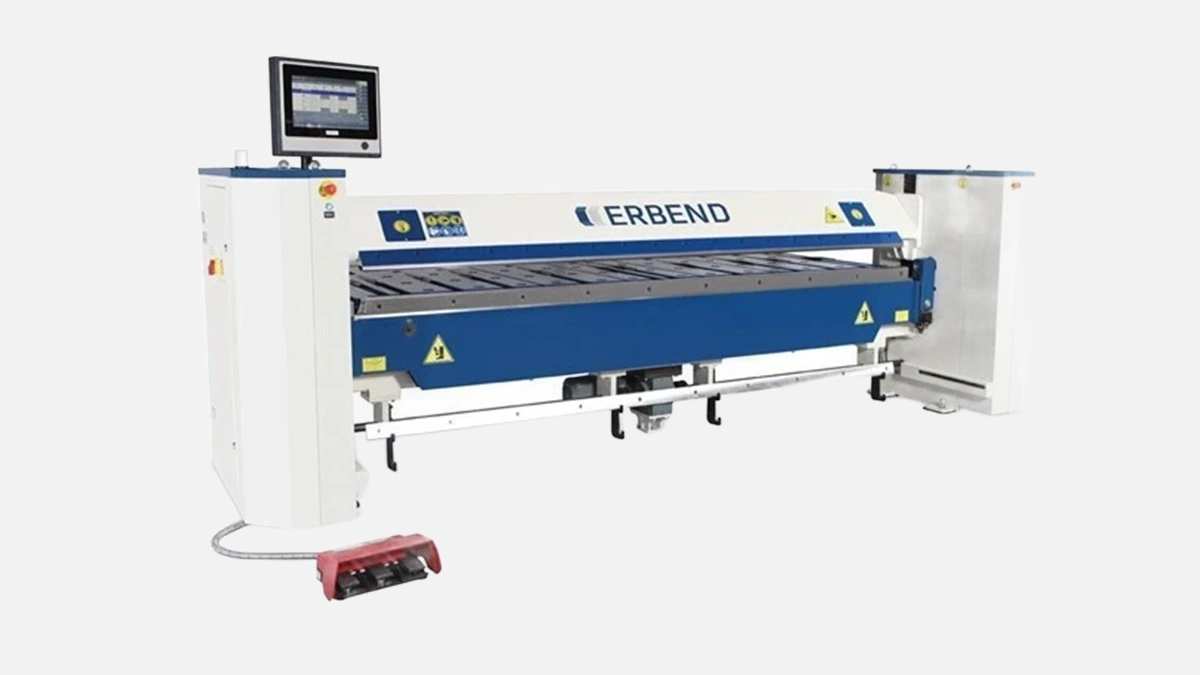

3.2 m CNC folder for 1.5 mm steel with CybTouch touchscreen and 1000 mm back-gauge, fits GCC workshops
Short phrase first. Sparks curiosity. Then a long line, almost breathless, explaining how a 3.2 m folder that accepts 1.5 mm mild steel sneaks into workshops from Sharjah to Ras Al Khaimah and somehow makes seasoned operators nod with a grin because the back-gauge hits zero every single time, well almost.
So, Erbend, Turkish brand, three decades on the market, pumps out a couple of hundred folders yearly, the MFC series alone went through 4 redesign waves, the 3215 sits right in the middle, not a baby, not a giant.
Before the numbers a few words. People keep asking in WhatsApp groups, Does it really keep accuracy over a full shift in 45 °C shop heat. Quick answer, yes, if the hydraulic oil is not garbage.
| Metric | Value |
|---|---|
| Max bending length | 3200 mm |
| Sheet capacity, steel | 1.5 mm |
| Opening height | 100 mm |
| Back-gauge stroke | 1000 mm |
| Axis count | 2 (X, Y) |
| Main motor | 4 kW |
| Cycle time 90° bend | 3.2 s average |
| Footprint | 4300 × 1650 mm |
Table done, let it breathe. Those numbers look dry but on the floor they translate into around 450 bends per hour on a simple part, give or take coffee breaks.
Touchscreen, CybTouch 12, no tiny buttons, no cryptic DOS style. I poke the screen, drag an angle, boom, simulation pops. If you hate post-processors you still can dump a DXF over USB and the control auto sequences the bends, not perfect, yet saves maybe 8 minutes per program.
After the list, a thought, older operators still prefer hand wheels, but after a week they forget the nostalgia, muscle memory rewires.
Frame is welded ST52, stress relieved. I banged it with a hammer, only the paint complained. Hydraulic cylinders sourced from Bosch Rexroth according to the plate, hoses local. Clamping fingers ground to Ra 0.8, decent, not mirror, good enough.
Finish the list, swing back, paint chips easily near the foot pedal bracket, cosmetic but still annoying.
Operator stands smack in the middle, dual pedals, one for clamp one for fold. I like the optional tilt table, UAE shops cutting 1 mm Alu trays use it all the time to avoid sliding. Noise below 72 dB at one meter, you can chat without shouting, unless the compressor kicks in.
I visited a facility in Jebel Ali, they fold AC duct corners, thin galvanized sheet, three shifts. Their log shows mean downtime 7 min/day mostly for tool change. They keep an extra upper beam set pre-tooled, swap in under 90 s, magnetic quick lock helps.
Another shop in Ajman, more boutique, stainless splash backs, slower pace, still claims ROI inside 11 months just by moving away from press brakes on tiny parts. Is that bragging, maybe, yet the math checked out.
The market in GCC loves Jorns, Schechtl, CIDAN. Quick snapshot.
| Brand | Model | Bend length | Sheet cap. | Speed feel | Price band |
|---|---|---|---|---|---|
| Erbend | MFC 3215 | 3200 mm | 1.5 mm | snappy | mid |
| Schechtl | MAKO 310 | 3100 mm | 1.25 mm | smooth | high |
| CIDAN | FORMA 32 | 3200 mm | 2 mm | moderate | high |
| Jorns | JB 200 | 3200 mm | 1.5 mm | slower | high |
Erbend lands in the sweet spot, faster than Jorns on thin gauge, cheaper than CIDAN, stiffer than Schechtl when you load full length parts. Anyone needing thicker than 1.5 mm will jump to the 3220 variant, story for another day.
MFC family spans 3212, 3215, 3220, 4015. Same body, longer beams or beefier motors. The 3212 caps at 1.25 mm steel, handy for decorative steel. The 3220 throws a 5.5 kW motor, eats 2 mm mild steel yet costs roughly 18 % more weight. Logical ladder, pick what you actually bend daily.
Small HVAC contractors, elevator cabin workshops, kiosk fabricators. They like that the machine fits under a regular 5 m crane and pulls less than 15 A on a three phase 400 V feed. Bigger corporations keep it as a second op line, freeing their huge press brakes for heavy plates.
Before jumping into bullets let me note, nothing theoretical here, just phone calls I keep getting.
The list ends, yet minds keep ticking, easier health and safety audits when no high tonnage press brake around.
Not perfect. The factory foot switch cable is short, I yank an extension almost every install. Oil heater optional, but in AC cooled halls it is fine. All said, the MFC 3215 walks a steady line between affordability and professional output, so enterprises from Abu Dhabi free zones to Fujairah fishing box makers keep signing POs.
In the grand scheme, choose it if you bend long thin parts every single day and you hate losing accuracy after lunch. Skip it if you hammer 2 mm stainless, the frame will flex, go one model up.
Last line, bare and simple, get a folder that works as hard as your crew, go home earlier, that is the whole point.
