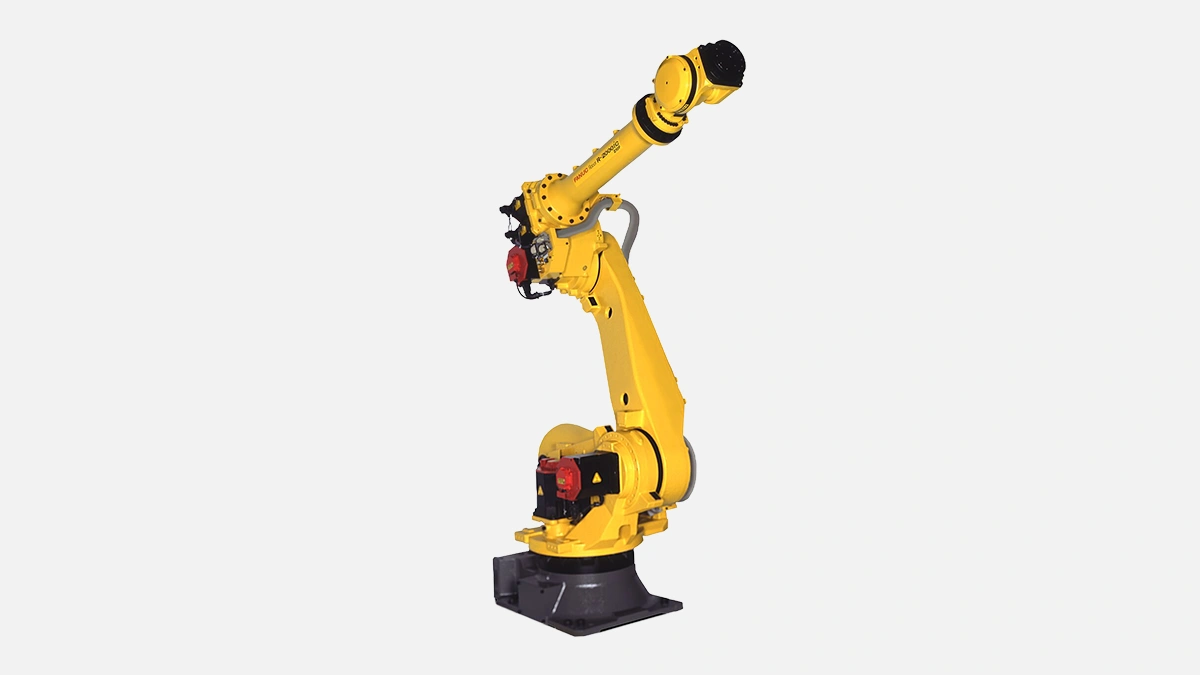

FANUC – R-2000 Series

Short thought. Big orange arm. Moves like it has caffeine. Then, without warning, you realise the thing is quietly handling 210 kg cast iron blanks all day and does not even break a sweat. I blink, try to guess how many bearings hide in there, lose count, shrug.

Brand background

FANUC has been shipping yellow robots since 1974, more than 750 000 units in the field, roughly 100 different robot families, and the R-2000 line is the workhorse, released in the late 90s, revised twice, now on the iC generation. When people in Sharjah say robot, chances are they picture this exact silhouette.

Mechanical core

The arm carries up to 210 kg at full stretch of 2655 mm, six axes, hollow wrist, cables tucked inside so nothing snags on sheet stacks. Gearboxes are FANUC’s own RV cycloids, the same layout used on the earlier iB but with thicker output shafts. Repeatability sits at ±0.05 mm, not metrology lab level, good enough for palletising cylinder heads or loading turning centers.

Before we dive into the inevitable comparison game a small detour: I spent an afternoon next to an R-2000iC/165F unloading a Doosan Puma. The operator, Ahmed, swears the joint 4 motors barely warm up even at 18-hour shifts, and he only touches the teach pendant when a new part number shows up. End of story, back to specs.

Performance table

Below is the sheet I usually throw at plant managers who want numbers, not stories.

Note how axis 4 and 6 climb over 700 deg per second, that is why the wrist never looks slow even when babysitting a fiber-laser cutting cell.

Two short remarks before moving on. First, the big J3 stroke makes it easier to dip under conveyors without lifting the base on a pedestal. Second, full range on J6 lets you keep the gripper hoses straight, less downtime.

Daily use cases

• Loading and unloading horizontal machining centers that chew through stainless flanges
• Palletising finished valves into stillages two meters high
• Dual-station spot welding inside automotive jigs

Why do shops in Abu Dhabi like this model? Heat and dust are brutal in outdoor yards near the docks, yet the wrist carries an IP67 tag, so steam, grit, coolant splash, survives all that. You wash it with a pressure hose, wipe, move on.

Integration quirks

I get asked a lot about the R-30iB Plus cabinet. The answer is simple, you need 400 V three-phase, fuse it at 50 A per robot, earth the baseplate, plug in the teach pendant. The rest is software. FANUC’s iRPickTool, iRVision, DCS safety package are licensed options, no hidden fees later, just check the sticker before customs clears the crate at Jebel Ali.

Comparison with rivals

Short, then long.
ABB IRB 6700? Heavier payload at 235 kg, similar reach, but the base frame tips the scales at nearly 2 t which is overkill for most UAE shops paying gold for every square meter of floor space.
KUKA KR 210 R2700? Slightly longer reach, repeatability ±0.06 mm, but grease intervals shorter, meaning more weekend shutdowns.
Yaskawa MH225? Nice spec sheet, yet spares take ages to arrive through dealers in Dubai, nobody has patience for that.
So the R-2000 wins on weight-to-payload ratio and local spare parts stocked in FANUC Middle East’s warehouse. End of comparison.

Inside the series

R-2000iC/165F and R-2000iC/210F share the arm casting, only the wrist motors change. You lose 45 kg payload but shed 70 kg off robot mass, handy when the floor plate is thin. The /220U variant flips upside-down for overhead mounting above press lines, good trick to reclaim floor area.

Good and not so good list

• Strong wrist reducers, no drift when gripping eccentric loads
• Familiar TP programming, your crew trained on an old LR Mate picks it up in a day
• Spare part pool in UAE, no air freight drama
• Downsides exist, obviously. The standard cable set is PVC, it cracks in direct sun so buy the PUR jacket kit if the cell stands near a loading dock.
• Another gripe, the base casting has only two M20 earthing points, sometimes hard to reach once bolted inside a tight enclosure.

Fragile ego moment. Some claim robots kill jobs. Reality check, in Ras Al Khaimah one R-2000 line actually saved a crew of welders, reassigned them to inspection instead of letting them inhale fumes, nobody got fired, everybody happier.

Maintenance snapshot

Clean lubrication every 5000 h, change fan filters every 3000 h, back up SRAM weekly. The supplied grease is Molywhite RE00, don’t swap for random NLGI2, axis 2 bearings hate that.

Integration table: I/O overview

Again, the point is simple, you can drop this robot into a Siemens or Rockwell plant without protocol gymnastics.

Why UAE workshops pick it

Dust tolerance. Temperature rating up to 45 °C continuous. Support line in Dubai that actually answers at 08:00 on Sundays. And a footprint smaller than a pallet truck, which matters when your fab hall is jammed with laser cutters.

Closing thoughts

I could list more numbers yet the take away is down to three words, reliable steel muscles. If your spindle time matters, if the forklift hardly stops, the R-2000 fits. Big enough for molds, fast enough for sheet packs. People buy it, run it, forget about it, and that silent consistency is the real selling point.
