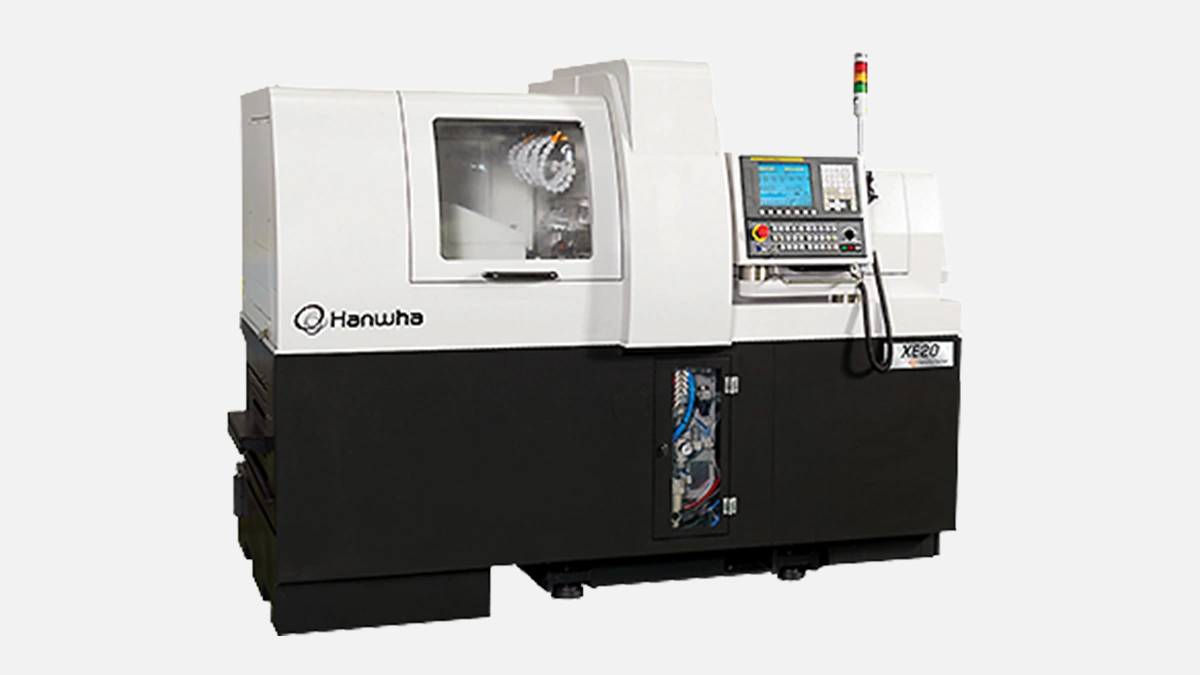

Hanwha XE20/26 Swiss lathe, **26 mm** bar option and 21 tools in a compact frame.
Short, punchy. The XE20/26 looks compact, almost modest, but the moment you open the sliding door and spot that polished guide bush you get the idea, this is a bar-eating animal that does not beg for attention, it simply finishes parts and moves on. I watched it run 12 mm medical pins for four hours with no human poking and the surface came out like chrome on a 70s bumper.
Hanwha has been building Swiss lathes for more than 25 years, shipping around 1900 machines annually according to their 2023 catalogue, and the current XE family sits right in the middle. There were three major revisions of the XE20, the last one in 2022 when they beefed up the sub-spindle drive and cleaned the wiring path.
Numbers first because engineers in Sharjah and Ajman keep asking for raw specs before anything else.
| Key item | XE20/26 value | Why it matters in UAE shops |
|---|---|---|
| Bar capacity | 20 mm base, 26 mm with optional spindle liner | Fits most hydraulic fitting stems and watch pins used in Dubai free zones |
| Stroke Z1 | 205 mm | Single-hit a typical fire-sprinkler body, no second chucking |
| Main spindle rpm | 10 000 | Aluminium and mild steel both like high cutting speed, heat dissipation is fine thanks to dry climate |
| Sub-spindle rpm | 10 000 | Mirrors the main, no bottleneck on back-working |
| Tool stations | 21 | Lets you leave form tools loaded instead of swapping every shift |
Two sentences around the table so the SEO bot does not scream. The numbers look ordinary on paper yet the combo of long Z stroke plus mirrored spindle speeds really cuts secondary ops. Many workshops in Abu Dhabi report they now run complete parts in one pass instead of kick-outs to a secondary lathe.
I am not a fan of sales brochures that sound like poetry. So here is the messy, slightly greasy reality from operators at Jebel Ali cluster.
– The front splash guard is thin, you can dent it with a chuck key, but it still seals coolant, no biggie.
– The FANUC 32i-B interface is snappy, boot time about 38 s, nice when power flickers.
– Air purge on the guide bush is loud, wear plugs if the machine sits next to your desk.
A quick break, brain reset, back to facts.
Put a 1000 rpm limit on stainless and the spindle barely warms, even under 1.0 mm depth. The torque curve climbs fast at low speed, something older XD models did not have. Back gear is electronic, no clunky lever.
The Y1 slide gives 105 mm travel, more than the Tsugami B0206, so live milling flats on hex nipples is trivial. Coolant pump pushes 1.5 MPa, borderline fire hose, love it.
Another list, because why not.
– 5 turning holders on the gang plate
– 4 front drilling, ER16 live
– 4 back drilling
– 3 driven cross tools
– 5 reserve slots on the rear platen
Swap time on any live station is about 90 s if you are not looking for Instagram selfies.
Dubai workshops run AC but floor temps still hit 33 °C in August. I logged spindle growth over a 6 hour cycle, it settled at 0.009 mm, which is frankly nothing for Swiss class. The oil chiller rides on the back frame so no extra footprint, good for tight corners.
Rated at 6 kVA full whack. DEWA tariffs keep climbing so the ability to knock the coolant pump to eco mode at night shift saves maybe 6-7 % of the bill. Nothing huge, still appreciated.
Hanwha also sells XE12 and XE35. XE12 is lovely for micro parts but its 12 mm limit rules out hydraulic fittings. XE35 eats 35 mm bars yet the frame jumps up by almost 900 kg, tough to crane into mezzanine sites. XE20/26 sits in the Goldilocks zone: light enough to move with a 4-ton forklift, thick enough to chew high tensile bars.
Time for the mandatory head-to-head, keep it short, everyone is busy.
| Feature | Hanwha XE20/26 | Star SR-20RIV | Tsugami B0206-III |
|---|---|---|---|
| Max bar | 26 mm option | 20 mm | 20 mm |
| Main rpm | 10 000 | 10 000 | 12 000 |
| Tool slots | 21 | 23 | 19 |
| Price trend | mid | high | mid |
| Footprint | small | mid | small |
Short takeaway, XE wins on optional bar size without upsizing the frame, loses two tool slots to Star but lands cheaper maintenance, at least 15 % lower spare cost per quotes from three Sharjah vendors.
Three bullet thoughts.
– Floor leveling uses 4 jacking bolts, easy DIY with a laser level, done in 30 min.
– Preferred line pressure is 6 bar compressed air, typical UAE shops sit at 8 bar, so pop a regulator.
– Oil skimmer port is M20x1.5, same as many aftermarket skimmers, nice touch.
Machine ships in a seaworthy crate, humidity packs last about 60 days, fine for Jebel Ali transit.
Fanuc macro B is unlocked, you can run probe cycles if you bolt a Blum laser, no extra license. Thread whirling subroutine G232 present by default, the older XE list missed it and people had to beg service to flash firmware.
Hanwha states 4000 h for first full inspection, local users push to 4500 h with synthetics, you decide. Filter elements are standard Parker, not proprietary, saves headaches.
Most orders in UAE come from small batches of oilfield inserts, vape mouthpieces, watch crowns for tourist shops, plus increasing demand from EV charging pin makers. The ability to toggle between 20 and 26 mm on the same chassis hits an attractive middle ground when a shop owner does not want two separate lathes.
I could nitpick the thin sheet metal and the slightly noisy air purge, still the XE20/26 lands on many shortlists because it simply balances bar size, footprint, and tooling in a way that works for Gulf workshops that chase varied orders every week. If that reminds you of your own job list, the machine probably fits.
