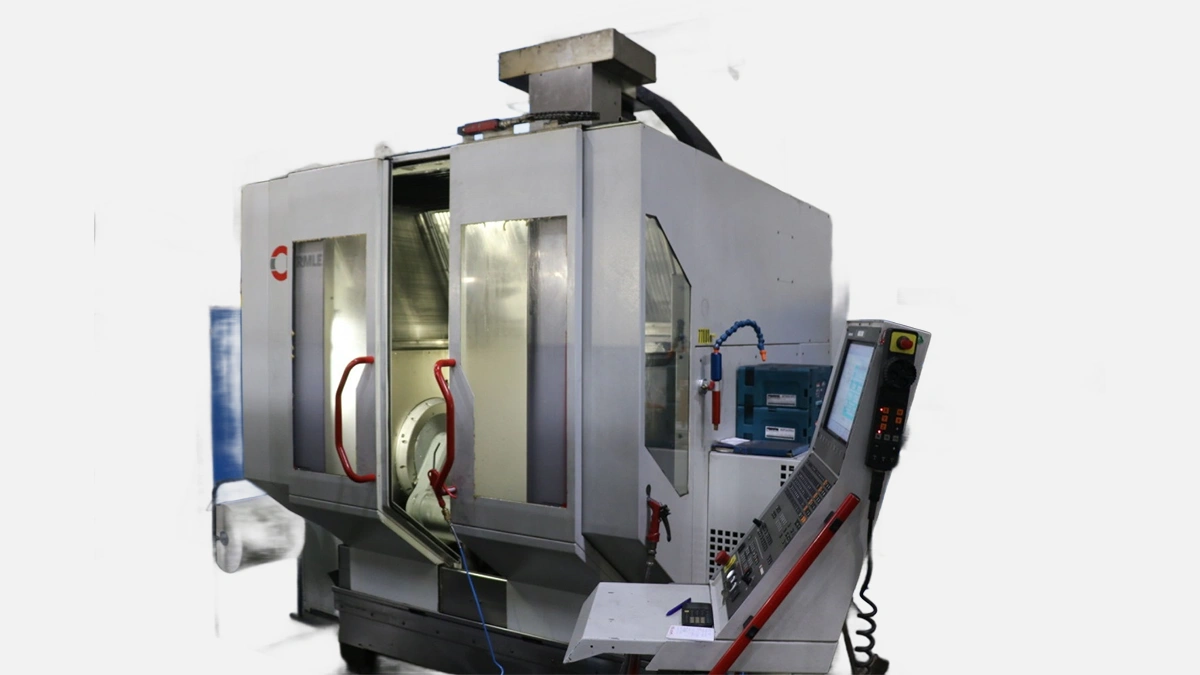

Hermle C 40 U, stiff 5-axis gantry, 850 × 700 × 500 mm strokes, ideal for mixed-batch UAE shops.
Short phrase, almost a whisper. Then a breath and a quick confession, I saw the C 40 U for the first time on the shop floor in Sharjah, oil smell in the air, a clatter of carbide cutters, and thought, fine, another mill. Crazy how fast the opinion flipped.
Now the dry part creeps in, but, oddly, you might like it. Linear travels step up to 850 x 700 x 500 mm. The table is a rotary trunnion, diameter 650 mm, swing comfortably past the orthogonal, giving full five sided reach without risky overhang.
Before digging deeper a quick table, because numbers live better inside cells than inside my head.
| Parameter | Figure |
|---|---|
| X axis travel | 850 mm |
| Y axis travel | 700 mm |
| Z axis travel | 500 mm |
| Max spindle speed | 18 000 rpm |
| Spindle power (S6 40 %) | 29 kW |
| Rapid traverse | 60 m min |
| Max workpiece Ø × H | 650 × 500 mm |
| Payload on table | 600 kg |
| Tool magazine | 40 pockets, extendable |
| Machine weight | 11 500 kg |
Tables stare back at you, brutal and calm. You glance once, memory sticks, job done. Still, rows do not tell how the cast iron bed, fork style A axis and C rotary resist the ugly harmonics you meet when the insert is dull and the tolerance is tight. They also skip the detail that Hermle keeps the Y saddle inside the portal, so chips fall away from the linear rails instead of piling on top. Small, but when you run 8000 hours per year, that matters.
Cutting feels different on this machine, a sort of muted hum rather than the hysterical soprano you get from lighter frames. Pull the spindle to 12 000 rpm on Ti-6Al-4V, 10 mm end mill, radial 20 percent, depth 2D, and the load meter stays green. Yes, tool life is still tool life, but the platform does not amplify chatter, and that buys minutes, maybe hours, every shift.
Two quick bullets because bullet points are sticky in memory. Mind, I will not let them stand naked, so here comes the first list after the scene has been set.
Notice, three dots, done, but I cannot leave them alone, so another comment slips in. Operators in Dubai Al Quoz site said the conveyor hardly jams, even with gummy 6082 aluminum, which by the way is a real test, not a lab trick.
TNC 640 sits on a swing arm, tactile buttons, bright screen, nothing revolutionary, just works. Macro cycles for 5-axis roughing are already there, no extra licenses. A friend tried the same code on an older DMU 60, he had to tweak post times twice because the DMG had slightly slower look ahead. Here the Hermle sprinted through.
Hermle started in Gosheim 1938, first clocks, then mills, now roughly 1800 machines each year across 12 core models, the C series carries most of the load. The C 40 U showed up around 2004, got refreshed drives in 2012, spindle upgrade in 2018, and the base casting has barely changed, proof the geometry worked from the start.
Climate is not just small talk. High humidity during August nights in Abu Dhabi workshops corrodes unprotected rails in a blink. Hermle throws a closed, pressurized cabinet around the ballscrews, adds desiccant packs as standard, and the guys who run triple shifts say backlash checks stay inside 4 µm for at least two years.
Grid stability is decent in the Emirates, still, voltage sag during simultaneous axis decel can happen, so the integrated DC link buffering inside the iTNC platform is not luxury, it is a shield.
Time to poke comparisons, bluntly.
Makino DA300 is lighter, rapid is higher, but the pallet size maxes at 450 mm, so large compressor impellers do not fit. Okuma MU-4000V owns thermal control, yet spindle only gives 22 kW peak. DMG MORI DMU 65 eVo has similar envelope, price climbs once you add speedMASTER spindle. The C 40 U slips in the middle, but brings the stiffer gantry and the easier Heidenhain user base for Gulf Region.
Picture a ladder. On the left C 32 U, on the right C 42 U. The 32 travels 650 in X, the 42 jumps to 1000. Weight follows. The 40 sits snug in between, sweet zone for aerospace ribs, die inserts, valve bodies. Pick the 32 when the shop runs mostly 7075 plates, pick the 42 when turbine casings hit 800 mm. For a mixed jobbook the 40 is the safe middle.
Tool magazines start at 40, you can bolt on the ZM 162 rack, but be warned, door clearance shrinks. Some shops bypass and install an external partner robot that feeds tools at night. Works, but keep backup sensors, desert dust wreaks havoc on optical readers if you forget filters.
Another bullet set, because maintenance crew love checklists.
Wrapping lines around that list, there is a pattern, if the service happens on time, bearings glide longer, simple but often ignored when production manager chases deadlines.
A metal job shop in Jebel Ali Free Zone swapped two aged verticals for one C 40 U, cycle on a hydraulic manifold dropped from 11 hours to 4.3 because setups plunged from four to one and surface passes allowed higher chip load due to stability. Quote files show monthly OT cost fell by 18 percent inside first quarter. Real numbers, not brochure poetry.
Honesty alert, every frame has edges. The machine height is 3120 mm, container stuffing becomes tricky. Spindle nose to table min distance sits at 150 mm, deep cavity molds need extended tooling, that bites into rigidity. Also, the base price does not include tool probe, you add it or manually touch off, which in 5-axis is a pain.
End of the day buyers look for three levers, consistent accuracy, manageable upkeep, resale value. Hermle ticks all three often enough that used C 40 U units disappear within weeks on Gulf marketplaces.
Not a miracle box, just a strongly built five axis mill that shrugs off heat and keeps the math simple. That combination pulls attention from precision job shops, aircraft tier twos, even jewelry mold makers who crave fine surfacing.
