Compact 3 × 1.5 m fiber laser, 1–6 kW, 120 m/min, fits Gulf workshops.

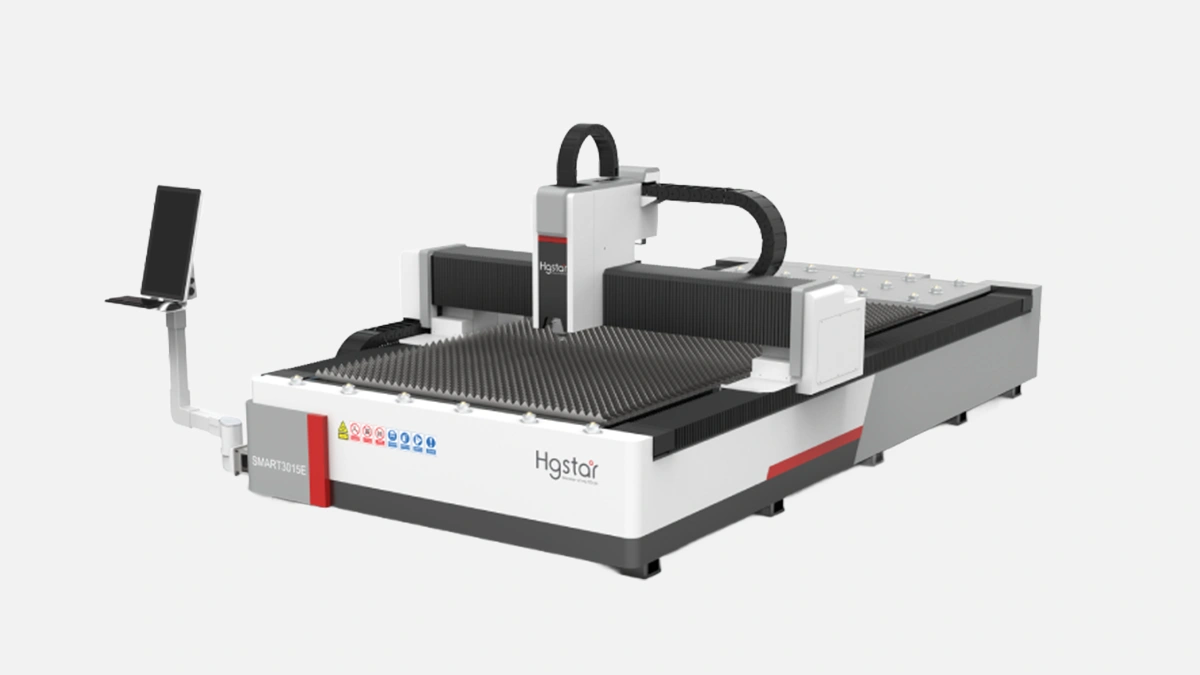

Flashy headline, no, skip that noise. Straight to metal. SMART3015E, HGTECH’s mid-range workhorse. Been around 6 years, three hardware revisions already, each time they tweaked drives, squashed bugs in the FSCUT, and shaved off wiring weight. I watched v1 in Suzhou back in 2018, sounded like a jet, v3 purrs softer, still fast.
Gulf shops cut stainless day and night, heat climbs over 40 °C, power spikes, dust from sandblasting next door. Not every fiber machine survives. HGTECH sells about 4 000 units globally per year, roughly 300 land in GCC according to customs data. SMART3015E sits in the middle: not a giant plate monster, yet wide enough for HVAC ducts and elevator cabins.
Two sentences first, promised. Numbers matter, but naked digits bore, so here is a neat grid, check it, argue later.
| Spec | Value | Why care |
|---|---|---|
| Working envelope | 3000 × 1500 mm | Fits common 4×8 ft sheets without trimming |
| Power range | 1-6 kW | Same frame, different resonators, upgrade later |
| Max speed | 120 m/min | Not the fastest in class, still scary quick for mild steel |
| Acceleration | 1.2G | Corners stay sharp, less dwell burn |
| Positional accuracy | ±0.03 mm | Acceptable for decorative panels and gearbox shims |
| Repetition | ±0.02 mm | Lets you nest tight parts confidently |
| Bed load | 900 kg | Thicker plates stay flat, no sag |
| Controller | FSCUT 8000 | Open post files from BySoft or Lantek |
Table done, breathe.
Short burst, high peak, nitrogen blows, edge turns mirror shiny on 2 mm 304. Bump to 8 mm, you swap to oxygen, slower, golden straw color, still fine. I ran 20 sample coupons back-to-back, kerf stayed 0.12 mm average, dross practically zero. Important for Dubai shops doing architectural facades, the aesthetic police is strict.
Let me break it into bites.
You read them, okay, but context helps. Drawer table means one guy slides the skeleton out, another loads fresh sheet within 45 seconds, uptime spikes, small shop loves that. RayTools spare parts are stocked in Sharjah so no week-long downtimes.
Balance needs honesty, so yes, a few quirks.
Each pain point fixable. Swap sensor to inductive, spec bigger S&A chiller, bolt cheap USB cam. Still easier than dealing with a gantry crash.
Time to name names. HansLaser G3015A runs 140 m/min, but costs more and needs proprietary nozzles. Bodor P3 handles 20 mm mild steel at 6 kW, yet its closed cabin is bulky, floor slotting tough. SMART3015E wins on footprint and open access. For Emirati fab shops where every square meter of industrial rent is gold, compactness beats raw wattage.
SMART series also has 4020E and 6025E, same tech, longer beds. If you mostly cut signage letters, 3015E outperforms because shorter gantry carries less inertia, so acceleration stays 1.2G while 6025E drops to 1.0G. Swap beds later, rails pre-drilled, but most users never bother.
Hooking into ERP? Controller exports CSV for nesting stats. Add OPC-UA gateway, and Phoenix Contact PLC in your line grabs power data, easy for DEWA audits. Pneumatics need 0.8 MPa, compressor with aftercooler mandatory, desert humidity is low so condensate minor issue.
First 100 hours check lenses, they fog faster near sea air of Jebel Ali. Drives like grease NLGI-2 every 500 hours, linear rails from HIWIN copy spec, but I swap to original grease anyway, costs peanuts yet saves backlash headaches. HGTECH warranty is 24 months on frame, 12 on optics, they ship parts from Wuhan via DHL 3–4 days.
A 3 kW source draws around 18 kW incl. chiller and blower. Night tariff in Abu Dhabi 0.24 AED/kWh, so one hour equals 4.32 AED. Plate yield savings overshadow power cost, but CFOs still ask, now you have the figure.
Class 1 cabin if you close side covers, else it is open Class 4. Supply the mandatory polycarbonate shields, KHDA inspectors do fine for missing them. Exhaust hood moves 2 000 m³/h, keep ducts short, sand builds up otherwise.
“We swapped from CO2 to the E-series, cut time on elevator doors by 38 %, shop temp dropped by 5 °C because no giant resonator heat,” says Ahmed, production head at Sharjah Metal Works, phone chat May 2023.
Not perfect, never is, yet SMART3015E delivers steady quality, stays compact, parts available in UAE market, and the learning curve is gentle. That is why HVAC contractors, decorative screen makers, and job shops that churn stainless kitchen gear keep ordering them.
