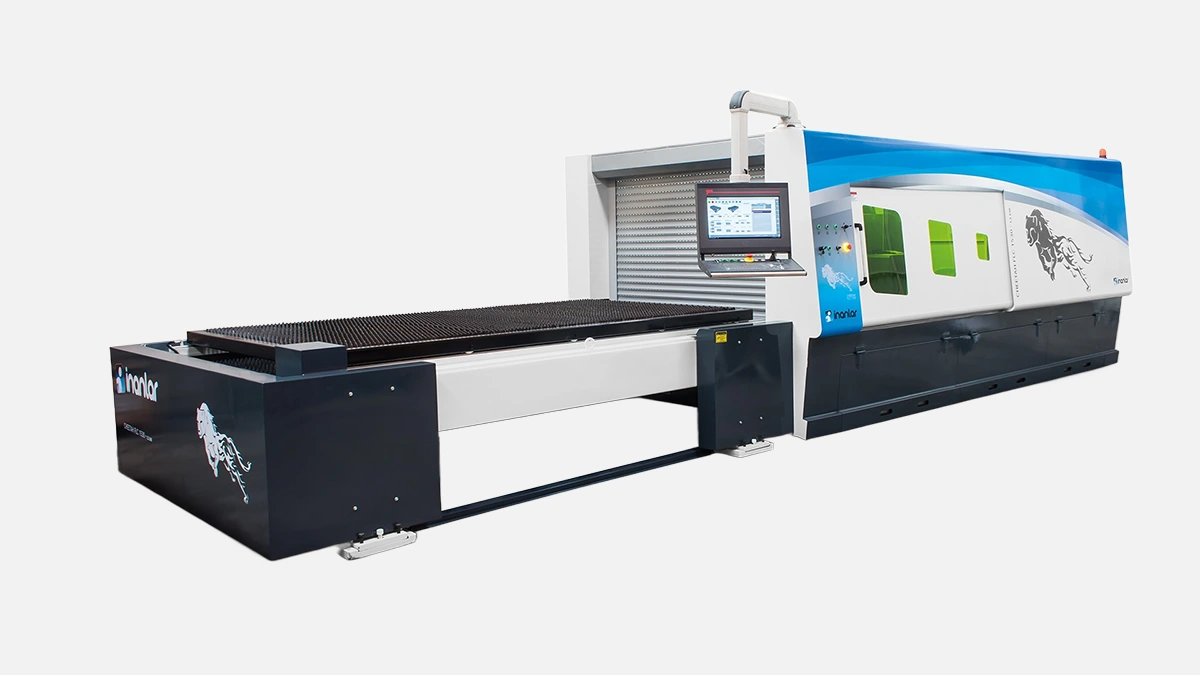

Inanlar – CNC Fiber Laser Cutting Machine

Steel sheet slides in, brilliant red light flares for half a blink, part pops out. That is the vibe when you first walk past an Inanlar CNC Fiber Laser on a noisy shopfloor in Sharjah. Somebody once told me the machine behaves like a caffeinated plotter, only it slices 12 mm stainless in one pass, so yeah, not your desktop toy.

Brand context

Inanlar is Turkish, family owned since 1950. They started with mechanical shears, then hydraulic press brakes in the 80s, shipped their first fibre laser around 2014 after three prototype iterations. Today the factory just outside Bursa pushes out roughly 1500 machines per year, with about 160 of them being fibre lasers. This particular line has seen 4 hardware revisions, mostly drivetrain tweaks and a switch to Beckhoff motion last year.

Why Middle East shops even care

Oil tanks, décor screens, elevator cabins, name it, UAE workshops run shorter series yet demand impeccable edge. CO₂ units drink mirrors and gas, plasma burns too wide, waterjet drags on thin sheet. Fibre laser hits the sweet spot. I asked a supervisor in Ras Al Khaimah, he shrugged, said power tariffs bite less now, so swapping two ageing plasma beds for one Inanlar made more sense than nursing consumables every week.

Core figures you keep repeating to the boss

• 3 kW default source
• 140 m per minute rapid, fine for nested parts
• ±0.03 mm absolute accuracy across the full 3000 × 1500 envelope

Stick those on the whiteboard, every budget meeting goes smoother.

Mechanical bits nobody reads in brochures yet matter

The bed is welded steel, stress relieved twice, then milled in one setup, so the linear rails sit flat. Twin rack and pinion on X, single ball screw on Z. The drives are Yaskawa 750 W on gantry, paired with 3.0 kW for X carriage. What you notice day two is the lack of squeal, the motion feels buttery because Beckhoff filters jitters at 1 kHz loop.

Table of cut capability

Before you ask, yes, nitrogen cut chart sits in the control, but here is a condensed cheat sheet I keep on my phone.

Numbers are conservative. With fresh nozzles and 20 bar nitrogen you squeeze extra 10 percent.

A friend tried 6 kW source, bumped the stainless window to 25 mm, but most Gulf shops do not hit that often, so 3 kW stays the sweet spot on ROI spreadsheets.

Control workflow, real talk

First day the operator will grumble about a new interface. Cyptcut icons looked comfy, Beckhoff feels more grey. Give them 2 hours, muscle memory kicks in, arrow keys jog, F3 toggles piercing. USB land is forbidden, you push programs through Ethernet, otherwise IT screams. Nesting wise I still use Lantek because built-in composer is too basic once parts exceed 300 variants per sheet.

Bullet list of pleasant surprises

• Auto nozzle centring runs in 15 seconds, no dial gauge needed
• Magnetic crash head saves the lens every time the sheet pops, saved us roughly 5000 AED in 2022
• Internal camera streams to the office, handy when the production manager pretends he is on the floor

Let me drop a not so pleasant thing: the chiller emits an annoying hum, stick it outside or everyone wears headphones.

Comparing usual suspects

Trumpf TruLaser 1030 lures with brand clout, yet its entry package caps speed at 120 m/min and the spare parts invoice comes in euro. Bystronic BySmart sits closer, albeit the base model lacks the dual pallet shuttle. Inanlar bundles the shuttle by default, changeover in 27 seconds measured, not brochure fantasy. Prima Power Laser Genius has superb servo profile but shipping a Finnish machine to Dubai drags lead time past 26 weeks. Inanlar sits at roughly 8 weeks door to door.

Quick comparison table

Edge quality? Frankly all three output mirror finish on 8 mm stainless, difference lies in cost per hour and aftersales hustle.

Inside the series

Inanlar tags their fibre lasers CFL-3015, CFL-4020 and CFL-6020. Same gantry DNA, just longer rails. If you mostly cut elevator doors you stick to 3015. Architectural cladding guys stretch to 4020 for those 4.0 meter panels. Performance gap? Negligible, the heavier bed on bigger frames actually damps vibration better.

Maintenance chunks

• Replace protective lens every 250 hours or when the cut kerf colours shift
• Clean focus lens with IPA, do not breathe on it, those smudges cost 220 AED each
• Grease racks monthly, one cartridge lasts 6 months

The spare kit from Inanlar includes 3 lenses, 10 nozzles, 1 bellows. Keep it locked, people walk off with nozzles like pens.

Hidden costs and how we dodged them

Electrical demand sits at 45 kVA peak, lower than our old 6 kW CO₂ yet Dubai Electricity still charges capacity, so negotiate tariff before signing PO. Nitrogen generation on site beats cylinders once you cross 400 kg per week, we installed a PSA unit that paid itself in 14 months.

Real jobs it nailed

I saw this machine chew through 6 mm aluminium perforated screens for a hotel in Fujairah, 1800 square metres, delivered in 9 working days, no rework. Another shop punched out gearbox flanges, 12 mm mild steel, tolerances within 0.05 mm, zero burr, straight to powder coat.

What the operator whispered

He likes that the head floats over micro joints, arc sensors tweak Z within 5 ms. He hates the HMI buzzer, loud as a car alarm. We stuck tape over it, problem solved.

Wrap up gains

Inanlar CNC Fiber Laser sits in that pragmatic sweet spot, fast enough, sturdy, parts easy to source from Turkey, service crew already stationed near Jebel Ali, callout under 4 hours. Shops cutting below 16 mm mild steel all day will squeeze the most juice.

Quick advantages

• Lower energy draw than CO₂ alternatives, roughly 30 percent less per part
• Pallet shuttle bundled, boosts uptime to 92 percent in our log
• Turkish factory makes consumables cheap, lens pack costs roughly 40 percent of German brands

And that is why many fabrication plants from Ajman décor shops to Abu Dhabi HVAC frame builders signed on. They need parts out the door, not brand stickers on walls.
