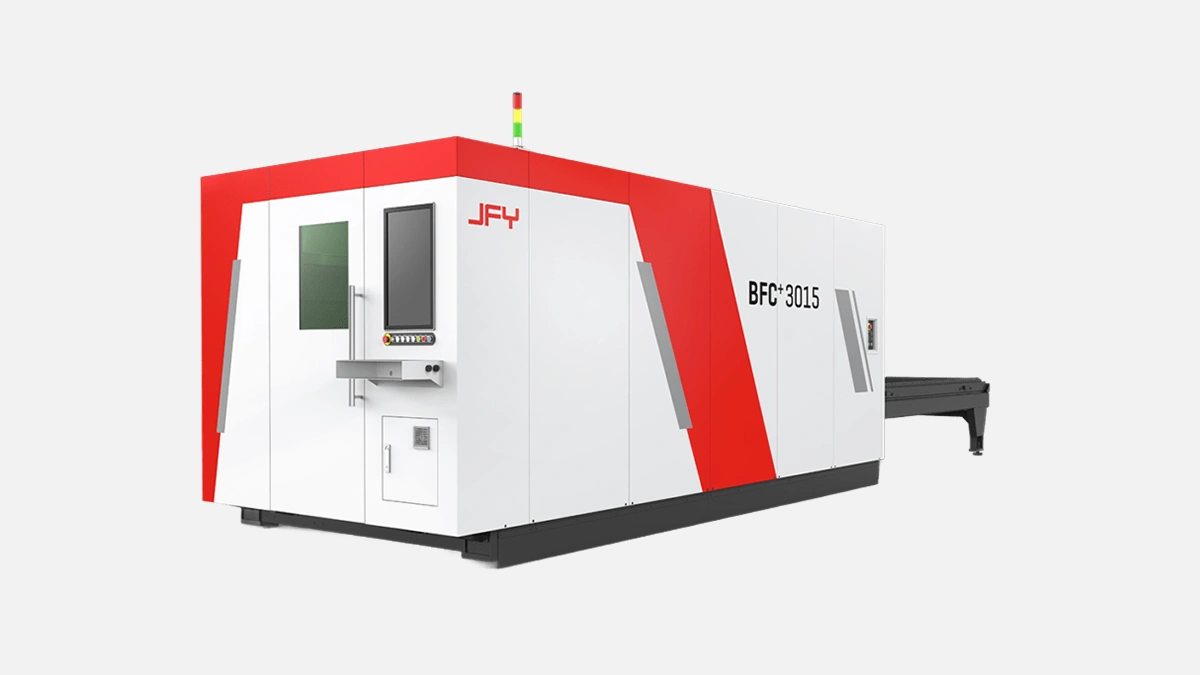

JFY – BFC+ Series Fiber Laser Cutting Machine

Short lines first. 25 years on the market, JFY keeps planting metal chips all over workshops and nobody really shouts about it, they just work. I walk into a plant near Sharjah, see a dusty BFC3015+, somebody leans on the console, coffee in hand, sheet after sheet flies out, no drama. Next minute the operator tells me the pallet swap clocks 24 seconds, I blink, he grins, story done.

Then a long sentence, breath in, because the weird thing about the BFC+ is how calmly it handles everyday stainless at 3 mm and then jumps straight to 25 mm mild steel without asking for a spa day, the motion system chewing through nested parts while the extraction keeps the fumes low enough so you can still smell the coolant from the press brake nearby and yes, that smell is oddly comforting.

Back to short. No nonsense. Ready.

Hard numbers

People in the Gulf do not buy stories, they buy digits on paper and hours saved on the clock, so here goes. Two sentences to warm up, just so the spreadsheet crowd keeps their browsers open.

The table finishes, but the conversation does not. Someone will say, fine, any Chinese brand can print a brochure, what about real floor data. I throw back an anecdote, Dubai contract shop, two shifts, they logged 11 400 cutting hours in the first year, only one fiber delivery line change and that was scheduled. Enough said.

Material range

A couple of lines before bullets. UAE buyers rarely stick to one alloy, yesterday it is A36, tomorrow duplex, day after that aluminum tread plate for elevator cabins. The BFC+ copes.

• Mild steel up to 25 mm with oxygen, edge straight, burr minimal if the nozzle is clean.
• Stainless up to 20 mm with nitrogen, the finish shiny enough to skip grinding on visible parts.
• Aluminum up to 16 mm using mixed gas, pierce time under 2 s on 6 kW head.

Bullets end, but let me add, the optional air cutting kit shaves gas cost by roughly 60 percent on thin gauge stainless, not my words, pulled from the factory energy sheet.

Table mechanics

Two sentences first. Swapping tables is boring until it suddenly is not, because downtime is the hidden salary thief. JFY sticks a rack and pinion shuttle under the bed, direct servo, so the blank moves out in 9 seconds, the fresh one slides in, the extra seconds go to sensor confirmation, total 24 as noted.

• Standard dual pallet keeps the operator away from burn zones, less safety drama, more parts.
• Optional automated loader stacks up to 3 tons of sheet and feeds the line without human touch, works fine even with humid Gulf mornings.

I pause. Think. The loader is pricey, but anyone sending mixed thickness jobs to the machine will make the money back before Ramadan lights go up.

UAE shop floor

Heat, dust, voltage swings, all normal. The BFC+ carries a sealed optic chain, water chiller specced at 43 °C ambient, I saw it running at 46 in Ajman, fans full blast, no alarms. Another line, edge case maybe, but good to know. Drive motors tolerate 10 percent mains fluctuation, still nail repeatability.

Inside series

This is not a lone wolf, it is a family. JFY ships BFC3015+, BFC4020+, BFC6025+, work zones jump from 1.5 m to 2.5 m in Y, power heads the same. Bigger bed sacrifices a bit of acceleration, around 1.2 g on the 6025, nobody notices once the sheet is on.

Competitor check

Quick compare, no flowery prose.

• Bodor P-Series: similar power window, faster rapids at 170 m/min, but table change near 30 s and price tag higher, local service network thinner in GCC.
• Bystronic ByStar Fiber: Swiss build quality, sure, yet the 4 kW entry model costs almost twice, spare parts routed through Europe, lead time eats projects.
• HSG G-4020E: good value, but accuracy spec sits at ±0.08 mm/m, minor if you cut guard plates, critical if you want precision brackets.

JFY BFC+ lands in the middle, affordable, still keeps ±0.05, that is why sheet-metal subcontractors go for it when quoting elevators or data-cabinet frames.

Service handling

Two lines. Consumables are standard, lenses 100 mm collimator, 150 mm focus, stock in Dubai and Riyadh. Firmware updates drop over USB, no cloud drama, restart takes under 3 minutes. Maintenance list fits on one page.

Weekly tasks

Before you scream checklist, read a bit.

• Clean nozzle every shift, takes 30 s with brass brush.
• Check chiller filters, blow with air if dust cake thicker than 2 mm.
• Grease linear rails, NLGI-2 grease, 5 pumps per block.

Stop bullets, breathe. Monthly schedule longer but still human-size, you will not need a degree in astrophysics.

Final take

I ramble. The machine is not perfect, nothing is. It vibrates a bit on corner exits above 1.3 g, the sheet clamps could be smoother, but for shops chasing parts rather than Instagram likes, the BFC+ hits a sweet spot. Add the fact JFY pumps out about 3 000 fiber units a year, spares are never stuck in customs. Most buyers are contract fabricators, HVAC frame shops, elevator cabin builders, anyone living on mixed short-run orders. They sign, they cut, they sleep.
