Kern Micro HD packs 42k-rpm, 0.3 µm accuracy, 5-axis in a 2.3×1.9 m footprint.

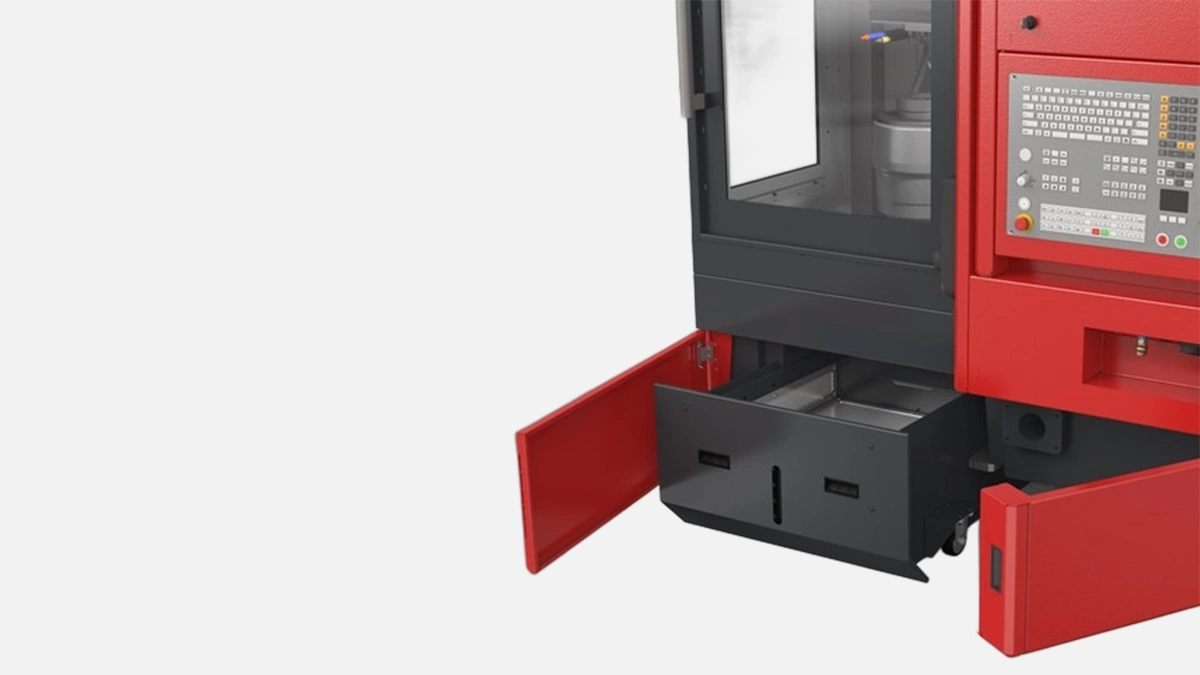

Small look. Big promise. Kern Micro HD sits in the corner of the shop, barely bigger than a delivery pallet, yet every operator that walks by slows down. Because parts coming out of it look unreal, mirror-like walls, edges that cut skin. I stared, I almost touched the freshly milled titanium dental plate, then the quality guy shouted, leave it, fingerprints matter.
The spec sheet claims 350 by 220 by 250 mm on the linear axes. Sounds modest, right. It is, but remember, this machine never pretended to hog out chassis parts for oil rigs. It is a detail freak. The rotary tilt table swings ±200° on the A axis and 360° on C, so in one clamp you hit every face. Fine, good. The immediate question in Dubai and Sharjah workshops is simple, can it clear sticky summer heat. We will talk thermal later.
Before numbers drown you, a quick reality check. I spent two days at a jewellery subcontractor in Jebel Ali who runs three older Kern Micro models. They run 24/7, coolant at 20 °C, room at 22. After the first shift the Micro HD was still dialled, less than 1 µm drift on a 100 mm test bar. The operator laughed, said bigger brands promise it, this one delivers, no drama.
Below is the sheet I keep pinned to the wall. Double checked against Kern brochures from 2023 and a call with their German hotline.
| Item | Value |
|---|---|
| Linear X / Y / Z travel | 350 / 220 / 250 mm |
| Max part Ø × height | 350 mm × 250 mm |
| Spindle speed | 42 000 rpm (option 50 k) |
| Continuous power (S1) | 15 kW HSK 40 |
| Rapid traverse | 42 m/min |
| Acceleration | 14 m/s² |
| Positioning accuracy P | 0.3 µm according ISO 230-2 |
| Tool magazine | 30 pockets, chain style |
| Footprint | 2.3 m × 1.9 m × 2.4 m H |
| Net weight | 4 500 kg |
The table looks sterile. Real life is messier. You need stable floors, chilled coolant, a bit of love.
Heat in Ras Al Khaimah hits 48 °C. A normal VMC cries. Kern answered with a closed liquid circuit snaking around casting, ballscrews, even the spindle nose. It keeps everything within ±0.1 K. The coolant chiller unit looks like a mini fridge, it hums, yes, but no louder than the aircon. I saw it log ambient spikes and simply compensate, the probing log proved it.
Two minutes on the shop floor and you notice small details, so let me fire them quickly.
See, three points, but each one matters in Gulf dust conditions.
Kern sells a side-loading robot cell, a compact one, but most UAE shops already own an Erowa or a System 3R robot. No sweat, the Micro HD features a back door with macro holes pre-drilled, you bolt whatever arm you fancy. The control, Heidenhain TNC 640, ships with the robot option unlocked, so no license headache.
A friend at a medical implant startup in Dubai Science Park runs a carousel with 96 pallets. They swap in 15 s flat. Night shift is now one guy on patrol, he jokes that the machine drinks less coffee than he does.
You cut dental abutments, micro molds, watch bridges, aerospace fuel nozzles, copper EDM electrodes. The machine does not care what alloy you feed. I machined Inconel 718 at 30 m/min with a 2 mm end mill, only 5 µm radial wear after 40 minutes. For PEEK it floats, chips look like snow.
Pause, different angle, what does the CFO see.
Money talk done, let us compare siblings.
The Micro family has three flavors: Micro Vario, Micro Pro, Micro HD. Vario is the entry, Pro is the generalist, HD is the precision beast. Vario tops at 32 000 rpm, Pro at 40 000 rpm, HD at 42 000 rpm and boasts better thermal armor. Tool magazine on Vario is 24 pockets, Pro and HD share 30. If you chase sub-micron accuracy, HD is the only pick, the others float around 1 µm P.
I hate big tables, so I keep it short, straight.
| Feature | Kern Micro HD | DMG Mori DMU 40 eVo | Makino iQ300 |
|---|---|---|---|
| Spindle speed | 42 k rpm | 24 k rpm | 45 k rpm |
| Accuracy P | 0.3 µm | 1.0 µm | 0.5 µm |
| Footprint | 2.3×1.9 m | 4.2×3.6 m | 3.1×2.8 m |
| UAE Service | Remote plus 2 loc techs | Local hub | Remote only |
Why do I pick those two competitors. Because they show up in every tender. The table says enough, smaller machine, tighter accuracy. DMG sells volume, Makino nails surface finish, but Kern squeezes both into the smallest footprint. Choose your poison.
Heidenhain TNC 640, plain. Every programmer in Dubai College of Engineering learns it in semester three. Post processors for Autodesk Fusion 360 and hyperMILL exist out of the box. No need to pay a kid in Germany to tweak macros. Kernel restart feature is gold, I broke a 1 mm cutter mid pass, jogged up, changed tool, restarted from block 1432, part survived.
The HD comes with a vibration sensor on the spindle housing. It predicts tool breakage roughly 300 ms before the end mill snaps. Saved me two PCBN cutters already. Also, the door glass is triple-layer polycarbonate, good if you mill ceramic cores that explode.
You will need deionized water topping for the chiller every 4 weeks in humid season, otherwise conductivity climbs and the PLC screams. Linear motor slides ask for inspection at 1 500 hour marks, a tech in Al Quoz charges one bottle of Karak Tea for the trip, not kidding.
I could rattle specs all night, but the machine speaks with parts. Small footprint, heavy granite, proper thermal loop, linear motors. Not magic, solid engineering. Medical guys, watchmakers, micro mold shops, they pay for precision because clients pay them back. If your part tolerance sits above ±5 µm, maybe buy something cheaper. If tighter, cue Micro HD.
Kern, the brand, exists since 1962, pumps out roughly 400 machines per year across four series, with three iterations of the HD model so far. Oldest HD I know still runs in Munich, 17 years, original spindle, that says enough.
Good, rant over.
