400 mm pallet HMC, 14 000 rpm spindle, chip-to-chip 2.4 s, proven for UAE aluminum and steel work.

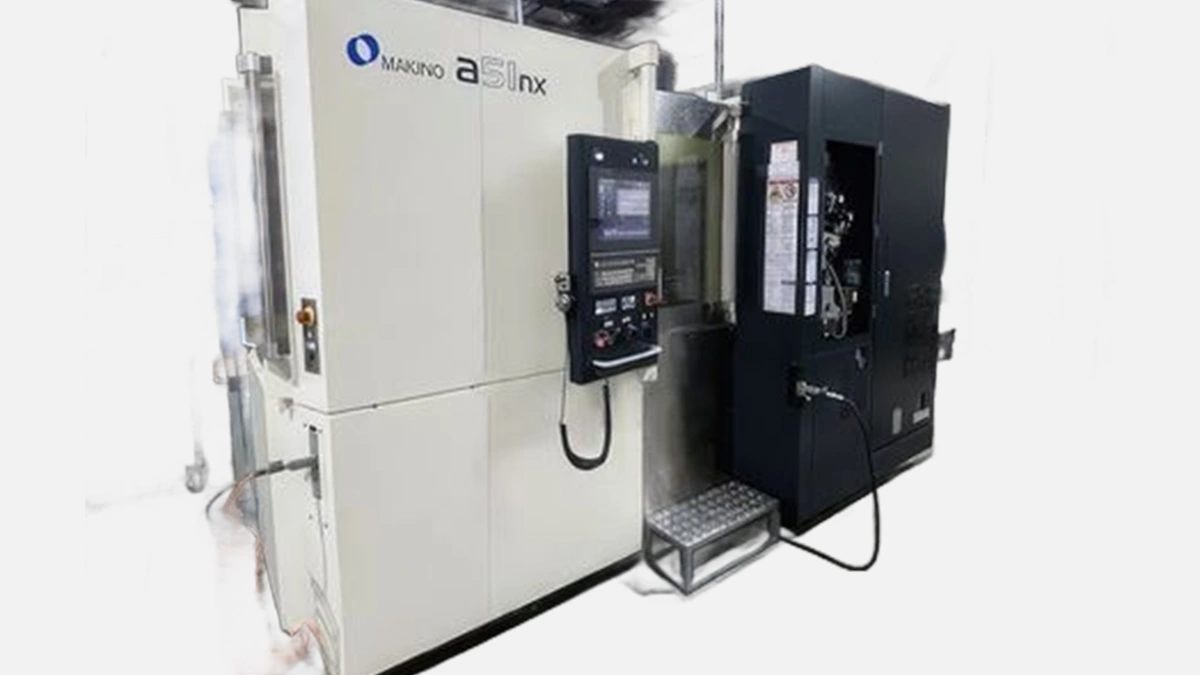

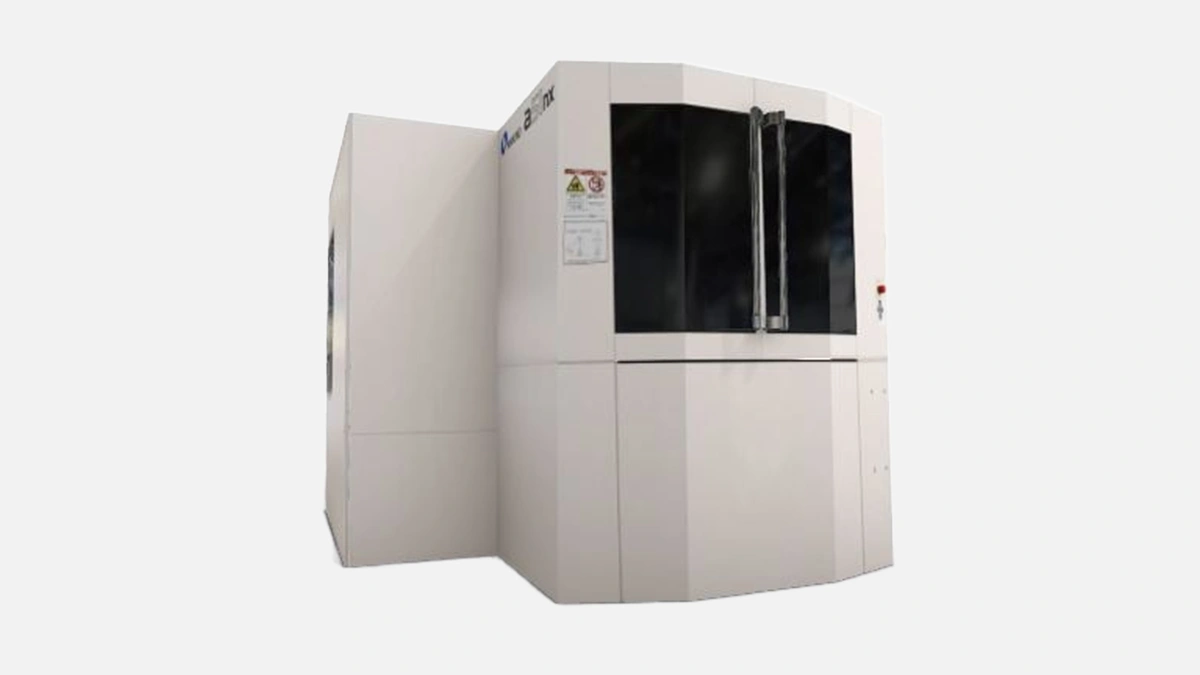

The a51nx sits low, nothing flashy, just a dark grey box with Makino letters. You walk around it, you hear the faint hum from the coolant chiller, you notice the thick cast iron columns. Then it clicks in your head, wait, this is the 400 mm pallet machine that so many job shops in Sharjah keep talking about.
The base is one piece, heavily ribbed. Makino has been using that basic casting form for about 20 years, tweaking wall thickness yet keeping the coolant channels wide. No thin ribs that crack after thermal shock. Operators on Practical Machinist forum keep telling, you can crash it lightly and it stays square. Not an invitation, just an observation. The columns are pulled back, spindle centerline hangs over the pallet only when needed. That cuts vibration on heavy steel roughing, especially when you use long end mills.
Yes, I sound excited, give me a break.
Makino quotes linear scale feedback on all linear axes as standard. Travel numbers in the brochure look tiny until you remember it is a 400 mm HMC, not a huge five axis gantry. 560 × 640 × 640 mm is still enough to drop a Land Cruiser brake caliper fixture inside with space left for probing. Rapids hit 60 m/min. Some users measure real life 58.2 m/min on fully warmed ballscrews. Good enough.
Below is the boring yet necessary digest. Stare at it, because most sales arguments orbit around these digits.
| Item | Value |
|---|---|
| Pallet size | 400 × 400 mm |
| Max workpiece dia | Ø630 mm |
| Max workpiece height | 900 mm |
| Max load per pallet | 400 kg |
| Spindle speed | 14 000 rpm (HSK-A63) |
| Torque 1 min | 300 Nm |
| Continuous power | 30 kW |
| ATC capacity | 60 standard, 219 option |
| Chip to chip | 2.4 s |
| Control | Professional 6 (Fanuc based) |
Nothing mystical here. Just numbers, still they tell a story: the machine is skewed toward high metal removal in aluminum yet does not choke on 4140 steel.
The baseline is the 14 000 rpm core-cooled cartridge. It has ceramic bearings, forced oil-air mist, and a thermal ring that talks to the controller. If you cut mostly Inconel you jump to the 20 000 rpm, smaller dia bearings, less torque. Shops doing tough cast iron brake bodies in Abu Dhabi keep the 14K, switch to twin-row face mills, let the torque do the job.
Professional 6 looks like a Fanuc 31i wearing Makino skin. Shortcut keys for pallet schedule, giant loop-abort button, conversational pocket cycle if you hate CAM tweaks at 2 am. The iProsensor probing macro is pre-loaded, no hidden license fees.
Big talking point for UAE contract shops: lights-out. The a51nx pallet changer is twin APC, front load, rear unload. But Makino left space on the right side for M-Cylinder systems. You can bolt a 12-pallet Makino MMC2 cell later. I watched Al Quoz guys do it in 48 hours without scraping new foundations. That matters when rent on industrial land is crazy.
Coolant tank 380 L, chips fall through 40 mm gap grate, auger takes them to the rear. You do not babysit it every hour. Oil skimmer built in. Real life in Dubai summer, spindle thermal drift stays within 3 µm over 10 hours, recorded by a client who checks with a heat gun because he is paranoid.
I grabbed three names that always pop up when someone googles 400 mm HMC:
Each has fans. Yet the a51nx pulls ahead on two things. First, chip to chip 2.4 s while others float at 3.2-3.5 s. Second, Makino staggers the spindle centerline deeper into the column so the Z saddle is shorter, which trims overhang, you feel it in surface finish on long pockets. One area where DMG MORI NHX wins is factory coolant through spindle 70 bar while Makino stops at 50 bar unless you buy an aftermarket booster. Trade offs, like always.
Makino throws the letter n and x on many models. In the 400 mm class they had a51, then a51n, now a51nx. The current one picked up 560 mm X travel and the stronger APC clamp. If you jump to the a61nx you keep the same footprint yet gain 630 mm pallets, heavier ballscrews, and a 19 000 rpm option. So, if your parts cross 25 kg each, stop dreaming, go a61nx. For aero fittings and die cast trimming, the a51nx is sweet spot.
Electric tariff in the emirates nudges you to keep spindles cutting. The dual pallet keeps uptime above 85 % even on small lot work. Spare parts route through Makino Asia, average inbound lead time 3-4 days via DXB. And the machine fits a 40 ft container without special frame, handy given Jebel Ali port fees jump for over-height loads.
I watched a team in Ras Al Khaimah switch fixtures six times per shift, yet the machine stayed under cycle due to hidden time. While the spindle drills, operator loads raw bar stock on the second pallet. Swap, hit green, repeat. Tool life logs show they went from 210 parts per end mill to 235 after tuning Makino S-Curve acceleration. Not huge on paper, but over a year that covers another coolant chiller.
Before you wire cash think about this.
All boring but skip one and you burn days during install.
Makino has been shipping HMCs since 1981, pushes roughly 2 200 units per year across five plants. The a51nx is on its third revision, the casting stayed, the electronics jumped forward. What you buy today is a mature, well documented, heavily supported machine. UAE buyers lean on it for aluminum manifolds, hydraulic blocks, sometimes high mix aerospace brackets. It delivers steady cycle times, does not nag for tuning, and keeps the resale value because second hand traders in Ajman hunt for Makino instead of random brands.
Bottom line. Solid build, fast pallet changer, service reachable. That combo explains why medium sized workshops, automotive supply lines, and contract machinists put the a51nx on their shortlist.
