5-axis high-speed Mikron MILL X 600 U, 650×600×500 mm travels, 42000 rpm, 2.5 µm accuracy for complex parts.

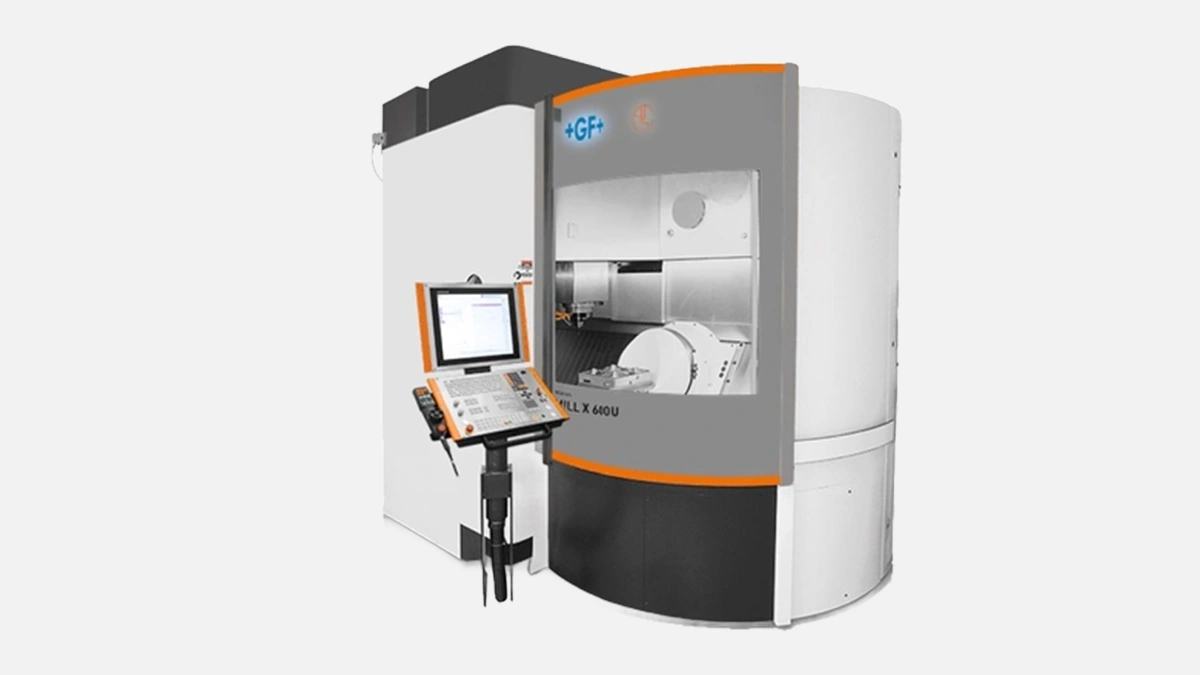

Fast note, no fluff. The moment you walk up to the Mikron MILL X 600 U you feel the vibe, compact yet loud in its own silent way. GF Machining Solutions has been around for more than 150 years, the Mikron badge itself pushes past 100. I have seen three generations of this exact model, each time the name shifts a bit, the cast iron stays rock solid.
Hold on, let me drop the raw dimensions before I forget. X is 650 mm, Y 600, Z 500, that triad sits in my head like a postcode. Someone once asked if the U in the name means unicorn, no, it is the 5-axis tilt table hiding inside.
Hot shop, dry air, sometimes the dust sneaks in through the loading dock. Polymer-concrete base refuses to twist, even when the thermometer screams 45 °C in July. I left the machine running overnight at a subcontract house in Sharjah, came back, zero shift was still under 3 µm. The local Haas next door needed a warmup cycle and a prayer.
People keep staring at the rotary platter, only 400 mm across, but the clamping load touches 250 kg if you bolt parts smart. I have parked a stainless pump housing on it, 220 kg with fixture, no sweat.
Before we go deeper, chew on a quick table. The boring lecture comes later.
| Axis | Travel (mm) | Rapids (m/min) | Acceleration (g) |
|---|---|---|---|
| X | 650 | 80 | 1.7 |
| Y | 600 | 80 | 1.7 |
| Z | 500 | 80 | 1.7 |
Numbers on a grid look neat, yet they do not show how the thing screeches from zero to full feed in a blink.
Step Tec supplies the heart, rated 42 000 rpm, 13.5 kW continuous, torque curve decent enough to rough alloy steel if you play with chip load. You can swap to a 30 000 rpm high-torque unit, I tried that on Inconel 718 impellers, part looked like it came from EDM, almost.
The chiller loop sits on the left, compressor on the roof, keeps delta T inside 0.1 °C in a properly sealed plant.
I always get lost counting pockets. Base build ships with 60 slots, UAE importers push the 120 pocket chain because everyone wants unattended nights. You may bolt a double disk for 215 but that eats floor space, footprint jumps from 2.7×3.1 m to roughly 3.5×3.3.
List looks trivial yet it saves operator brain cells on a humid shift when gloves stick.
Heidenhain TNC 640, same screen you find on MILL P and even some Deckel machines. If you grew up with Fanuc you will complain for a week, then never go back. Dynamic Collision Monitoring stays live while cutting, no need to run dry sim first. That alone spared me a head crash worth 9 000 dollars, sorry, not talking price again.
Inside the X series you meet the smaller 400 U and huge 800 U. Travel grows, accuracy holds. The 400 fits in container workshops, the 800 scares overhead cranes. Speed spec barely changes, all ride on the same linear motor pack. If you only chase micro mould inserts, take the 400, faster trunnion swing. Automotive manifolds, grab the 600 we talk about. Aerospace bracket bigger than your head, the 800 earns its floor spot.
I have switched between a Hermle C 22 U, a DMG Mori DMU 50, and this Mikron, back to back. Let me throw raw impressions while coffee cools.
Take those notes, visit showrooms, judge yourself.
One local medical supplier cuts titanium spine cages. Cycle used to sit at 58 minutes on a Brother Speedio with a 16 000 rpm head. Same G-code on the MILL X 600 U dropped to 34 minutes, surface RA came in under 0.2 micron, no vibro-polish later.
Another tale, aerospace shop in Al Ain, roughs 7075-T6 wheel cores. They feed 10 cubic cm per minute with a 25 mm 5-flute at 28 000 rpm, machine stays inside ±2.5 µm over an 18 hour weekend run. No re-setup on Monday.
Do not overthink. Clean swarf, pop filter, grease tilt axis once per week. Laser calibration once a month if you chase sub 5 micron form. Remote Care module phones GF servers in Biel, Switzerland. When the board lights red at 2 a.m., you get an email, scary first time, later you trust it.
Medical, mold, aerospace, Formula student teams even. Most UAE buyers are job shops feeding oilfield subcontract chains, they love the fact that the machine runs aluminium Monday then stainless Tuesday without babying.
You wanted the gist, fine, here:
I could ramble but my shift buzzer rings. If you need a 5-axis that just does the job in desert heat, this Mikron sits high on the shortlist.
