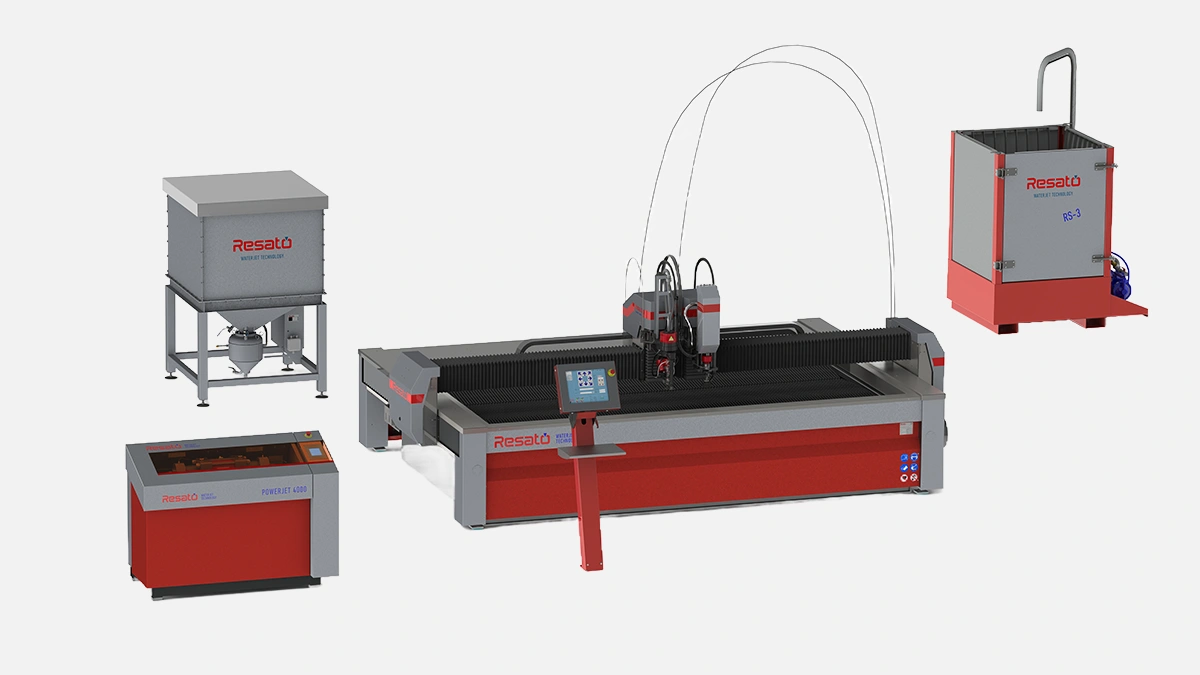

Resato — ACM 3015 Waterjet Cutting Machine

Short intro first. Resato has been building high pressure gear since 1991 and the Dutch guys keep bragging that every single pump is tested at the factory, fine, we will take their word for it, the ACM line sits roughly in the middle of their catalog, not the baby, not the monster. The 3015 tag is literal: 3000 by 1500 mm, perfect for sheet metal outfits that live in that sweet spot between “I only do brackets” and “I need to slice five-meter bridges”.

You walk up to the table, no steam, no sparks, just a steady hiss, a bit hypnotic honestly.

Core numbers in plain sight

Before we get philosophical let us pin the cold facts to the wall, then we will play around them, promise.

The table lives right in the middle of most OAE workshops. Space is premium in Sharjah, right? Nobody loves paying rent for air around a machine, so a compact footprint is a real point.

A friend from Dubai Investments Park keeps shoving pictures into the group chat, he parked the ACM 3015 between a fiber laser and a stack of mild steel inventory, still leaves a corridor wide enough for the forklift, neat.

Cut range and materials

Steel up to 150 mm if you are patient, aluminium behaves like butter, stone tiles for fancy interiors, carbon fiber that smells weird when it gets wet, it all goes in. Abrasive or pure water, switch it on the fly.

• Garnet mesh 80 is the everyday choice, buy in 1 t bags from Fujairah, cheaper freight.
• Pure water head is handy for food grade gasket work, somebody in Ras Al Khaimah is cutting frozen chicken packaging, true story.

See, clean edge, no heat affected zone, the QC guy does not even need to reach for the hardness tester, nice.

Motion package talk

The gantry rides on linear rails, standard class accuracy, nothing esoteric. Ballscrews on Z, rack and pinion on X and Y, a regular recipe that works. Servo motors are Yaskawa, that matters because spare parts in GCC can be overnighted. I had this happen last Ramadan, courier showed up at 22:30, everybody was already hungry, still fitted the drive before Suhoor.

Pump unit nuances

Resato sticks with their trademark green intensifier skid. 4000 bar is the vanilla flavour, you can tick a box and get 6200 bar, though most people in aluminum sign business never need that. From the electrical cabinet a simple Ethernet cable runs to the pump, no fancy fibre, maintenance guy loves that.

Operation cost snapshot

Now money talk but no exact price, agreement. We only touch running cost. Electricity about 0.28 dirham per minute at 37 kW if you are paying commercial DEWA rate. Abrasive, average 8-9 kg per hour on thick stainless, drop to 3 kg on thin alum. Water is nothing, still put a RO unit if your municipal supply is salty.

Why pick waterjet anyway

Not preaching, just listing everyday pain points the machine solves.

• No burr clean up, saves a man hour on the grinder per part.
• Mixed-material stacks, try doing rubber over titanium on a router, good luck.
• Minimal fixturing, magnets or a few clamps, done.

The ACM in particular adds closed tank design, the slats sit a bit lower, splash stays inside, floors stay dry ish.

Comparing peers

Competitors that pop up in UAE tenders are NCM 3020 from China and Omax 55100. Quick contrast:

• NCM gives larger bed 2000 mm in Y but only 3500 bar pump, slower pierce time.
• Omax pumps 4200 bar and has Tilt-A-Jet head, edges almost taper free, price goes north quickly though.
• Resato lands in the middle, pressure decent, bed adequate, parts support clamped on Europe shipping lanes, so transit is shorter than US units.

Inside the ACM family

Resato sells ACM 2010, 3015, 4020, 6030. Same frame, scaled. The 2010 is cute for job shops doing signage. 4020 is 4×2 m, needed for offshore aluminium deck plates. So if you ever outgrow the 3015, training, spare parts, nesting software all carry over, the operator will not feel lost.

Control software bits

IGEMS runs the dance. Feeds and speeds calculators already include UAE standard grades like JIS SS400 and 6082-T6. Post from SolidWorks directly or chuck a DXF, system auto slots tabs, hit start, go make coffee. Remote monitor on your phone works, saw it personally, the widget shows pressure, abrasive level, feed, good for managers who like dashboards.

Daily routine

Open covers, check garnet hopper, check oil level, run warmup. Head to the office, Nest 12 sheets in the queue, press Go. The intensifier hums like a washing machine on spin, safe noise rating with earplugs. End of shift, flush the catcher with city water, zero drama.

Safety, because audits come

Interlocks on gate, light curtains optional. All CE rated. Insurance inspections in Abu Dhabi free zone passed without crazy remarks, they only asked for extra signage in Arabic.

Typical users across UAE

• Architectural facade firms cutting stainless cladding panels for high-rise podiums.
• Oilfield subcontractors shaping thick Duplex 2205 gaskets.
• Universities running composite experiments.

The pattern is clear, anyone scared of heat distortion grabs a waterjet.

Pros and occasional cons

Good stuff first: small footprint, Dutch quality, pump can be pushed to 6000 hour seal life if water is clean, parts manual has QR codes linking to exploded views. Not so great: resin slats need swapping every few months if you cut a lot of brass, the copper dust eats them, also the abrasive sensor sometimes gives false low alarm when humidity spikes, tweak parameter 14.

Consumable logbook

Here is a tiny list colleagues keep taped near the operator panel.

• Orifice 0.25 mm sapphire, lifetime about 150 hours on mixed use.
• Mixing tube 3.8 mm, change at 200 hours.
• HP seals kit every 750 hours unless running over 3800 bar.

Easy to forget those numbers, now you have them.

Summing up

After living with the ACM 3015 for a quarter, shops mention throughput bump of roughly 18% compared with outsource. Not revolutionary, just steady. Contracts with Dubai Metro glass contractor closed because they could promise fast revision loops. That is the value.

Brief advantages

Resato has been on the high pressure market 30+ years, builds about 150 waterjet tables annually, this ACM frame saw 3 iterations since 2016, each revision mostly software and ease of service tweaks. Enterprises that pick it usually run tight lead times and need a dependable, no drama cutter that sips power moderately.

Key takeaways list

• Resato heritage in high pressure tech.
• Compact 3×1.5 m bed fits most city workshops.
• Intuitive IGEMS control saves programming hours.

Enough talk, time to cut metal.
