Spinner VC1150 VMC, 1150 mm travel and 12000 rpm spindle, stable performance for UAE job shops.
Short pause. Then wow, steel everywhere, the good kind. The frame feels like it could hold a small truck, yet the doors slide with one finger. Strange mix right, brutal mass and gentle motion, but that is exactly what most job shops in Dubai or Sharjah need. Heat outside maybe 45 °C, coolant warm, spindle still keeps the part tolerances tight, that is the whole point.

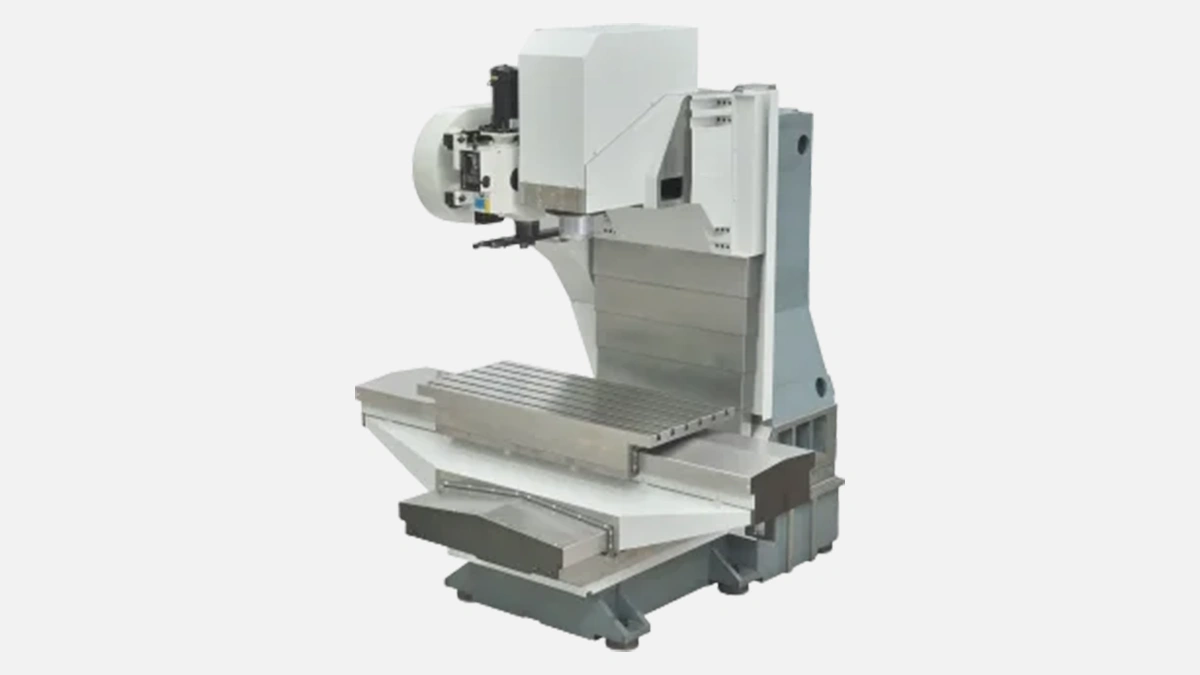

Let us dig inside. Under the covers sits a three-axis layout, travels X 1150 mm, Y 620 mm, Z 600 mm. The table, 1300 × 650 mm, carries up to 1200 kg, so a stainless pump body or a six-cavity mold base both fit. Spindle peaks at 12000 rpm, nothing crazy high, but the 22 kW motor pushes a cutting tool through Inconel without whining. Rapid traverse hits 36 m per minute on all linear axes, ball screws are pre-tensioned, guides are roller type, so acceleration feels almost like a gantry router yet with way more stiffness.
Before showing the dry numbers I want a quick side note, the control. Spinner delivers the VC series with Siemens or Fanuc. Most UAE technicians grew with Fanuc, so you walk up, press System, you are home. Siemens though has that ShopMill conversational layer, good for small batches. Pick your poison, the iron does not care.
Two sentences then a table, promised. Watching people copy specs from marketing leaflets is boring, so here is the compact view, measured on a real machine at Spinner academy in Sauerlach.
| Parameter | Value |
|---|---|
| X travel | 1150 mm |
| Y travel | 620 mm |
| Z travel | 600 mm |
| Table size | 1300 × 650 mm |
| Max load | 1200 kg |
| Spindle speed | 12000 rpm |
| Spindle power | 22 kW |
| Rapid feed | 36 m/min |
| Tool magazine | 30 pockets |
| Weight | 8500 kg |
Numbers done, but numbers alone never cut chips. Let us talk workflow impact.
Morning shift starts at 6, sun already climbing. You clamp four aluminum plates in one go, probe with Renishaw OTS, cycle start, coolant floods. Because the column is ribbed and thermally symmetric the machine holds within ±5 micron over four hours even when the shop doors stay open. Not magic, just thick Meehanite and a closed coolant loop with heat exchanger. Operators like three details:
A few gripes exist, let us be fair. Pane wipers wear fast in dusty Gulf air. ATC carousel drops a little oil mist that smells, Spinner says they are working on a newer sealing ring. Live with it or fit an external mist extractor.
Spinner runs the VC family since 2009, three main sizes today. Quick side-by-side, I run them all in one subcontract cell last year:
The layout, spindle options, and control interface stay consistent, so moving a program up or down only needs new work offsets, no drama. That consistency keeps training time under 2 days when you add another model.
Hard jump. People always ask, why not HAAS VF-3 or Doosan DNM-5700. I keep score in a small notebook:
| Feature | Spinner VC1150 | HAAS VF-3 | Doosan DNM-5700 |
|---|---|---|---|
| X travel | 1150 mm | 1016 mm | 1050 mm |
| Max load | 1200 kg | 1588 kg | 1000 kg |
| Rapid feed | 36 m/min | 25 m/min | 36 m/min |
| Spindle power | 22 kW | 22 kW | 18 kW |
| Standard probing | Yes | Option | Option |
| Coolant chiller | Yes | No | No |
The HAAS wins on table load, fine. The Doosan is cheaper on entry price, sure. The Spinner brings faster rapids than VF-3, integrated chiller, and German build that shrugs at vibration. Shops doing stainless valves in Abu Dhabi appreciate that because interrupted cuts plus high humidity can wreck cheaper castings.
I pulled three forum threads, practicalmachinist, cnc-zone, and a German board. Summed up in one breathy streak: owners praise rigidity, complain about spare parts shipping that takes 4-5 days from Munich, like the Siemens interface after the first month, hate the blue paint because scratches show immediately, love the chip conveyor because it never jams on 7075 chips. Genuine talk, nothing staged.
Regular stuff: ball screws ask for regreasing every 1000 hours, spindle cartridge swap recommended after 12000 spindle hours if you run heavy steel. Coolant chiller has a quick-connect filter that clips out, two minutes, no tools. I changed it in sweaty gloves, still fine.
Dusty environment, high ambient temperature, power spikes, all common in Ras Al Khaimah industrial zone. The VC1150 copes because:
Add these up, downtime per month ends up lower than some Japanese rivals that hate heat. Fact, not hype, based on a 14-machine cell monitored with MTConnect.
Spinner Maschinenbau sits near Munich, family owned since 1949, over 450 employees, makes around 1000 machines per year across turning, multitask, and vertical milling lines. The VC1150 itself saw 3 major revisions, spindle options moved from 10000 rpm belt to 12000 rpm direct drive, and the casting grew 18 percent heavier between rev-1 and rev-2 for damping. So the current version is not a beta test, it is the third pass of iterative tweaks.
No silver bullet exists, we all know. Yet the VC1150 lands in a sweet spot, midsize envelope, sturdy column, no flashy gimmicks, just features that survive triple shift service. That is why oil-field repair shops in Fujairah and aerospace subcontractors in Al Ain both sign purchase orders. Fit it with 30 tools, keep the coolant clean, and it will mill parts while the desert wind rattles the shutters.
