ZEISS — CONTURA CMM

Then a long spiral of thought where I try to remember the very first time I stood next to a ZEISS — CONTURA CMM, the faint hiss from the air bearings mixing with that chilled Emirati workshop air, and I realised the thing was calmly whispering numbers about my aluminium impeller that no caliper could ever dream to touch, and yes, I almost trusted it more than I trust my own torque wrench.

New paragraph, shorter. The brand has been building coordinate machines for 100+ years, pump out roughly 8000 units yearly. CONTURA itself, five or six iterations deep, keeps the core cast-iron bridge while quietly adopting fresher controllers, so every two-three years you see a tweaked version slide into the catalogue.

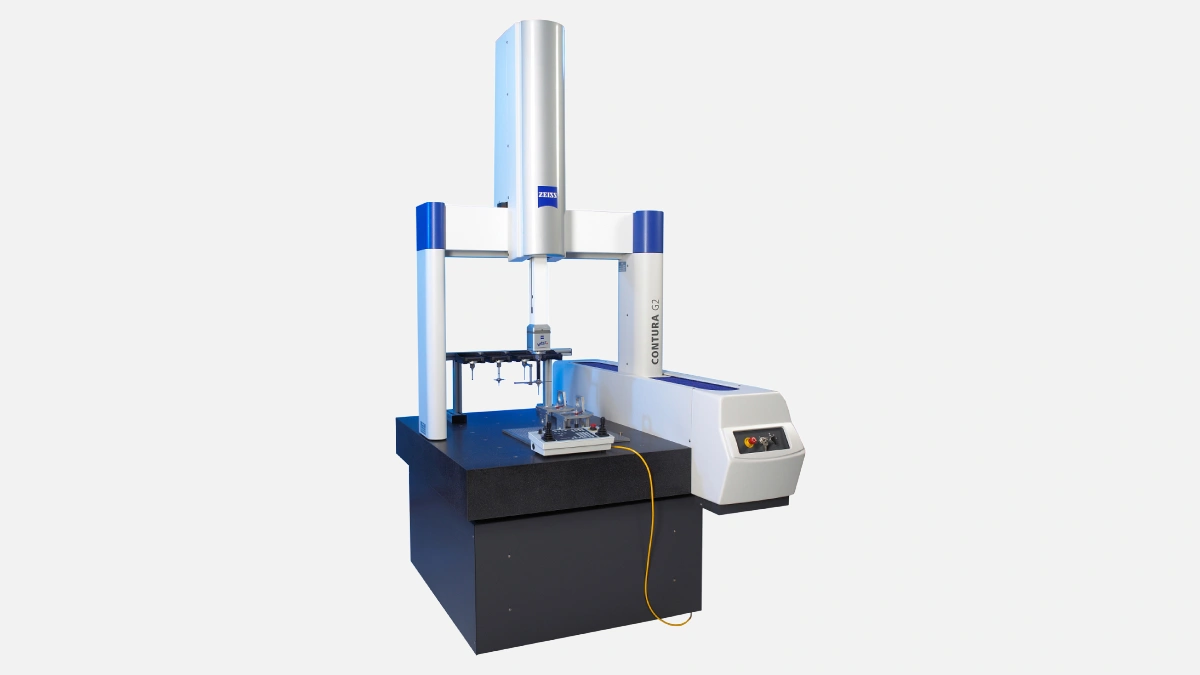

Some basics before we dive too deep. The machine on the spec sheet up top gives you a 700 × 1000 × 600 mm volume. For a pump housing that fits in one hand, that is overkill, but for a gearbox casing from a sand-cast, it is just about right. Error? Figure 1.8 + L/350 µm. I know, numbers on paper look cold, so let me put it differently, an 800 mm diagonal line on your part shows less than 4 µm deviation if you treat the temperature correctly.

I slip, jump to a tangent. UAE shops, especially the ones outside Sharjah free zone, fight heat. Doors open, forklifts zoom, air con fights the desert. CONTURA tolerates 18–26 °C with drift compensation. Push beyond that, accuracy walks away. Simple.

Why should anyone in Dubai fuss over a bridge-type CMM when laser trackers exist, when portable arms look so photogenic in LinkedIn posts? Because repeat runs on gearbox covers at 300 pieces a week shout for throughput, not influencers. A motorised VAST XT gold probe fires 500 points per second in continuous scanning, slices your cycle time down, and unlike an arm it does not ask you to keep your elbow still.

Couple sentences, then a list. But first context. I sat next to an operator last Friday, we changed styli mid-program and still closed the job under seven minutes. What actually made the difference?

• High Z clearance, so the probe reaches the inner groove without tricky repositioning.
• Twin-port rack keeps spare styli ready, saving roughly 40 s per change.
• ZEISS Calypso software spits real GD&T output that your customer’s QA portal gulps without extra macros.

Breather. The glass-ceramic scale system, encased, on compressed air, almost never needs cleaning. People brag, but I have seen only one failure in five years and it was actually the air dryer, not the scale.

Now, a comparison. No table yet, wait. Story first. A purchasing manager popped the classic, Why not Hexagon Global S or Mitutoyo Crysta Apex S, same size, cheaper shipping from Asia. Fair. I pulled up a worksheet, and the numbers looked like this.

Two lines before the table, two lines after, check. And after. Simple observation, CONTURA holds the tightest error spec while pushing heavier castings on the granite table, that alone tipped the buyer when his parts crept beyond 900 kg.

Jump. Weird internal rant. Software licensing drives me mad. Calypso stations do not lock you into a dongle anymore, they moved to floating seats, thank you ZEISS, though the yearly SMA still bites. Hexagon PC-DMIS? Good but pickier with UAE customs for updates. Mitutoyo MCOSMOS? Stuck in past UI, though stable.

Second bullet list brewing. But slap some sentences first. Most problems in newbie shops trace back to airflow. This machine needs 6 bar clean air, ISO 8573-1 class 2 or better, otherwise bearings scratch, friction climbs.

• Install a membrane dryer right at the machine skirt.
• Run 12 mm stainless line, avoid cheap PVC that bakes in the sun.
• Fit a pressure sensor into the PLC, map an alarm to your Andon, less downtime later.

And yes, talk about the series. CONTURA comes in four basic strokes: 7-10-6, 9-12-6, 12-18-10 and 12-24-10. Same frame logic, same controller, you pick the size, capacity scales from 1200 kg to 2000 kg. We ran the mid-size for a year, no regrets but the next audit asked for larger turbine rings, now the 12-18-10 variant is on the wish list, swap with little retraining.

Materials, quick detour. Bridge is ceramic-coated aluminium, low mass, low CTE, speed stays high. Table slab remains granite, honed. Critical because Dubai humidity sometimes spikes, granite shrugs.

Now I contradict myself. Speed is nice, but if your machinists still chase burrs off edges, the whole measurement loop collapses. CONTURA will spot a 5 µm burr and flag it, operators curse, yet that is how you tighten upstream machining processes. I have seen shops record 15 percent scrap reduction once the CMM data flowed back to the CNC offsets. Subjective maybe, stats depend on discipline, I admit.

Heading to practical tips. Create a cell layout with the CMM close to machining but walled off by polycarbonate. Far but near, sounds odd, works. Keep the climate stable inside the cell with a mini split, costs peanuts compared to re-working a batch of 100 turbine blades.

Last section, advantages, mood swings but must end on use cases. UAE oil and gas suppliers dig the capacity, aerospace job shops crave the scanning speed, university labs enjoy multi-sensor packages with optical heads. A small mold maker in Ras Al Khaimah told me his CONTURA saved him from outsourcing CT scans because he nailed the freeform surfaces in house.

Key takeaways

CONTURA blends air cushions, fast probing, and a respectful accuracy envelope that survives Gulf climates if you treat it decently. Not perfect, no machine is, yet the balance works for mid-volume metal part inspection. My advice, test your biggest casting on the demo unit, watch the cycle, decide.
